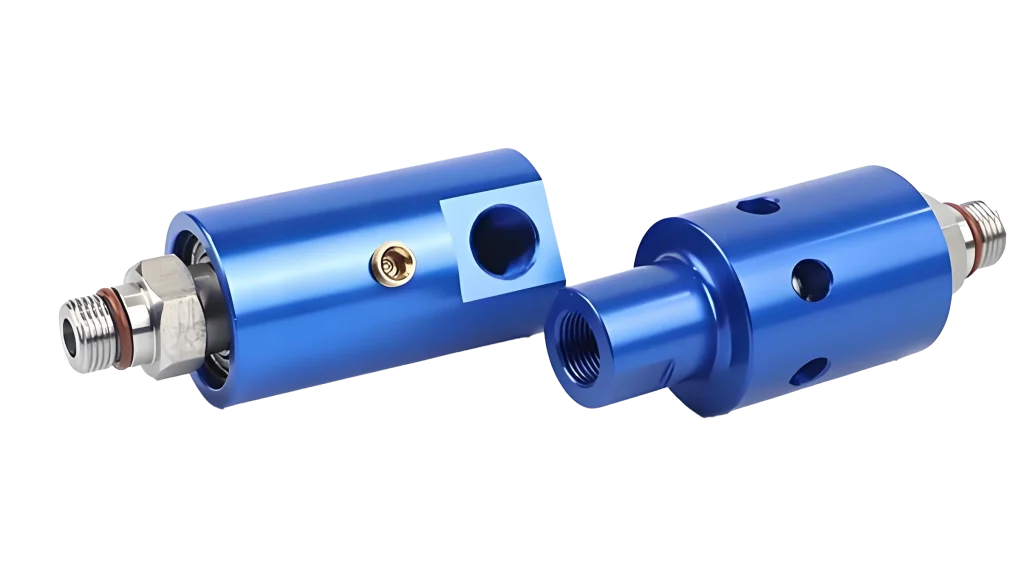

SRJ01-201 rotary joint

The SRJ01-2001 series high-speed rotary joint is a precision fluid sealing component designed specifically for the Through Spring Cooling (TSC) system of CNC machine tool spindle centers. This series of products aims to directly replace the same specification rotary joints of South Korean SKT (Shin Kwang Tech) brand, and are widely used in equipment such as machining centers, CNC lathes, and high-precision milling machines. Its core function is to stably and leak free transport coolant or cutting fluid from fixed pipelines to the rotating spindle during high-speed rotation, in order to achieve efficient cooling and chip removal of the tool, significantly improving machining accuracy, extending tool life, and increasing production efficiency.

Place of Origin: China
Material: Aluminum alloy
Customized processing: Yes
Whether to import: No
Connection method: flange thread
Scope of application: Rotating joints for mechanical engineering
Media: coolant, oil and gas
Pressure: ≤ 100bar
Temperature: 70 ℃
Speed: 20000
Flow rate: 24L/min 80L/min
Non standard customized products are for personal customization. Once produced, returns and exchanges are not supported. Please carefully review or communicate with customer service before placing an order.
If there are special requirements, they can be customized. The delivery time will increase by 3-15 days and the cost will increase by 5% -50%. Most of our basic accessories are standardized, modular, and non-standard customized, which can greatly reduce costs and delivery time.
Single channel, coolant or MQL;
Full flow design, no debris or burr blockage;
Double ABEC7 (ISO P4 grade) angular contact ball bearings;
Balanced mechanical seal, made of silicon carbide (tungsten carbide) material, extends its service life;
Anti corrosion anodized aluminum shell.
