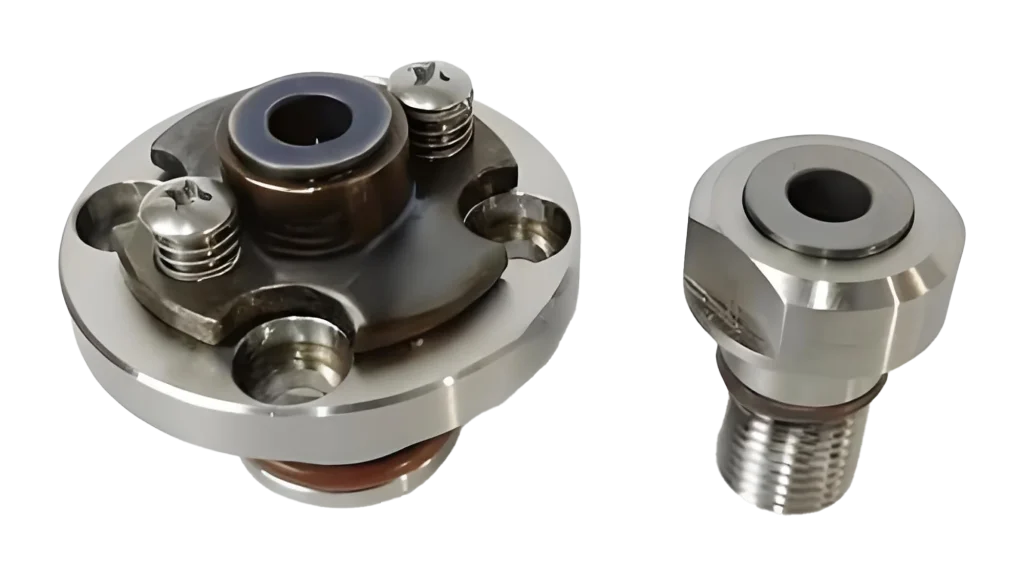

RIX ESX20M-T detachable high-speed rotary joint

The ESX20M-T series is a representative model of RIX miniaturized rotary joints, specially optimized for machine tool spindles with limited space and the need for high-speed operation. Its core feature lies in the design logic of the “detachable” or “non-contact” sealing structure (under specific working conditions), aimed at solving the problem of rapid seal wear in traditional rotary joints under dry friction or low-speed/stop states, while supporting stable operation at extremely high speeds

Place of Origin: China
Type: High speed rotary joint
Customized processing: Yes
Whether to import: No
Connection method: flange thread
Pressure: 0.1~12MPa
Speed: 4000r/min
Temperature: 60 ℃
Media: hydraulic oil, water, coolant
Non standard customized products are for personal customization. Once produced, returns and exchanges are not supported. Please carefully review or communicate with customer service before placing an order.
If there are special requirements, they can be customized. The delivery time will increase by 3-15 days and the cost will increase by 5% -50%. Most of our basic accessories are standardized, modular, and non-standard customized, which can greatly reduce costs and delivery time.
Features:
Miniaturization;
Use M10 rotor (can be combined with spindle miniaturization);
Body material: stainless steel;
The sealing component group is in constant contact, reducing the leakage rate.
