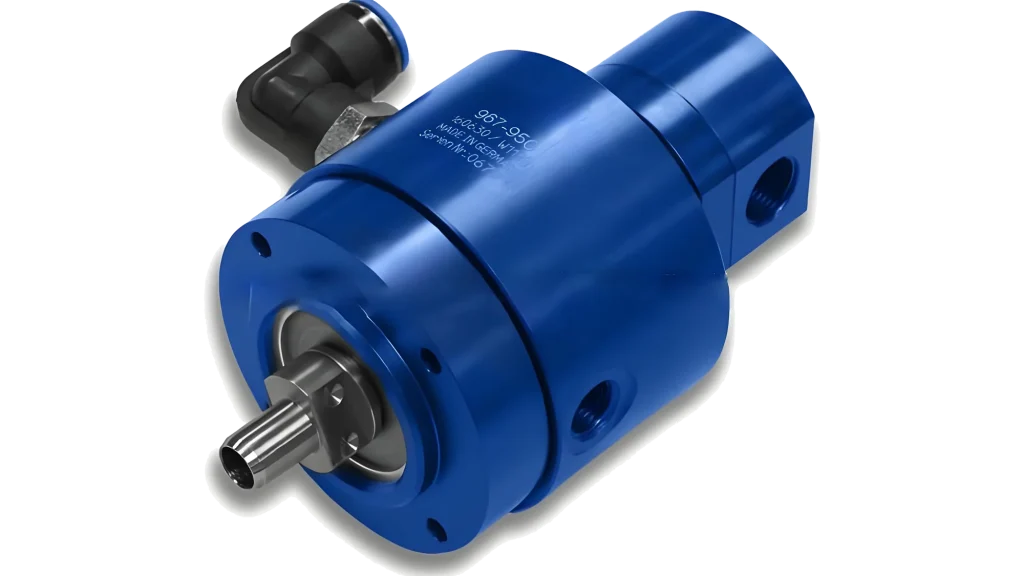

967-950 rotary joint

The 967-950 rotary joint is a high-performance single pass rotary joint designed for efficient and stable transmission of fluid media between rotating equipment and fixed pipelines. As a classic product in the field of industrial fluid dynamic sealing, this model is widely used in working conditions that require continuous transportation of media such as cooling water, thermal oil, steam, or compressed air, thanks to its precise mechanical sealing technology and excellent structural design. Its core advantage lies in its ability to maintain low leakage rate, low friction torque, and long-term operational stability in high-speed rotation and high-pressure environments

Origin: Shandong
Customized processing: Yes
Whether to import: No
Material: Aluminum alloy
Installation method: flange thread
Speed: 15000r/min
Temperature range: -30~80 ℃
Pressure: 12.0MPA
Working medium: hydraulic oil, water, coolant
Closed sealing, automatic line or similar applications;
Full flow design, no debris or burr blockage;
Bearing support and threaded rotor, easy to install;
Deep groove radial ball bearings operate smoothly;
Adopting labyrinth seal and large leakage port to protect ball bearings;
Balanced mechanical seal, made of silicon carbide material, can extend its service life even under harsh conditions;
Anti corrosion anodized aluminum components, replaced with high-pressure resistant rotating seals, capable of withstanding high pressure up to 12MPA;
Suitable for high-speed machine tool spindles and gun drilling (deep hole machining) machines and other equipment.
