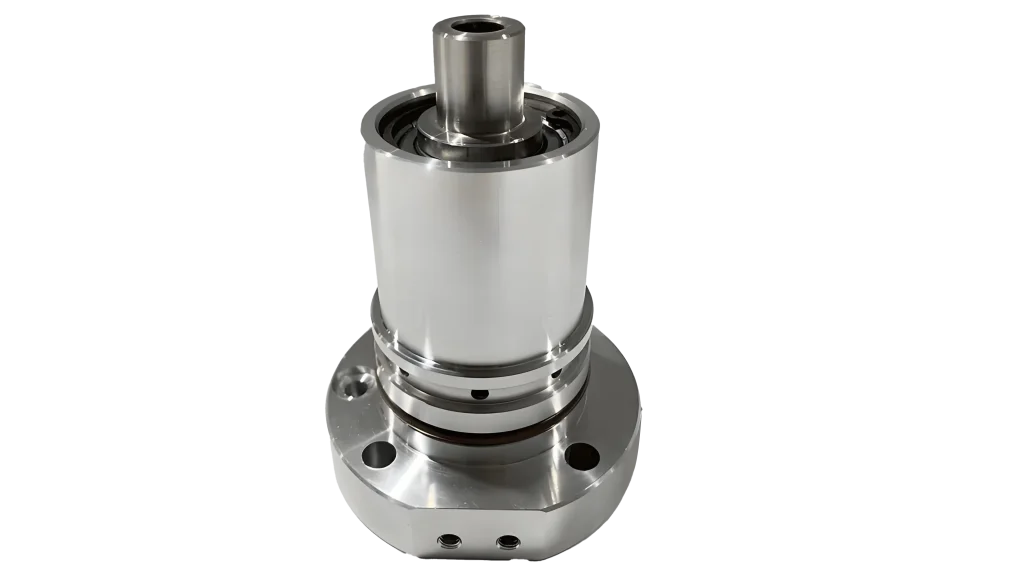

SKT high-speed swivel union

SRJ01-2005 is a high-speed rotary joint designed specifically for the water outlet/cooling system of CNC machine tool spindle centers, belonging to the SRJ01 series single pass model. This type of product is mainly used to transfer cutting fluid, hydraulic oil and other media from fixed pipelines to the rotating spindle without damage under high-speed rotating conditions

Place of Origin: China
Material: Aluminum alloy
Customized processing: Yes
Whether to import: No
Connection method: flange thread
Scope of application: Rotating joints for mechanical engineering
Media: coolant, gas
Pressure: 100bar (10bar gas)
Speed: 10000
Temperature resistance: 70 ℃
Flow rate: 24L/min
Non standard customized products are for personal customization. Once produced, returns and exchanges are not supported. Please carefully review or communicate with customer service before placing an order.
If there are special requirements, they can be customized. The delivery time will increase by 3-15 days and the cost will increase by 5% -50%. Most of our basic accessories are standardized, modular, and non-standard customized, which can greatly reduce costs and delivery time.
Integrated: specially developed and designed for machine tools and specialized machines that require high-speed rotation and high-pressure operations;
During the rotation process, high-speed rotation and high pressure will generate more friction and wear;
The GTA rotary joint has demonstrated its performance and service life through its independently developed high-quality seal and innovative pressing method.
It can operate at high speed without any medium, thanks to the automatic closing sealing device;
Silicon carbide sealing: can work for a long time under harsh conditions;
Stainless steel rotors can prevent rust, corrosion, cold and heat.
