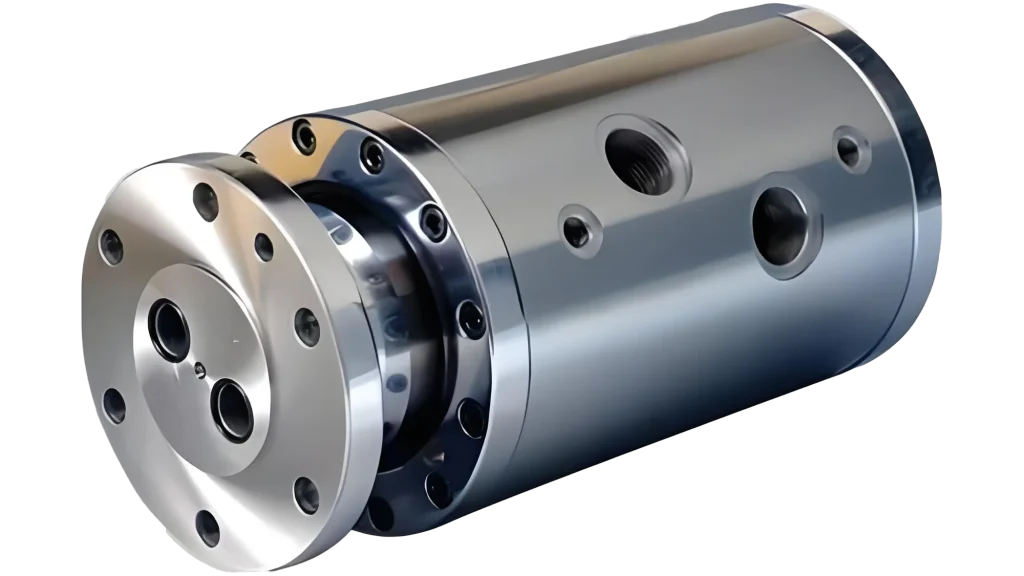

GAT gap seal 2-path high-speed rotary joint

GAT gap sealed 2-path rotary joint enjoys a high reputation in the high-end mechanical manufacturing field. GAT’s gap sealed dual path (2-path) high-speed rotary joint represents the top technological level in the field of mechanical engineering, which has strict requirements for high-speed, high-pressure, and multi-media transmission in application scenarios

Place of Origin: China
Customized processing: Yes
Whether to import: No
Speed: 6500 r/min
Temperature range: -30 to+80 ℃
Pressure: 30Mpa
Working medium: hydraulic oil and other fluid media

The K series rotary joint is a type of rotary joint specifically designed for medium to high speed and high pressure multi-path equipment, serving equipment such as machining center rotary workbenches, hydraulic workstations, coilers, wind turbines, centrifuges, etc.
Product Features:
Supported by two wide and high-precision bearings, the operation is smooth and the bearings do not require maintenance for life;
High speed and high-pressure sealing structure, no contact wear of sealing rings, ensuring long-term trouble free operation of the product;
Lower rotational torque;
Adopting a special product structure, there is no frictional heat generated during high-speed operation;
The rotational torque is not affected by working pressure and temperature;
The working range of the speed is wide, and the speed can reach 6500 RPM;
Drain hole design to prevent leakage to the external environment;
We can tailor products to meet the specific needs of our customers.
Important note:
The K series products adopt a gap sealing structure, and the discharge hole L must be connected to the return oil tank using an oil pipe during installation, and the return oil pipeline must not be blocked to form pressure;
2. There is mutual leakage in the internal channels, and attention should be paid to the compatibility of different fluids to prevent cross contamination;
3. High precision connectors, the working fluid should be filtered before use, with a filtration accuracy of not less than 10 μ m;
4. The increase in temperature will reduce the viscosity of hydraulic oil, causing an increase in internal leakage. A cooling device is required during use;
5. The hydraulic system needs to have an automatic pressure regulator to compensate for the pressure loss caused by internal leakage in the joint;
When using other media besides hydraulic oil, it is necessary to consult the sealing technology department.
