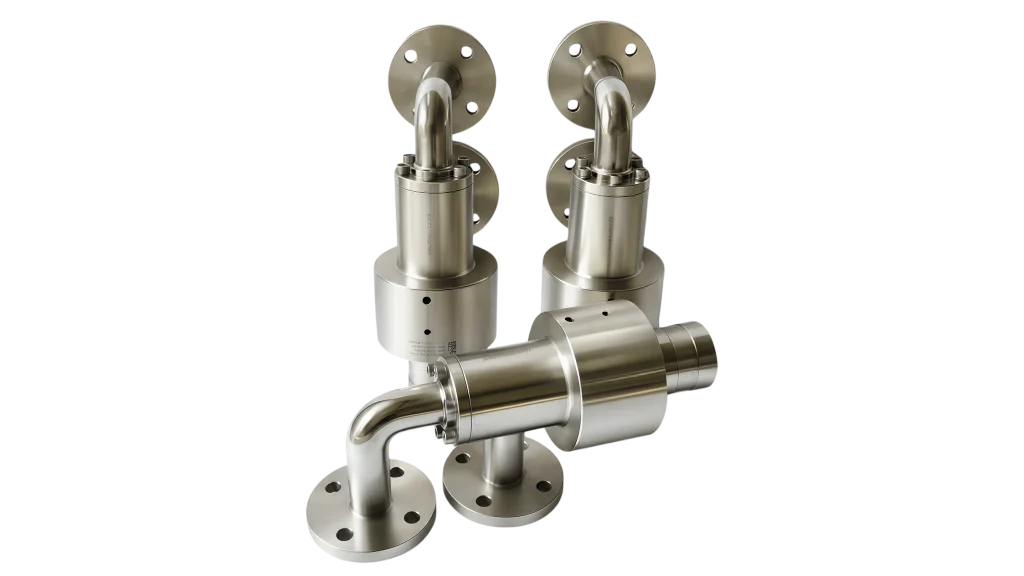

F90 swivel unions Transporting equipment components from a fixed pipeline system to high-speed rotating or reciprocating motion
F90 swivel unions
This “T series” is actually a T-port rotary joint, designed to facilitate multi-directional fluid flow under rotating conditions.
Features:
Suitable for use with air, water, hydraulic oil, low-temperature heat transfer oil, and other media.
Supports bidirectional flow, enabling flexible on-off combinations among three ports.
Compact structure, reliable sealing, suitable for medium and low speed conditions.
Model example: DN65-DN200, etc. rotary joint
Typical structure:
Shell: Made of brass or stainless steel, resistant to corrosion.
Sealing system: It adopts a flat seal, coupled with a multi-spring compensation mechanism. The rotating and stationary seals are removable and replaceable, facilitating easy maintenance and ensuring sealing performance under both high and low pressures.
Rotating stop device: Install a rotating stop rod through the support hole to prevent the housing from rotating with the shaft
A rotary joint is a sealing device that connects stationary pipelines and rotating equipment, achieving leak free fluid transmission under 360 ° rotation. It allows fluid media to flow smoothly between fixed pipelines and rotating machines, and is a key component in industrial equipment
F90 swivel unions Transporting equipment components from a fixed pipeline system to high-speed rotating or reciprocating motion
Q32 swivel unions
JD40 rotary joint is a key sealing component in industrial fluid transmission systems, usually referring to a rotary connection device with a diameter of DN40 (or corresponding British caliber). As a transitional sealing device that transports fluid media (such as water, steam, hydraulic oil, thermal oil, compressed air, etc.) from static pipelines to dynamic rotating or swinging equipment
