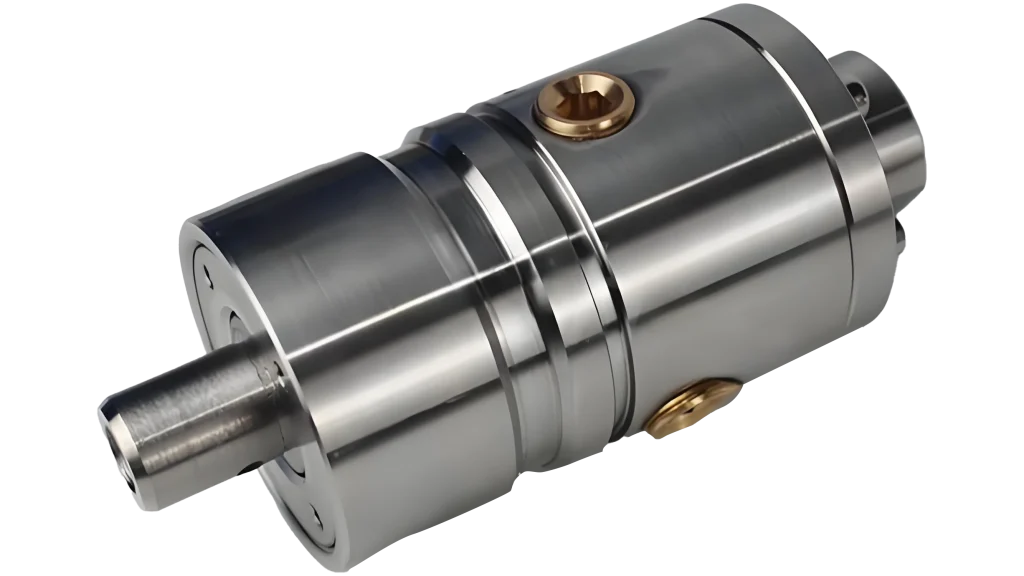

B10-1609-02E rotary joint

B10-1609-02E is a center outlet high-speed rotary joint designed specifically for deep hole drilling and high-precision machining. This model usually belongs to the Italian ROTOFLUX brand series and is a key sealing component in industrial fluid transmission systems. Its core function is to stably and leak free transport coolant, hydraulic oil, or compressed air from a stationary pipeline to the rotating tool or workpiece during high-speed spindle rotation, achieving efficient cooling and chip removal

Place of Origin: China
Customized processing: Yes
Whether to import: No
Connection method: flange thread
Scope of application: Machinery industry
Material: Aluminum alloy
Speed: 12000r/min
Temperature: -30~+80 ℃
Pressure: 12MPA
Working medium: hydraulic oil, water, coolant
Non standard customized products are for personal customization. Once produced, returns and exchanges are not supported. Please carefully review or communicate with customer service before placing an order.
If there are special requirements, they can be customized. The delivery time will increase by 3-15 days and the cost will increase by 5% -50%. Most of our basic accessories are standardized, modular, and non-standard customized, which can greatly reduce costs and delivery time.
Closed sealing, automatic line or similar applications;
Full flow design, no debris or burr blockage;
Bearing support and threaded rotor, easy to install;
Deep groove radial ball bearings operate smoothly;
Adopting labyrinth seal and large leakage port to protect ball bearings;
Balanced machine seal, made of silicon carbide material, can extend the service life even under harsh conditions;
Anti corrosion anodized aluminum components, replaced with high-pressure resistant rotating seals, with a pressure resistance of up to 12MPA;
Suitable for high-speed machine tool spindles and other equipment.
