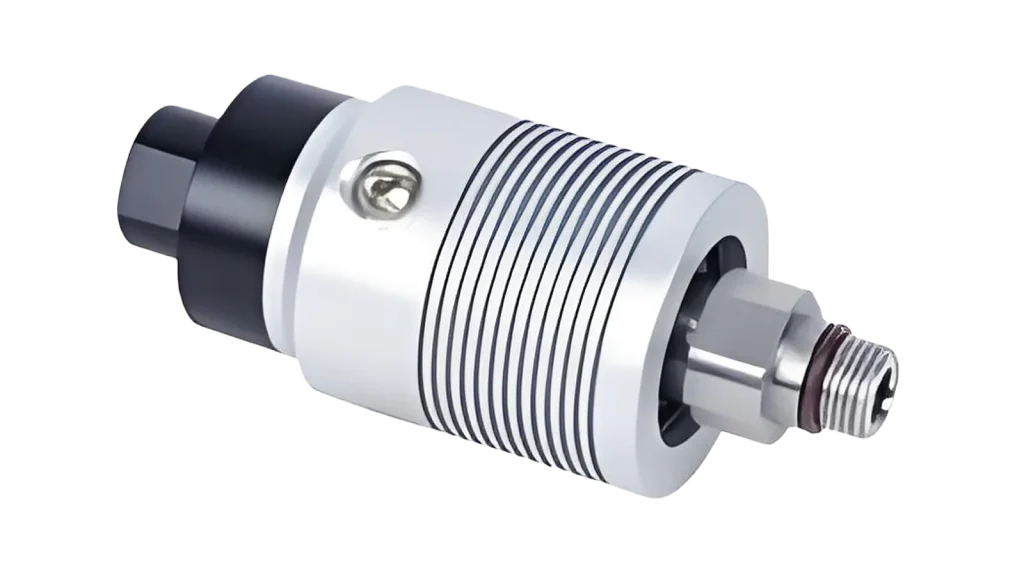

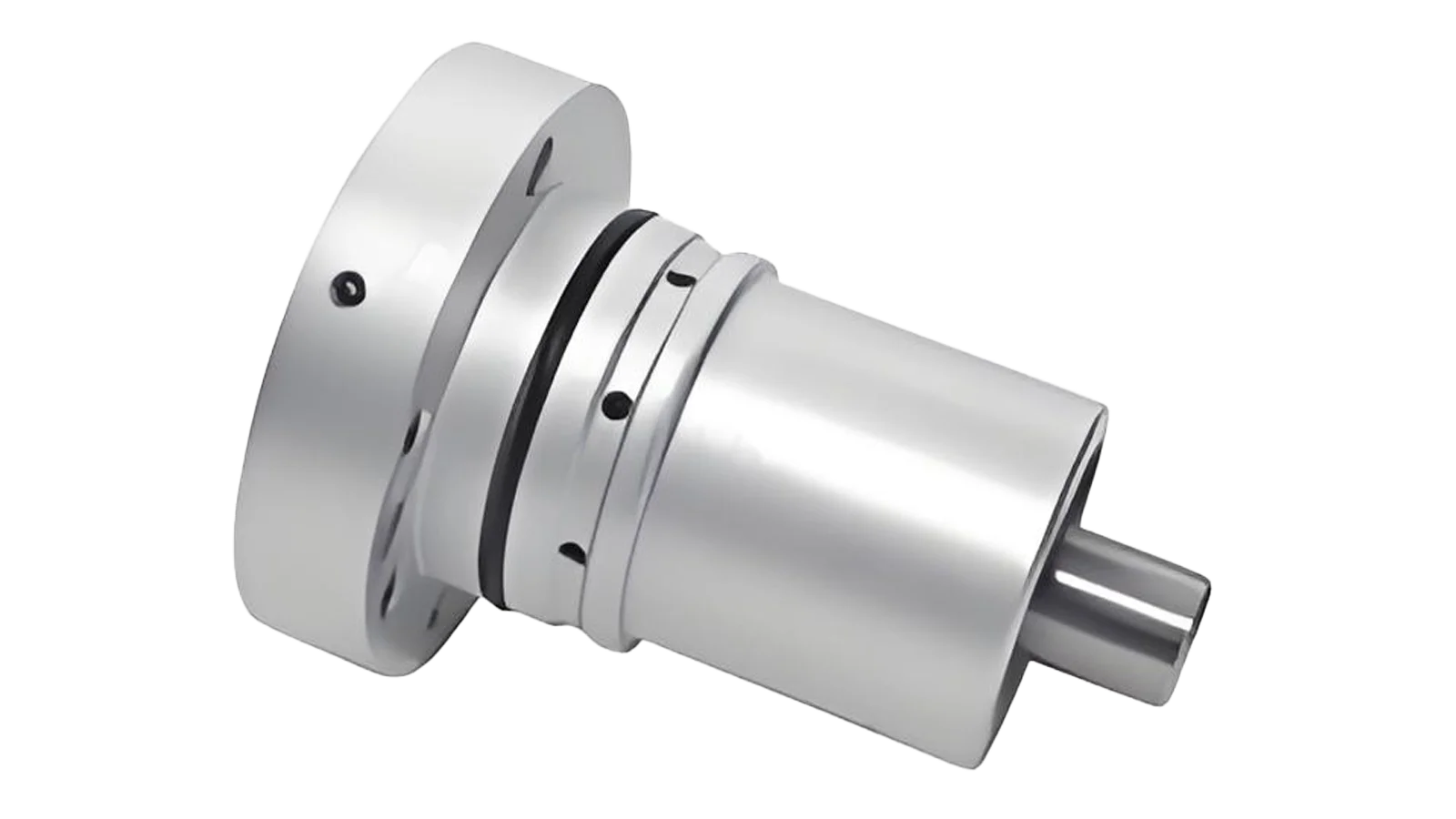

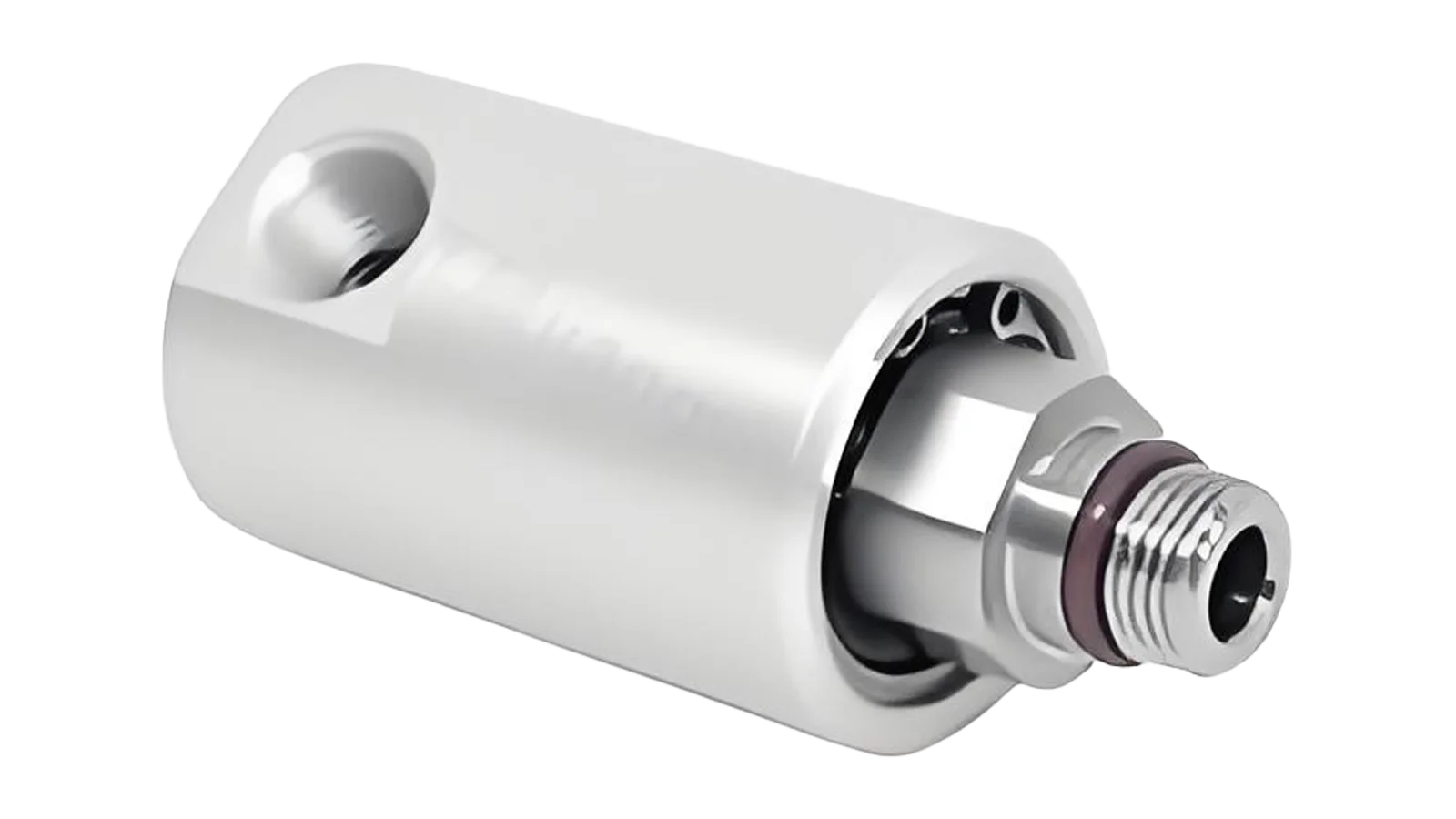

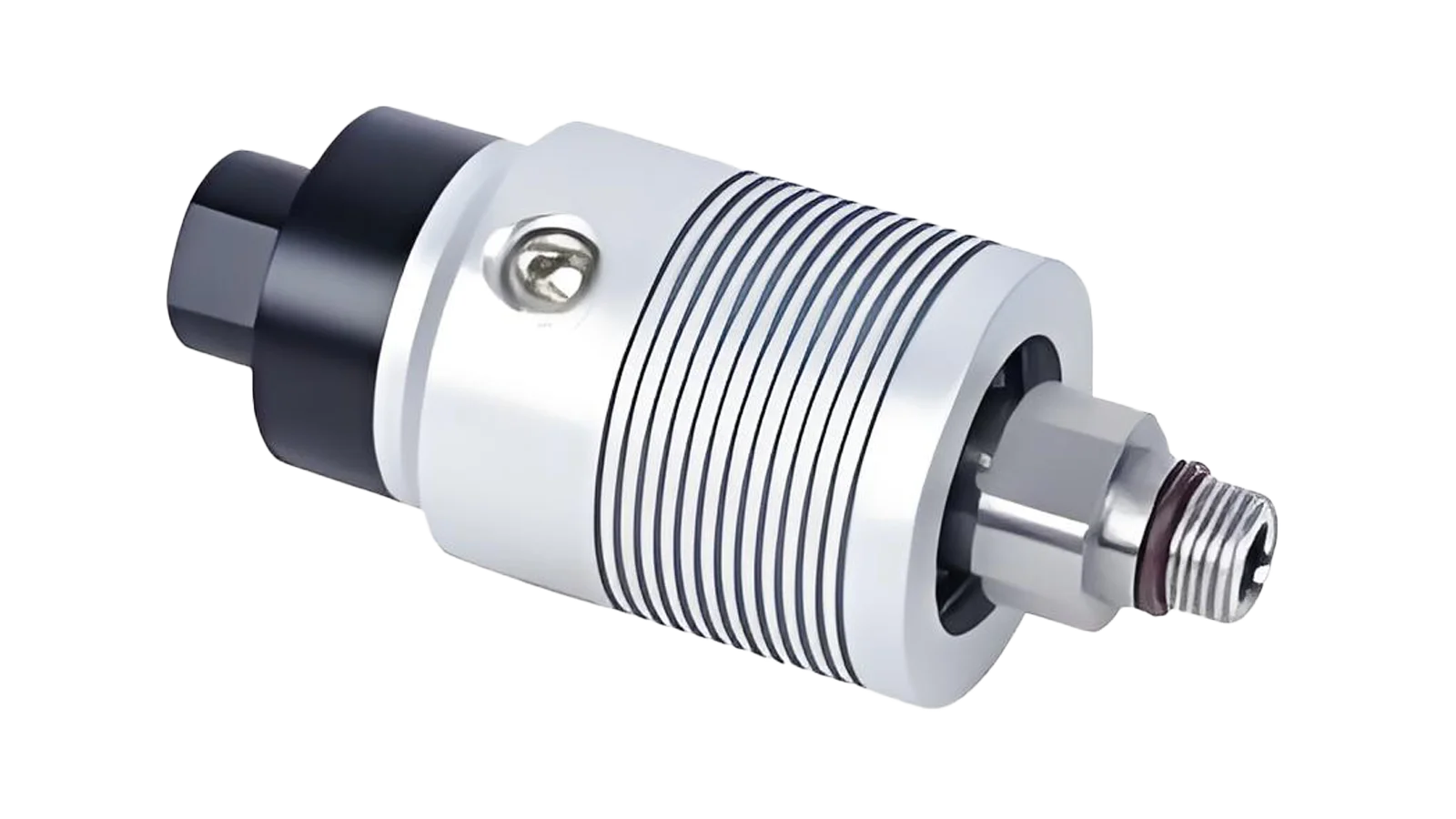

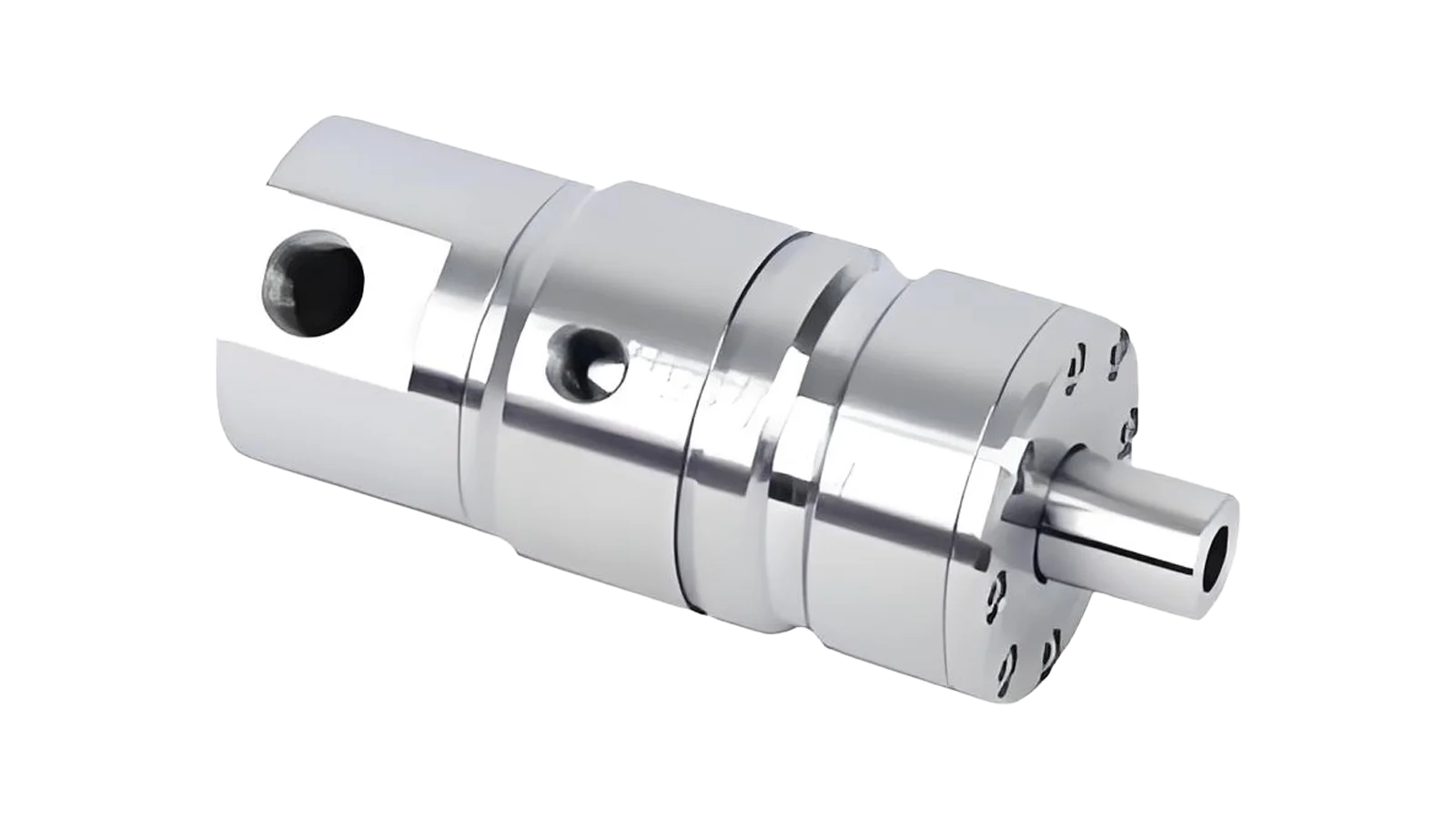

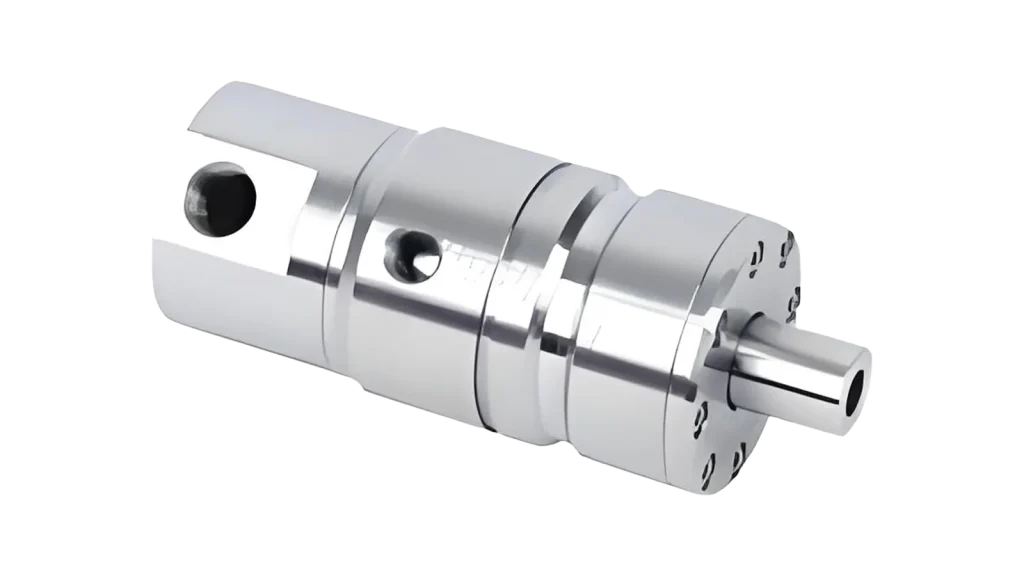

SKT high-speed rotary joint

SKT high-speed rotary joint is known for its high precision, high speed, and excellent sealing performance. Targeting the complex installation environment and special working conditions required in industrial sites. This product aims to solve problems such as shaft diameter, pressure, temperature, or medium compatibility that cannot be matched with standard parts. It is widely used in CNC machine tools, automation equipment, paper making machinery, rubber and plastic, and high-end manufacturing fields.
This type of joint is rigidly connected to the rotating shaft of the equipment through a flange structure, with extremely high concentricity and stability. It can withstand the centrifugal force and vibration generated by high-speed rotation, ensuring the stable transportation of fluid media (such as coolant, hydraulic oil, compressed air, etc.) between fixed pipelines and rotating components with zero leakage and long service life.

Place of Origin: China
Material: Aluminum alloy
Customized processing: Yes
Whether to import: No
Connection method: flange thread
Scope of application: Rotating joints for mechanical engineering
Media: coolant, oil and gas
Pressure: 100bar
Speed: 24000
Temperature resistance: 70 ℃
Flow rate: 24L/min
Non standard customized products are for personal customization. Once produced, returns and exchanges are not supported. Please carefully review or communicate with customer service before placing an order.
If there are special requirements, they can be customized. The delivery time will increase by 3-15 days and the cost will increase by 5% -50%. Most of our basic accessories are standardized, modular, and non-standard customized, which can greatly reduce costs and delivery time.
Integrated: specially developed and designed for machine tools and specialized machines that require high-speed rotation and high-pressure operations;
During the rotation process, high-speed rotation and high pressure will generate more friction and wear;
The GTA rotary joint has demonstrated its performance and service life through its independently developed high-quality seal and innovative pressing method.
It can operate at high speed without any medium, thanks to the automatic closing sealing device;
Silicon carbide sealing: can work for a long time under harsh conditions;
Stainless steel rotors can prevent rust, corrosion, cold and heat.
