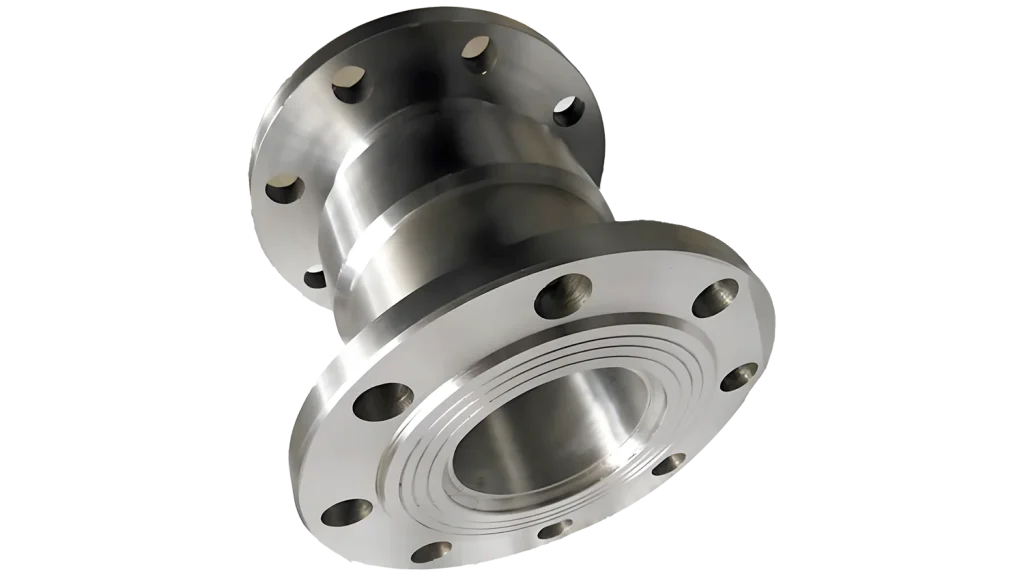

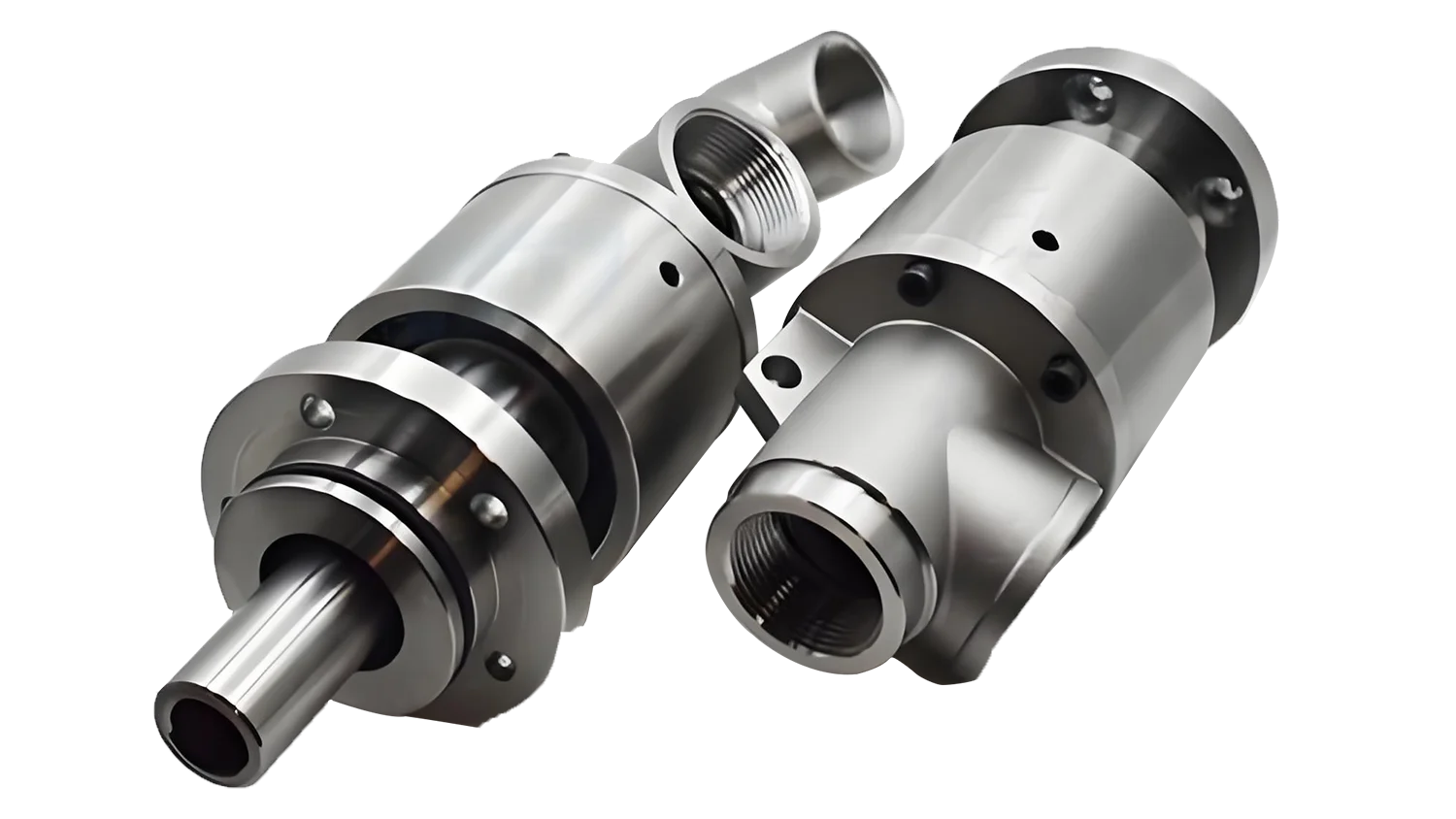

Rotary joints can be customized

this rotary joints have below advantages :

Long service life
Adopting special surface heat treatment technology to achieve minimal friction and self-lubricating “thin film bearing” effect
The wear condition of the seal can be visually inspected from the appearance, which is convenient for preventive maintenance
Seals can be replaced separately without the need for overall disassembly, reducing maintenance time from 3 hours to 0.3 hours
Excellent sealing performance

Adopting a balanced mechanical seal design, the working pressure can reach 35MPa
The wear rate of the sealing end face is reduced by 50%, and the leakage rate is controlled below 0.1ml/h
Multi stage O-ring combination structure effectively reduces sealing surface wear
High speed operation capability
Precision bearing support system, with a maximum speed of 8000rpm
Imported angular contact ball bearings with over twice the maximum speed limit
Elastic membrane preloading load design to achieve clearance damping and pre tightening
Multi medium adaptability
Can transmit various media such as coolant, cooling water, gas, oil mist, hydraulic oil, steam, oil and gas, vacuum, etc
Wide working temperature range (≤ 180 ℃), strong corrosion resistance

Design features: Integrated rotary shaft and body, labyrinth seal combined with spring, split structure, shell oil nozzle and observation hole.
Technical advantages: High speed rotating balanced mechanical seal, prevents fluid medium from entering the bearing, facilitates maintenance and replacement, supports bearing lubrication and leakage monitoring.
Application effect: Reduce vibration, improve stability, extend bearing life, reduce downtime, and improve maintenance convenience
