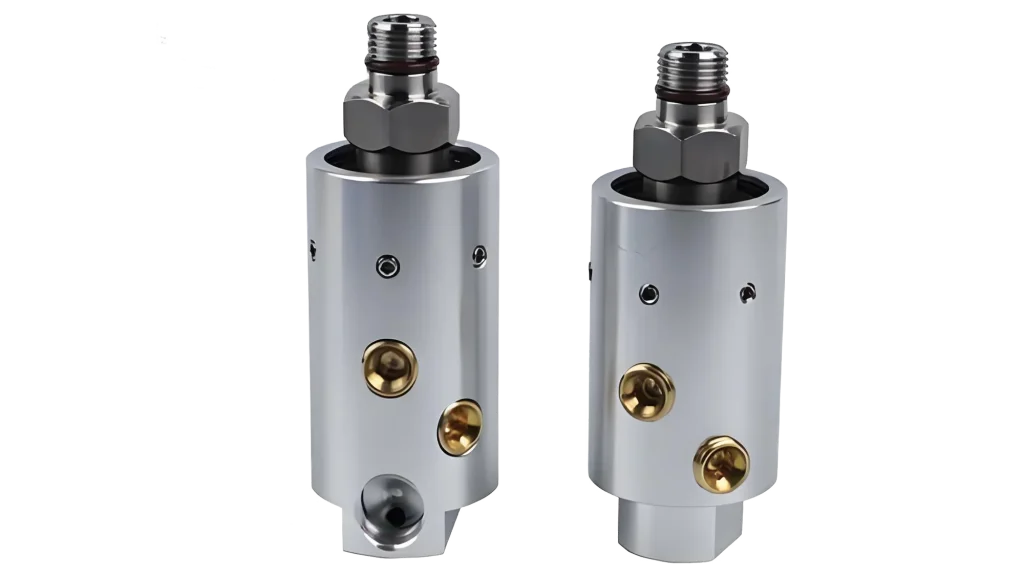

RIX LX86V-244 swivel union

RIX (Rocky Joint) LX86V-244 is a high-performance bearing embedded hydraulic/coolant rotary joint. This series of products is designed specifically for machine tool spindles and precision machining equipment, known for their long lifespan, high reliability, and unique sealing technology. They are widely used in fields such as CNC machining centers, lathes, semiconductor manufacturing, and the automotive industry.

Origin: Shandong
Customized processing: Yes
Whether to import: No
Material: Aluminum alloy
Speed: 15000r/min
Voltage resistance: 7MPA
Temperature resistance: 60 ℃
Media: cutting fluid, oil, dry air
The product is widely used in many fields such as automobiles, metal processing, rubber and plastics, engineering machinery, walking machinery, metallurgical equipment, forging machines, environmental equipment, etc
Single channel coolant or MQL closed seal,
The automatic line is designed with full circulation similar to the application, without generating debris or burrs blocking
The bearing support has a threaded rotor, which facilitates the installation of deep groove ball bearings to ensure smooth operation,
The internal air path barrier can achieve a certain degree of dry operation
The silicon carbide tungsten carbide balanced sealing structure can meet the harsh operating environment,
Longer lifespan and better anti-corrosion effect of anodized aluminum shell.
