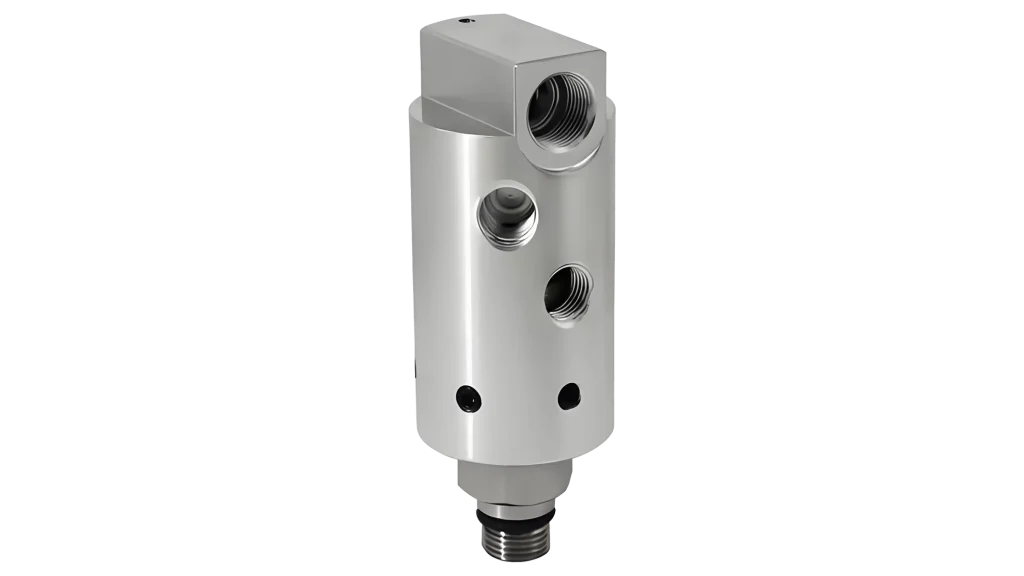

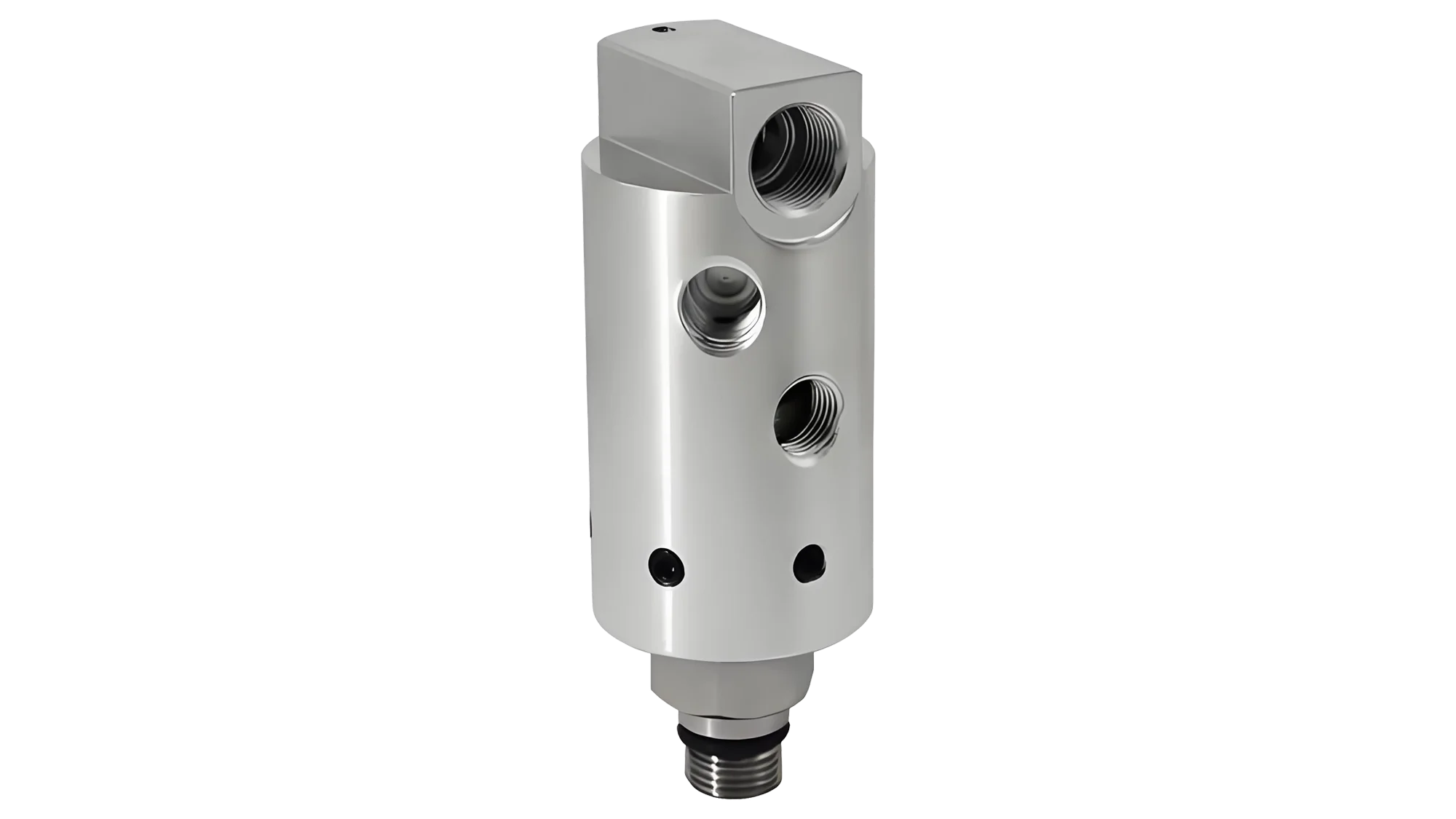

LX84-7920 rotary joint

Applicable scenarios: Designed specifically for CNC machine tool spindle center water/oil discharge, supporting the transmission of coolant, lubricating oil or compressed air, commonly used in high-speed machining centers of brands such as MAZAK and Little Giant.
Working parameters: Typical pressure resistance of 0.5-7 MPa, speed up to 3000 RPM or higher, temperature range of -20 ° C to+100 ° C (depending on the sealing material).
Sealing technology: using silicon carbide/carbon graphite wear-resistant sealing pair, supporting high-speed dry operation and high-pressure working conditions, with low leakage.
Structural features: Built in shielded ball bearings, no lubrication maintenance required; Dual channel or central outlet structure, conducive to vertical installation and drainage; The main body is mostly made of stainless steel (such as 304/316L), which is corrosion-resistant.
Interface form: commonly G1/4 “or G1/2” threads, which need to be matched with the spindle port of the machine tool; Installation requirements include high coaxiality, flexible hose compensation, and prohibition of hard connections.

structural characteristics
Single channel coolant or MQL (oil mist)
Closed seal, automatic production line for similar applications
Full flow design, no debris or burr blockage generated
The bearing supports a threaded rotor for easy installation
Deep groove ball bearings ensure smooth operation
Maze system and large leakage port are used to protect ball bearings
The balanced mechanical seal made of silicon carbide material can ensure a long service life even in harsh operating environments
Anti corrosion anodized aluminum shell
