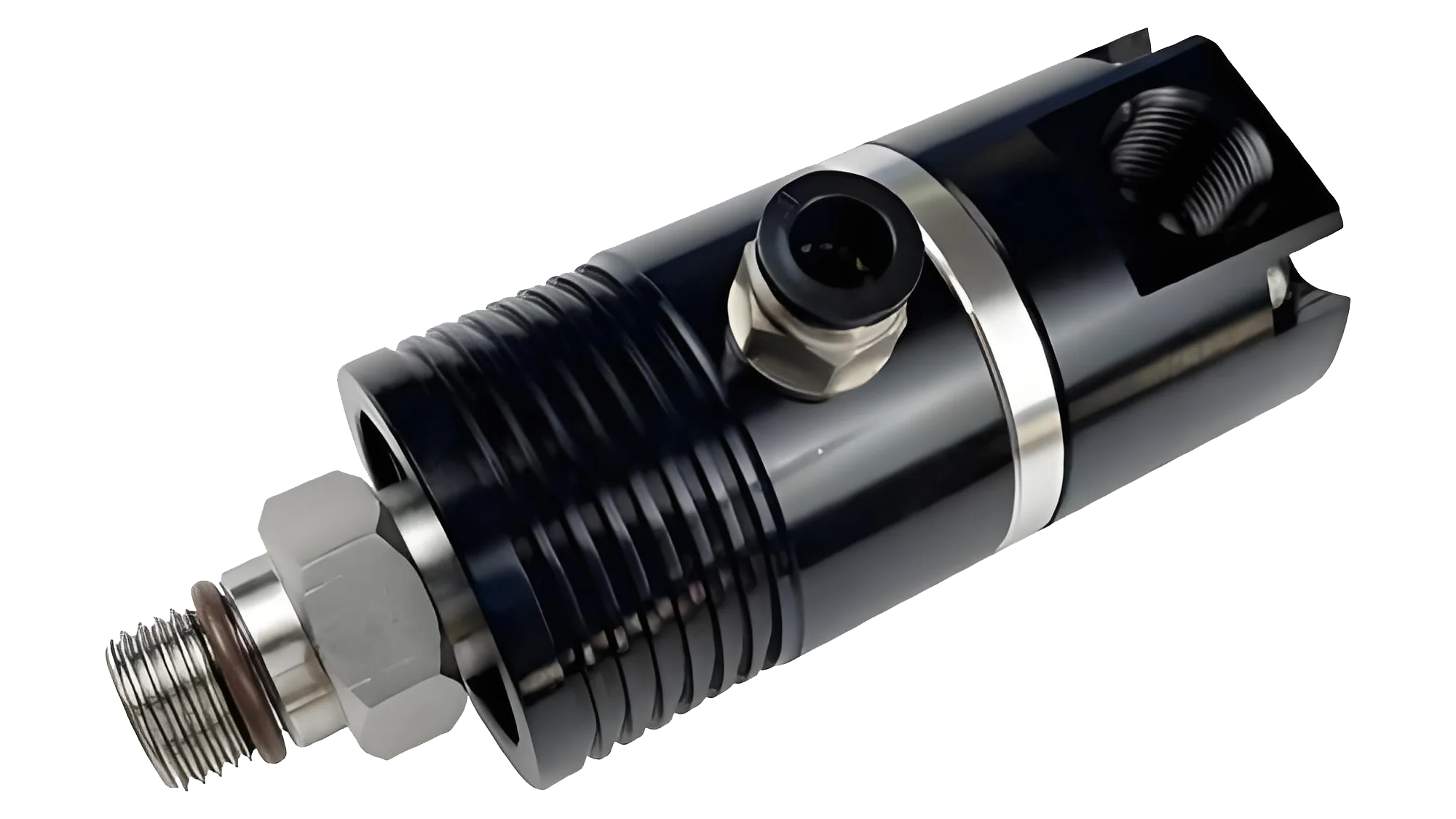

High speed rotating joint for machining center water outlet

High speed rotary joint is an industrial rotating component designed specifically for high-speed operating environments, capable of stable operation at a high speed of 3000rpm, used to transport fluid media from fixed pipelines to rotating equipment.

Advanced sealing design:
Using special grade wear-resistant and high-temperature resistant silicon carbide material seals
Grinding optical flatness up to 2 optical bands
Has excellent high hardness, low friction, wear resistance, and anti heat accumulation performance
Optimization of bearing system:
Elastic membrane preloading load design to achieve clearance damping and pre tightening
Balancing grease self lubrication and oil injection lubrication
Ensure smooth high-speed operation and long lifespan
Structural design innovation:
Integrated structure of high-speed rotating balance mechanical seal between rotating shaft and main body
Combination of labyrinth seal and spring elements
Effectively prevent fluid medium from entering the bearing
Application advantages
Industrial equipment applications:
Widely used in various machining centers, automatic production lines, gun drills/gun hinges, and specialized equipment
Prevent pipeline entanglement or twisting issues, improve equipment reliability and work efficiency
Medical equipment applications:
Transmitting high-voltage electricity, cooling medium, and image data in CT equipment
Transmitting control signals, cooling liquid nitrogen, and image data in MRI equipment
Ensure high-precision operation of medical imaging equipment
Compared to traditional connection methods:
Compared to fixed pipes: allowing 360 degree rotation to avoid pipe twisting or damage
Compared to hose connections: more stable, suitable for high pressure, high speed, or long-term operation
Compared to ordinary rotary joints: better sealing performance and durability
High speed rotary joints provide stable and reliable fluid transmission solutions in high-speed and high-pressure environments through their unique design and material selection, becoming an indispensable key component in modern industrial equipment.
