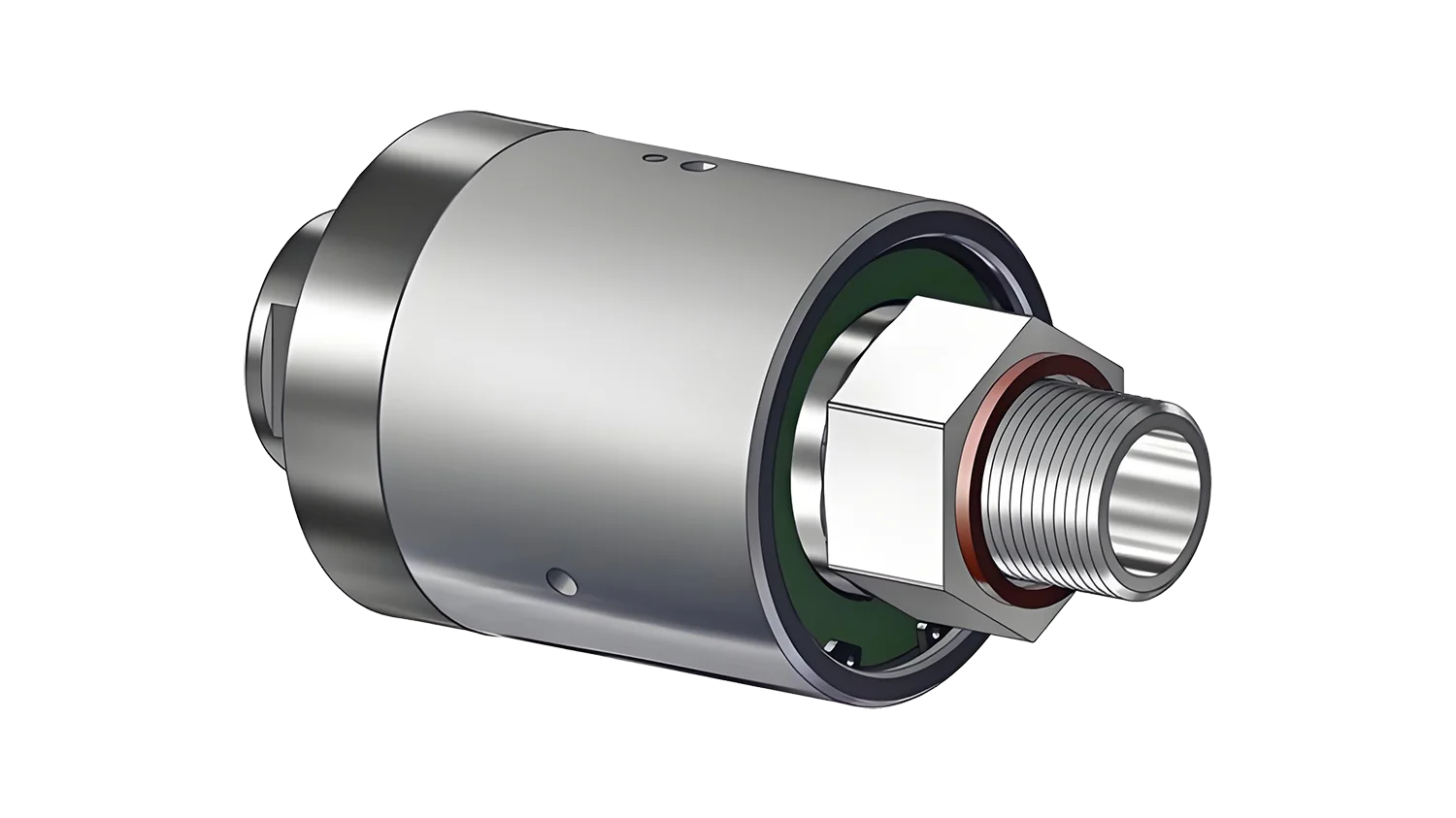

The direct hydraulic oil rotary joint of the high-pressure cleaning machine is a rotary sealing device designed specifically for high-pressure hydraulic systems, mainly used for transmitting hydraulic oil media
The direct hydraulic oil rotary joint of the high-pressure cleaning machine is a rotary sealing device designed specifically for high-pressure hydraulic systems, mainly used for transmitting hydraulic oil media.
Core advantages
High voltage tolerance:
The working pressure can reach 35MPa, meeting the extreme working environment requirements of high-pressure cleaning machines
Adopting a balanced mechanical seal design to achieve pressure balance and ensure stable operation under high pressure
Excellent sealing performance:
Equipped with imported seals (graphite ring/silicon carbide mirror ring)
Multi stage O-ring combination structure effectively reduces sealing surface wear
Oil film sealing technology extends service life
High speed rotation stability:
The maximum speed reaches 8000rpm
Precision bearing support system ensures smooth high-speed operation
Structural design advantages:
Stainless steel shell, strong corrosion resistance
Split structure design for easy maintenance and replacement
The shell is equipped with oil injection nozzles and observation holes to support bearing lubrication and leakage monitoring
|
Comparison item |
Direct hydraulic oil |
fixed pipeline |
flexible hose connection |
ordinary rotary joint |
|
degree |
free rotation |
fixed |
limited bending |
less than 270 degrees |
|
High pressure performance |
can reach 35MPa |
Good |
Not good |
with a general difference of less than 10MPa |
|
High speed performance |
8000rpm |
not suitable |
Not good |
usually<3000rpm |
|
Long service life |
Long service life (special seal) |
long |
Not long |
Medium length |
|
Anti entanglement excellent |
good |
Not suitable |
moderate |
good |
|
Maintain convenience |
Regular oiling is required to maintain convenience |
better |
Not good |
moderate |
A rotary joint is a sealing device that connects stationary pipelines and rotating equipment, achieving leak free fluid transmission under 360 ° rotation. It allows fluid media to flow smoothly between fixed pipelines and rotating machines, and is a key component in industrial equipment
