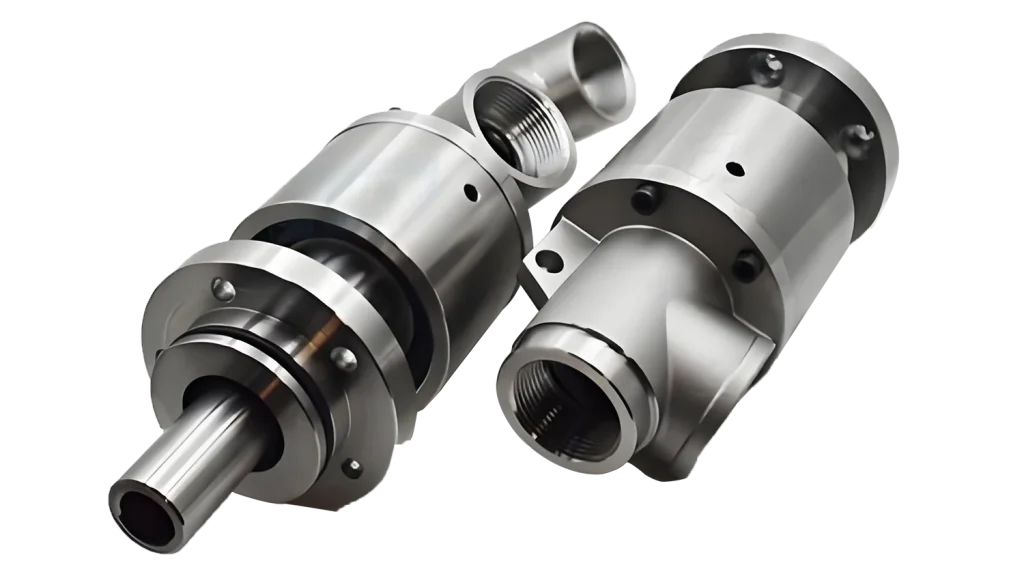

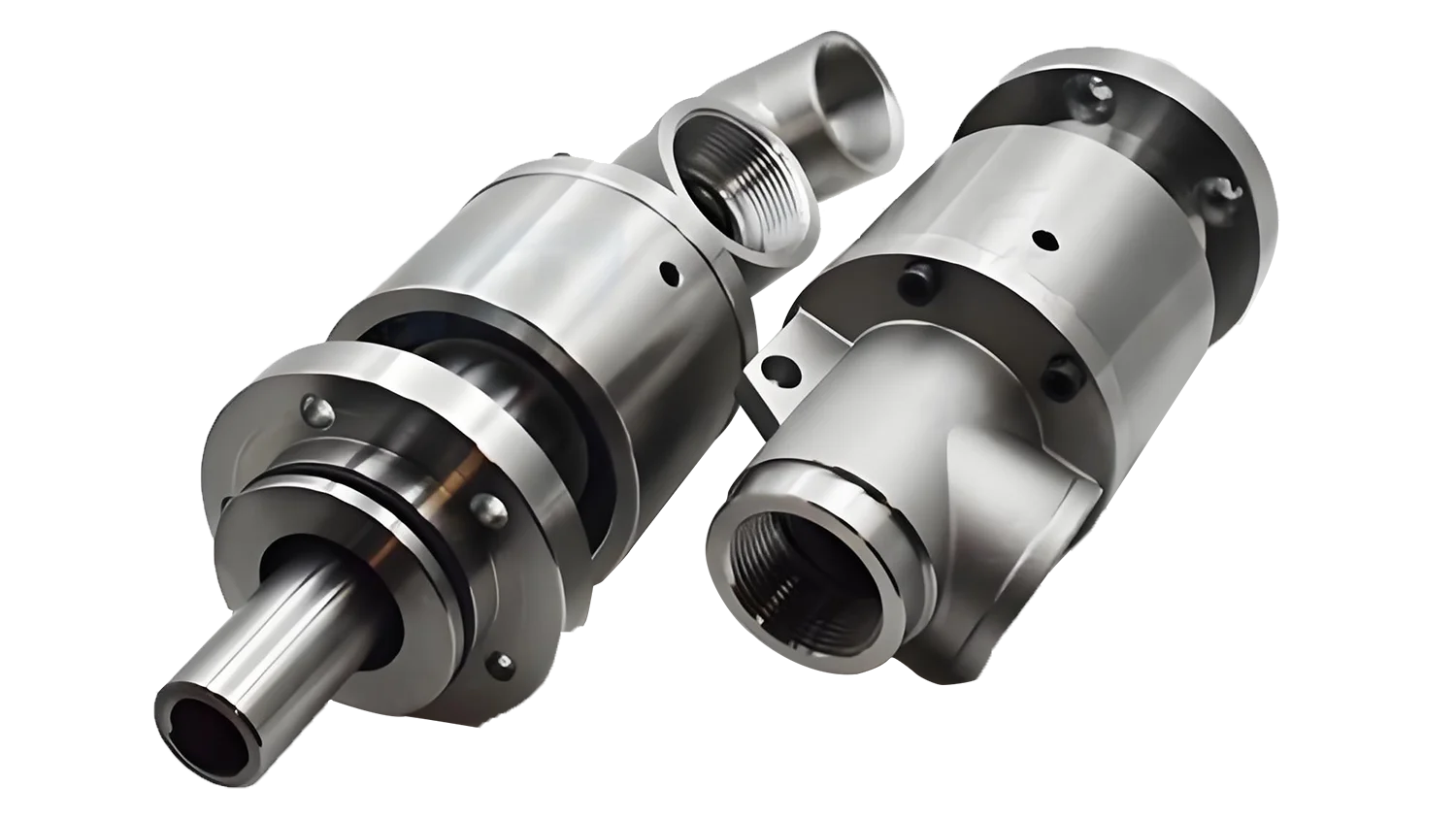

GFL/GFLA009028408 high-speed rotary joint

High speed rotary joint is an industrial rotating component designed specifically for high-speed operating environments, capable of stable operation at a high speed of 3000rpm, used to transport fluid media from fixed pipelines to rotating equipment.

High speed rotary joints are particularly suitable for the following industrial fields:
Paper industry: drying cylinders, steaming balls, coating machines, and other equipment for paper machines
Rubber and plastics: Processing equipment such as , screw extruders, mixing mixers, kneading machines,
Textile printing and dyeing: bed single refining and bleaching machine, silk polishing machine, flat washing machine, vacuum drying machine,
Food processing: grain, food drying equipment, kneading machines, release devices,
Metal processing: continuous casting machine, hot steel plate straightening machine, wire drawing, rolling mill,
Chemical and pharmaceutical industries: cylindrical drying machines, rolling testing equipment, ball mills,

GFLA009028408 is a high-performance industrial grade rotary joint, widely used in the G series or GFLA series precision rotating components, designed specifically for transporting media such as water, air, hydraulic oil, thermal oil, and coolant between rotating components and fixed pipelines. Its core function is to achieve 360 ° leak free continuous fluid transmission, while compensating for installation errors and reducing pipeline stress.
1. Structure and Sealing
Mechanical seal core: Adopting balanced or unbalanced mechanical seal design, relying on springs to maintain tight contact with the initial valve seat, and achieving dynamic sealing under operating pressure.
Sealing material: Typically equipped with high-quality sealing rings (such as composite materials such as carbon graphite, silicon carbide, or Teflon), with low friction coefficient and high wear resistance, ensuring low leakage rate even under high-speed rotation.
Support method: Some models are equipped with self-supporting graphite guide rails internally or supported by external rods/brackets to withstand radial and axial loads.
2 Applicable media
Universality: Suitable for various fluids such as water, superheated steam, hot oil, hydraulic oil, compressed air, coolant, etc.
Special application: For the food and pharmaceutical industry, materials that meet hygiene standards can be provided; For high temperature and high pressure environments, high-temperature resistant seals can be optionally provided.
3 Connection Forms
Diversified interfaces: Supports threaded connections (such as NPT, BSP), flange connections, or quick fit connections, making it easy to integrate into existing equipment systems.
4. Application Fields
GFLA009028408 rotary joint is widely used in the following industries due to its excellent performance:
Paper making and printing: used for steam heating or cold water cooling of rollers to control the drying process of paper.
Plastic processing: Transporting hot oil or cooling water in injection molding machines and extruders to regulate mold temperature.
Steel metallurgy: used for cooling water systems in continuous casting machines and rolling mills.
Chemical and Petrochemical: Transport corrosive or high-temperature media to rotary reactors or dryers.
Food processing: steam or hot water supply for sterilization kettles and drying equipment.
