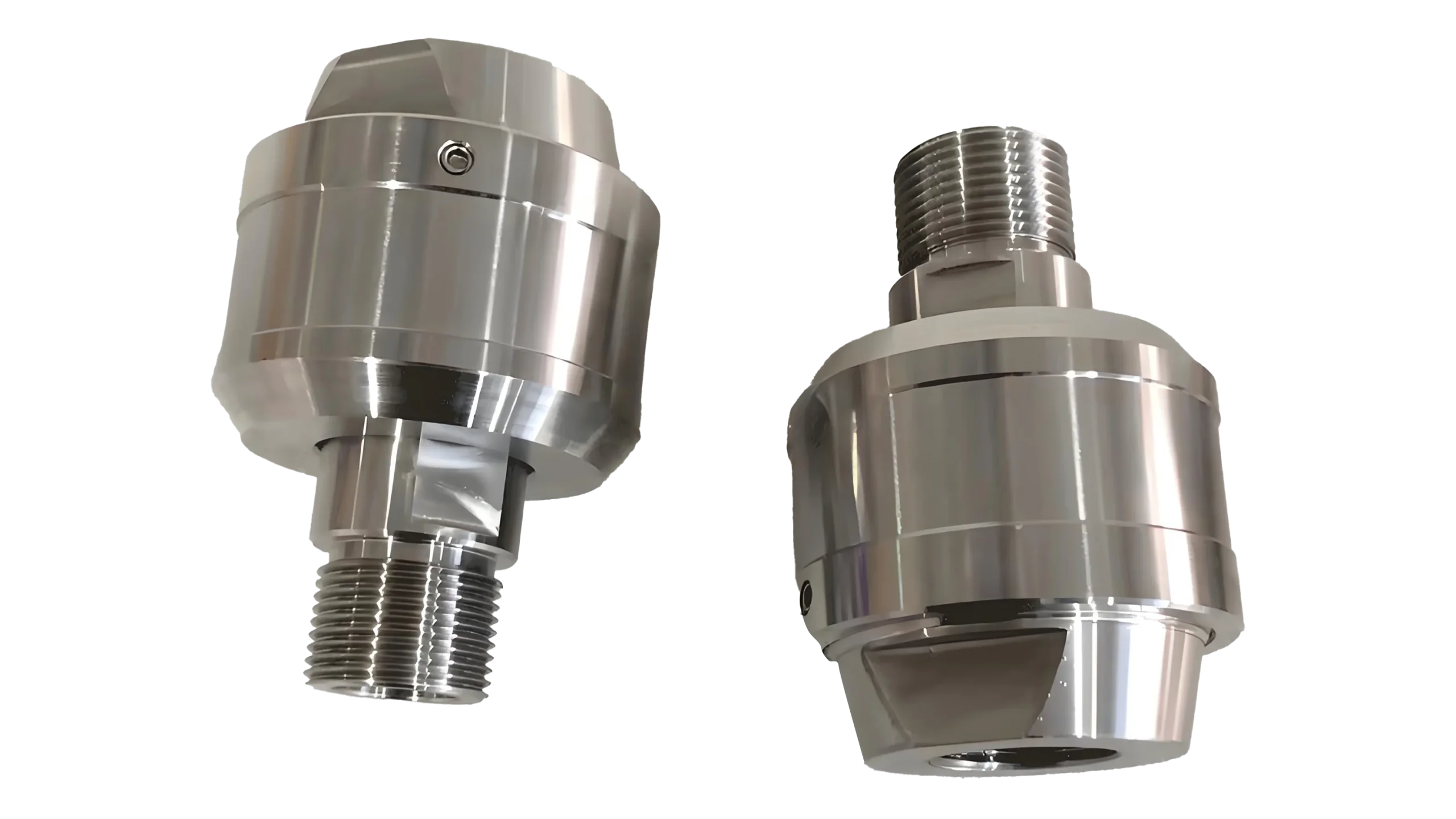

D20-003-210 rotary joint

D20-003-210 is a D-series high-pressure low-speed rotary joint. This model is designed specifically for industrial fluid transmission and is mainly used to achieve reliable transportation of media such as hot water, steam, thermal oil, or compressed air between fixed pipelines and rotating components. Its core advantages lie in high reliability, long lifespan, and the ability to adapt to harsh working conditions, widely used in industries such as papermaking, printing, packaging, textiles, rubber, and plastic processing.

Place of Origin: China
Customized processing: Yes
Whether to import: No
Installation form: threaded
Material: Stainless steel
Temperature resistance: 121 ℃
Voltage resistance: 44MPA
This series of rotary joints features balanced mechanical seals and high wear resistance in high-temperature, high-pressure, and high-speed applications. Search for steam rotary joints to reduce downtime and increase production volume.
Single stream and dual stream design;
Self supporting rotary joint;
Seals and bearings made of special carbon graphite;
Convex sealing rings are more suitable for handling mechanical and thermal shocks;
The external mechanism can adjust the siphon tube through the end cap;
Nickel plating on the front and back ends;
Nickel plated ductile iron shell;
Stainless steel spring;
Heavy duty steel rotor design;
