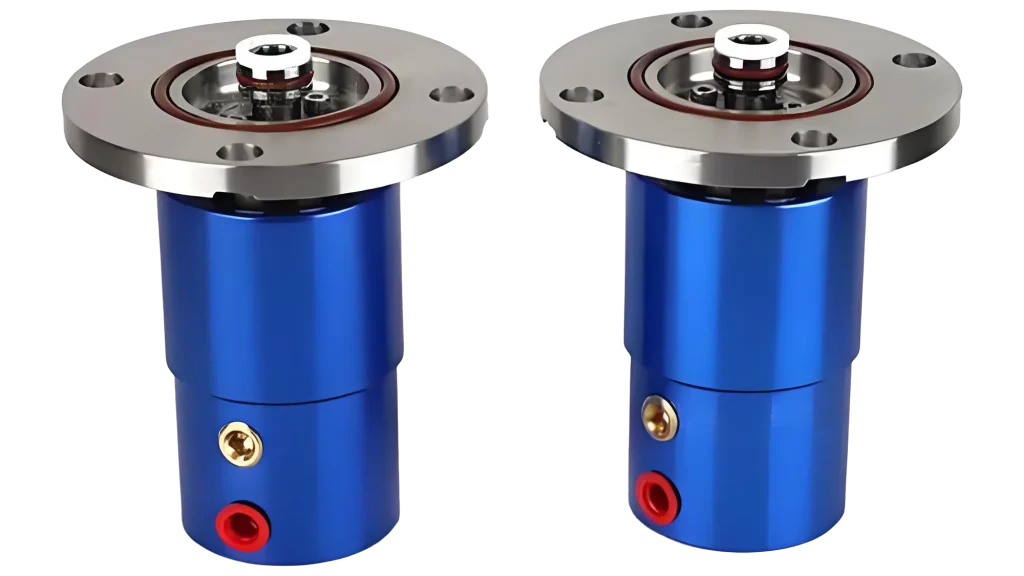

The 2620 series dual path high-speed rotary joint is a key fluid transmission component designed specifically for modern rubber and plastic machinery, especially tire forming machines, vulcanizing machines, and various high-speed rotary machine tool components
The 2620 series dual path high-speed rotary joint is a key fluid transmission component designed specifically for modern rubber and plastic machinery, especially tire forming machines, vulcanizing machines, and various high-speed rotary machine tool components. This series of products belongs to the “cold operation” type of joint, and its core advantage lies in the ability to stably transport two different media (such as air and coolant, hydraulic oil, etc.) simultaneously under high-speed working conditions, or bidirectional flow of a single medium
Place of Origin: China
Installation form: flange thread
Customized processing: Yes
Whether to import: No
Speed: 6000RPM
Material: Aluminum alloy
Pressure resistance: 70bar
Medium: Oil, gas, and water
Temperature resistance: 100 ℃
High speed rotary joints are designed for water, hot oil, compressed air, or low-pressure steam flow under high-speed conditions. To prevent the wear of various hard impurities and abrasive particles that enter with the medium, the main sealing components of this product are made of high-quality sealing materials. The rotating body adopts special processing technology to prevent wear and corrosion, and at the same time, two high-precision bearings are used to support the entire shell
Product Features:
1. Precision bearings do not require lubricating grease
2. Balanced sealing ensures a longer lifespan for rotary joints
3. A set of small springs provides balanced elasticity
4. Unique labyrinth seal and drain hole protection bearings
Application of high-speed rotary joint:
The application fields of high-speed rotary joints almost cover various processing and manufacturing industries For example: metallurgy, machine tools, power generation, deep hole drilling equipment, petroleum, rubber, plastics
Textile, printing and dyeing, pharmaceuticals, cigarettes, papermaking, food, feed processing, etc
Replace the Dublin rotary joint; Specialized in researching high-pressure/high-temperature/high-speed rotating joints; High cost-effectiveness!
