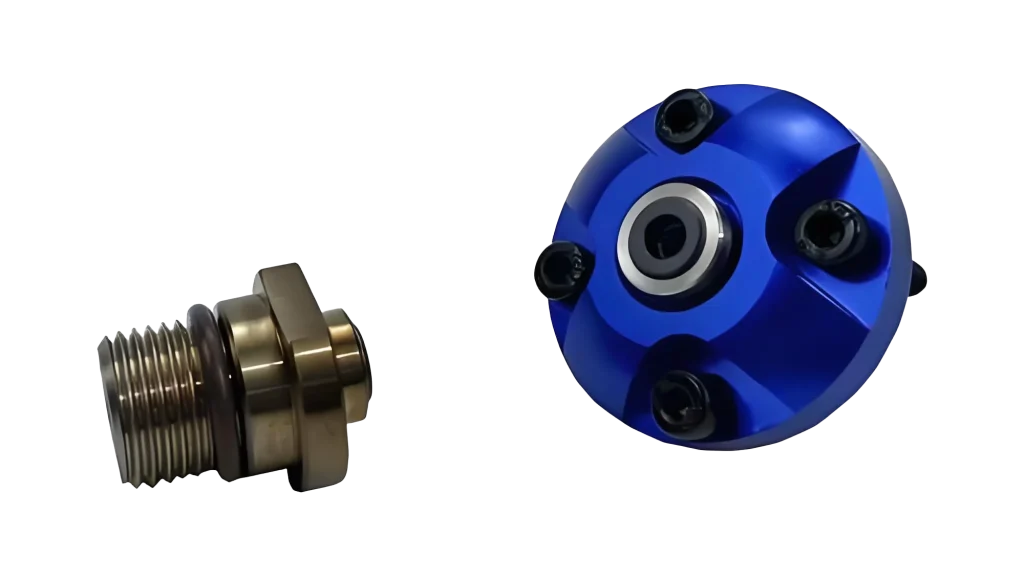

1154-005-109 swivel union

1154-005-109 rotary joint is a high-performance single channel split type rotary joint designed for high-speed and high-precision industrial applications. This model belongs to the 1154 series and is known for its excellent rotational speed capability, compact structure, and advanced sealing technology. It is widely used in CNC machine tools, automation equipment, and precision machining fields.
Scope of application: Machinery industry
Origin: Shandong
Voltage resistance: 3.0MPA
Customized processing: Yes
Whether to import: No
Material: Aluminum alloy
Installation form: threaded
Temperature resistance: -30~+80 ℃
Speed: 20000r/min
Media: hydraulic oil, water, coolant
Single channel for coolant or MQL
Patent AutoSense ™ Automatic sensing technology can automatically switch between closed sealing and controlled leakage based on the type of medium
Non rotating parts can have a travel of up to 8mm to achieve rod movement, even if the clamping device is equipped with a rotary joint
Full flow design, unobstructed passage, avoiding residual impurities
The balanced mechanical seal uses silicon carbide, which has a long service life, even under harsh operating conditions
Anodized aluminum shell for corrosion resistance
