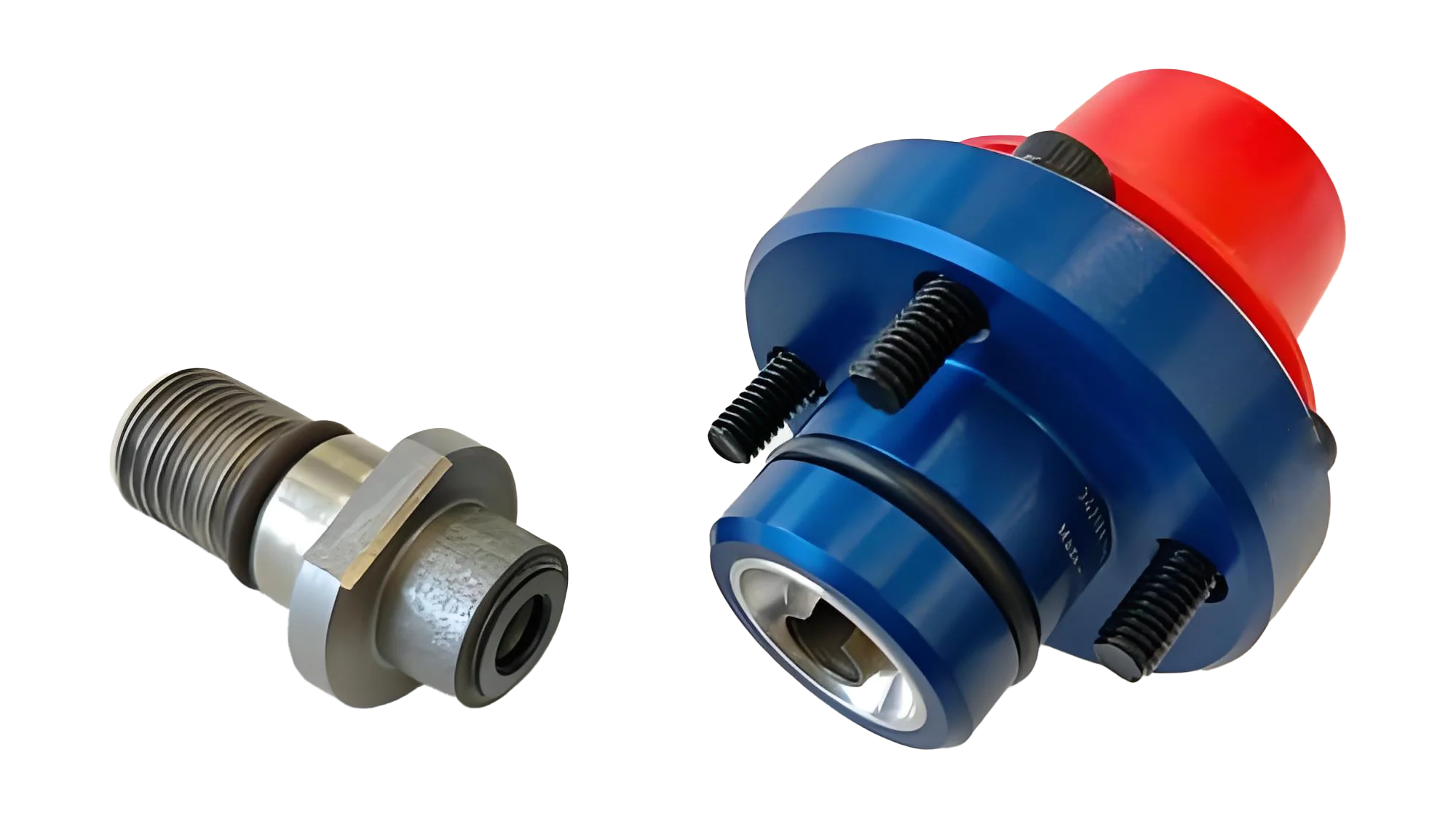

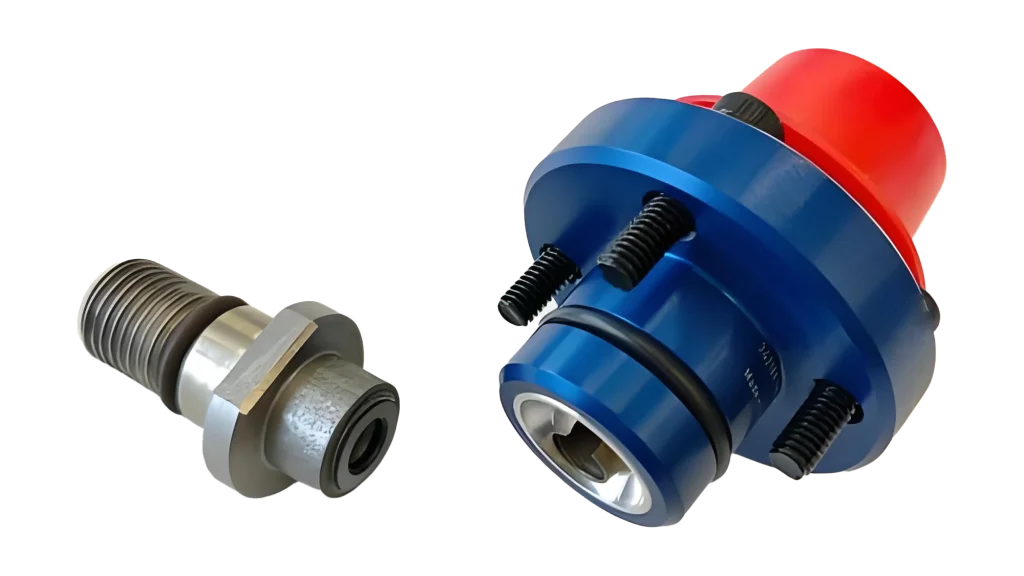

1154-003-107 swivel union

1154-003-107 rotary joint is a high-performance single channel bearingless rotary joint designed specifically for modern machine tools and automation equipment. This model belongs to the 1154 series and is widely used in the transportation of coolant, micro lubrication (MQL), and air media due to its compact structure, patented automatic sensing technology, and excellent sealing performance.

Origin: Shandong
Voltage resistance: 3.0MPA
Customized processing: Yes
Whether to import: No
Material: Aluminum alloy
Installation form: threaded
Temperature resistance: -30~+80 ℃
Speed: 20000r/min
Media: hydraulic oil, water, coolant
Non standard customized products are for personal customization. Once produced, returns and exchanges are not supported. Please carefully review or communicate with customer service before placing an order.
If there are special requirements, they can be customized. The delivery time will increase by 3-15 days and the cost will increase by 5% -50%. Most of our basic accessories are standardized, modular, and non-standard customized, which can greatly reduce costs and delivery time.
1154 type bearingless coolant joint features:
Single channel design
• Small structure
Axial shell connection
• Balanced mechanical seal
Sealing combination: Silicon carbide
• Discharge outlet
• All medium fluid form
• Anodized aluminum shell
• Steel swivel
