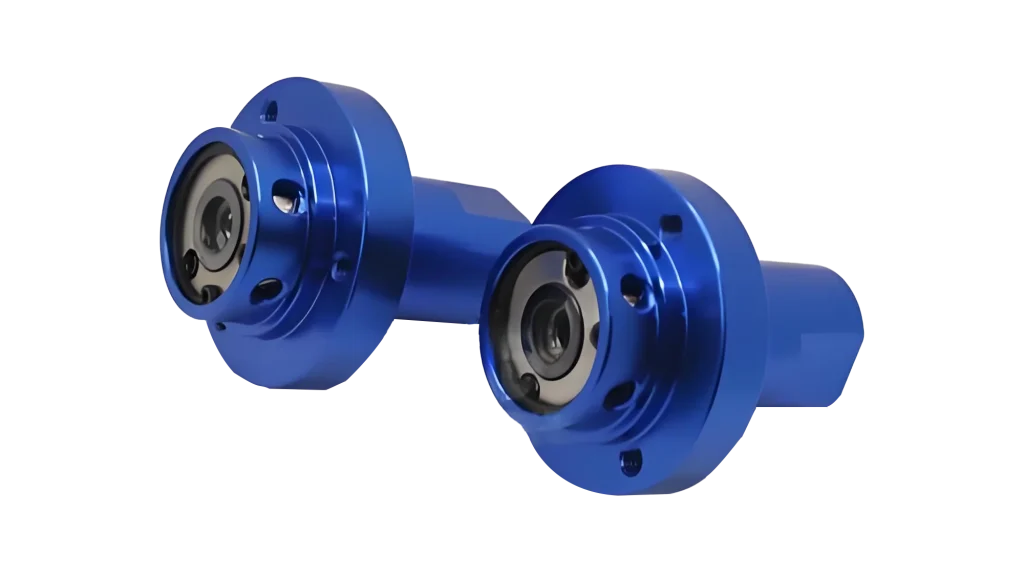

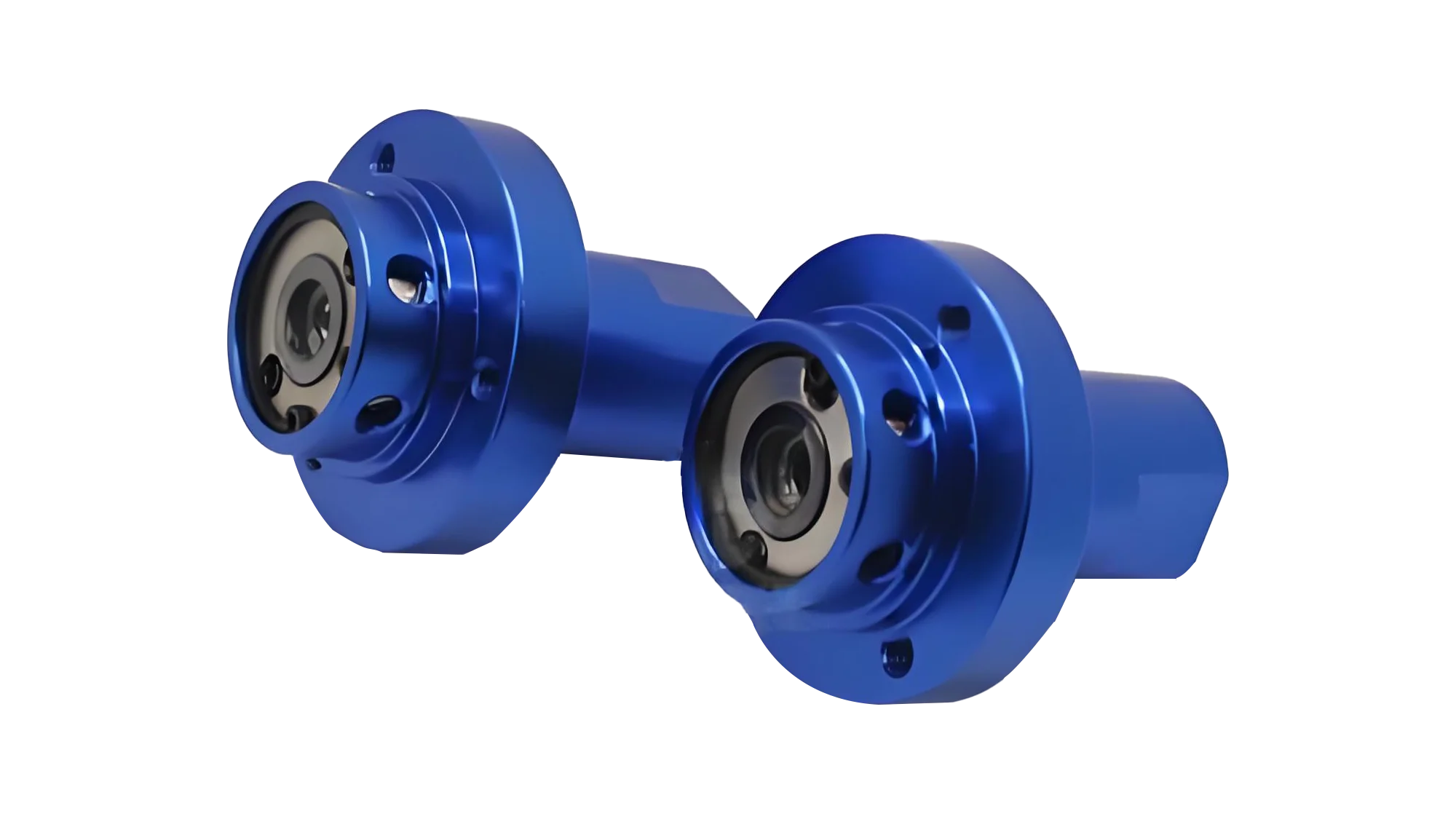

1154-002-133 swivel union

1154-002-133 rotary joint is a 1154 series high-speed bearingless rotary joint. This model is designed for high-precision, high-speed industrial applications and belongs to a single channel fluid transmission device. Its core feature is the adoption of a bearingless design, which achieves dynamic sealing between fixed pipelines and rotating components through a precise sealing structure, making it particularly suitable for machining scenarios with extremely high requirements for speed and response speed.

Origin: Shandong
Voltage resistance: 3.0MPA
Customized processing: Yes
Whether to import: No
Material: Aluminum alloy
Installation form: threaded
Temperature resistance: -30~+80 ℃
Speed: 20000r/min
Media: hydraulic oil, water, coolant
1154 type bearingless coolant joint features:
——Single channel design
——Small structure
——Axial shell connection
——Balanced mechanical seal
——Sealing combination: Silicon carbide/Silicon carbide
——Discharge outlet
——Full medium fluid form
——Anodized aluminum shell
——Steel rotor
