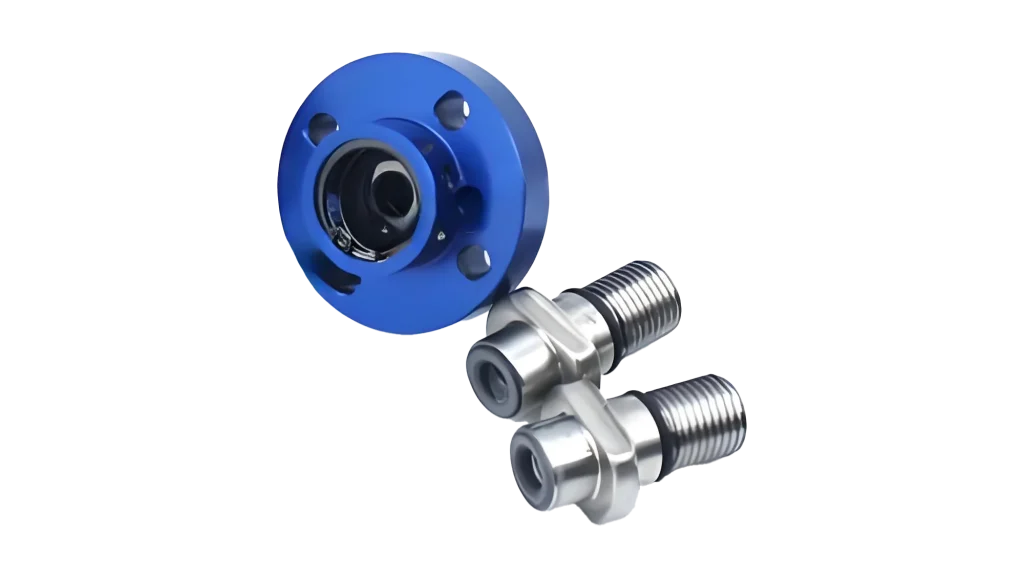

1154-002-109 rotary joint

1154-002-109 is 1154 series bearingless rotary joint. This series of products is designed for high-speed and high-precision fluid transmission applications, using an innovative bearingless structure that eliminates the mechanical bearing support in traditional rotary joints, significantly reducing frictional resistance and achieving extremely high speed performance. The core design concept is to ensure long service life and low maintenance costs under harsh working conditions through enclosed sealing technology and automatic sensing mechanism.

Voltage resistance: 3.0MPA
Customized processing: Yes
Whether to import: No
Material: Aluminum alloy
Installation form: threaded
Temperature resistance: -30~+80 ℃
Speed: 20000r/min
Media: hydraulic oil, water, coolant
Single channel coolant or compressed air
The patented automatic sensing technology can automatically switch between closed sealing and controlled leakage based on the medium
Non rotating components have a “stroke” (axial movement) of over 8mm, and even if the joint is installed on the clamping mechanism, it can follow the full flow design of the pull rod without generating debris or burrs to block it
Balanced mechanical seal, made of silicon carbide material, can extend its service life even under harsh working conditions
Anti corrosion anodized aluminum shell
