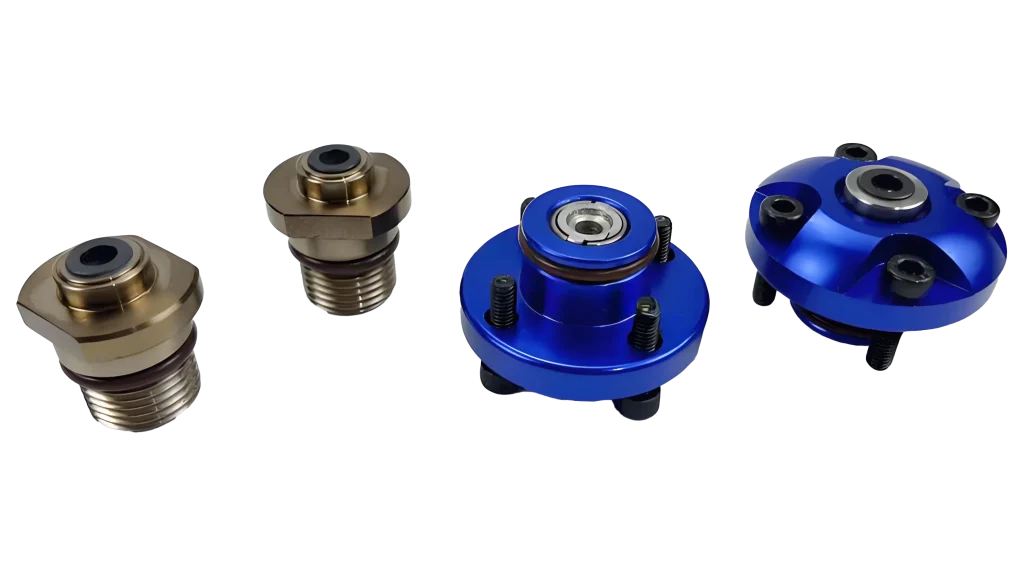

1154-002-105 swivel union

1154-002-105 rotary joint is the 1154 series high-speed rotary joint produced by our company. This model is designed specifically for coolant and air media, using a bearingless structure and patented “AutoSense” automatic sensing technology. Its core feature is the ability to automatically switch between closed sealing and leak control operation modes based on the type of medium, suitable for applications such as high-speed and high-precision machine tool spindle center water discharge.

Origin: Shandong
Voltage resistance: 3.0MPA
Customized processing: Yes
Whether to import: No
Material: Aluminum alloy
Installation form: threaded
Temperature resistance: -30~+80 ℃
Speed: 20000r/min
Media: hydraulic oil, water, coolant
Non standard customized products are for personal customization. Once produced, returns and exchanges are not supported. Please carefully review or communicate with customer service before placing an order.
If there are special requirements, they can be customized. The delivery time will increase by 3-15 days and the cost will increase by 5% -50%. Most of our basic accessories are standardized, modular, and non-standard customized, which can greatly reduce costs and delivery time.
1154 type bearingless coolant joint features:
Single channel design
• Small structure
Axial shell connection
• Balanced mechanical seal
Sealing combination: Silicon carbide
• Discharge outlet
• All medium fluid form
• Anodized aluminum shell
• Steel swivel
