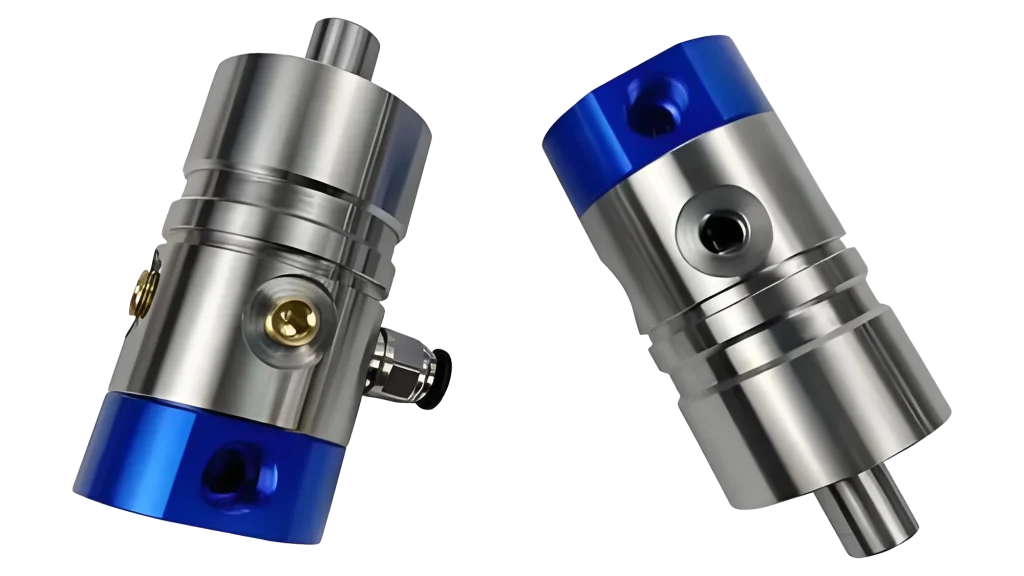

1111-002-105 swivel union

1111-002-105 rotary joint is a high-performance detachable coolant rotary joint designed specifically for machine tool spindle center water outlet (TSC) and high-speed machining applications. It features a bearingless structure, high-speed capability, and compact design, and is widely used in the field of precision machining.

Origin: Shandong
Customized processing: Yes
Whether to import: No
Scope of application: Machine tool processing
Connection form: Thread
Material: Stainless steel
Pressure: 8.0MPA
Temperature: 80 ℃
Speed: 20000r/min
Media: hydraulic oil, water, coolant
Oil mist: 10 bar
High speed spindle center water outlet rotary joint: a fluid medium conveying product developed using a “detachable seal” structure, deep hole machining, and automation control applications. Its function is to transfer fluid (gas or liquid) medium from a relatively stationary pipeline to rotating components. The processing process from raw materials to finished products is completed in one clamping, ensuring that the concentricity between the rotating shaft and the shell is within 0.005mm, effectively ensuring that the product’s runout during high-speed rotation (up to 30000 RPM) is strictly controlled; This product adopts a balanced sealing structure, and the sealing pair is made of wear-resistant tungsten carbide material. It is matched with imported high-precision bearings for more stable and vibration free operation.
Two precision bearings support smooth operation;
Higher pressure bearing capacity;
Sealing technology;
There is no leakage under high-speed and high-pressure conditions;
Safe and reliable, with a long lifespan
