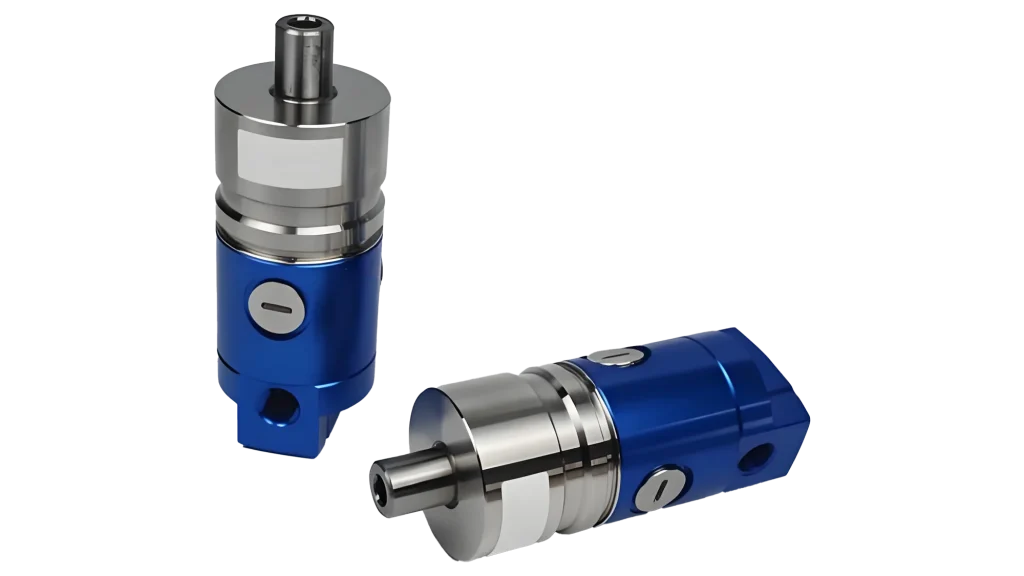

1109-710-730-swivel union

High speed rotary joint is an industrial rotating component with a working speed of usually up to 3000rpm, and some products can reach a speed of 20000-50000RPM. It is used to transport fluid media from fixed pipelines to rotating equipment and is mainly used in 12 industries including papermaking, rubber, chemical, plastic, textile, printing and dyeing, steel and iron, metallurgy, pharmaceuticals, drying, food, woodworking, etc. Its presence can be seen in almost all processing and manufacturing industries, as well as in metal, machine tool, electrical, energy and other processing and manufacturing industries. It can transmit media such as air, coolant, hydraulic oil, heat transfer oil, etc. and support 1-42 channel combinations

Origin: Shandong
Customized processing: Yes
Whether to import: No
Sales area: National
Scope of application: Machine tool processing
Connection form: Thread
Material: Stainless steel
Pressure: 8.0MPA
Temperature: 80 ℃
Speed: 20000r/min
Media: hydraulic oil, water, coolant
Oil mist: 10 bar
In high-speed operation without coolant, the heat generated on the seal becomes a challenge. This rotary joint is equipped with an automatic sealing operation/closing device, and can even be used for high-speed operation without coolant. This seal adopts a unique sealing shape, which can not only be used for ultra high speed drying operation, but also can be used together with high-pressure coolant to achieve leak free operation.
Structural characteristics:
Single channel coolant or MQL (oil mist);
Closed sealing, automatic production line for similar applications;
Full flow design, no debris or burr blockage;
The bearing supports a threaded rotor for easy installation;
Deep groove ball bearings ensure smooth operation
