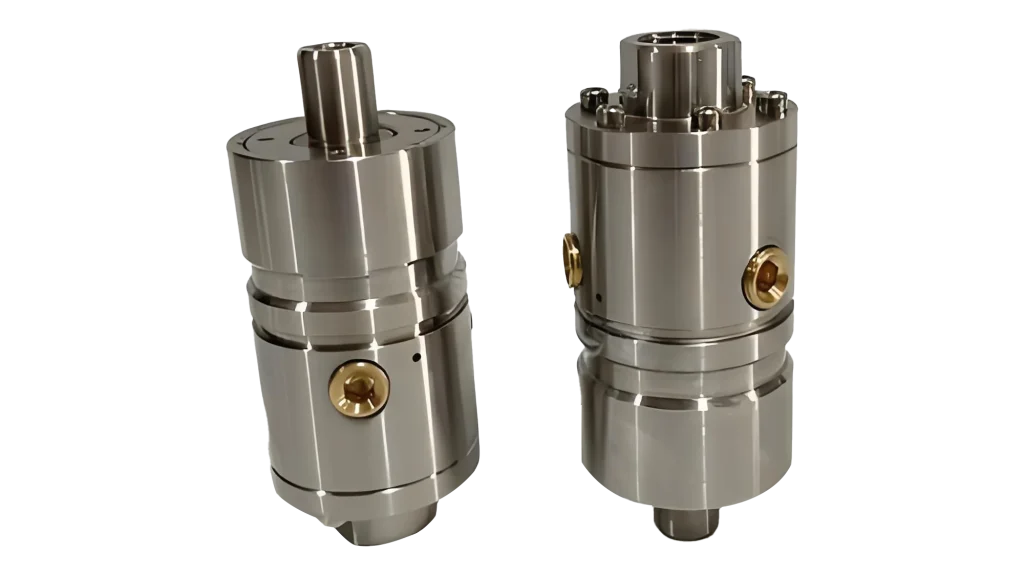

1109-710-717 swivel union

The 1109-710-717 rotary joint is a high-performance single channel rotary joint designed specifically for industrial automation machine tools, metallurgy, petroleum and rubber processing equipment. This model belongs to the 1109 series hole installation type center outlet joint, which adopts the original American import standard and has high-speed operation stability and long-life sealing characteristics. It is widely used in the transmission scenarios of coolant or micro lubrication (MQL) media.

Origin: Shandong
Customized processing: Yes
Whether to import: No
Sales area: National
Scope of application: Machine tool processing
Connection form: Thread
Material: Stainless steel
Pressure: 8.0MPA
Temperature: 80 ℃
Speed: 20000r/min
Media: hydraulic oil, water, coolant
Oil mist: 10 bar
Machine tool specific center water outlet rotary joint, high-speed series, mainly used for CNC machine tool spindle tail center water outlet, high clearance extrusion, labyrinth waterproof seal, can prevent vertical installation leakage water from flowing into the bearing, causing bearing rust, precision bearing support, no need for lubrication for life, 2 sets of small springs provide balanced spring force; Anti impurity sealing surface structure, made of high-quality materials, durable and sturdy high-quality products, each product undergoes strict testing and inspection before leaving the factory, using high-quality materials such as stainless steel, silicon carbide, hard alloy, etc.
Single channel coolant or MQL;
Detaching from M technology allows for no medium idle without medium pressure;
Allow the axial movement of the pull rod to be greater than 19 millimeters;
Full flow design with no obstacles to intercept chips or debris;
Hole installation design, easy to install;
Matched ISO grade P4 hybrid ball bearings can achieve high-speed and smooth operation.
Maze system and large vent can protect ball bearings;
