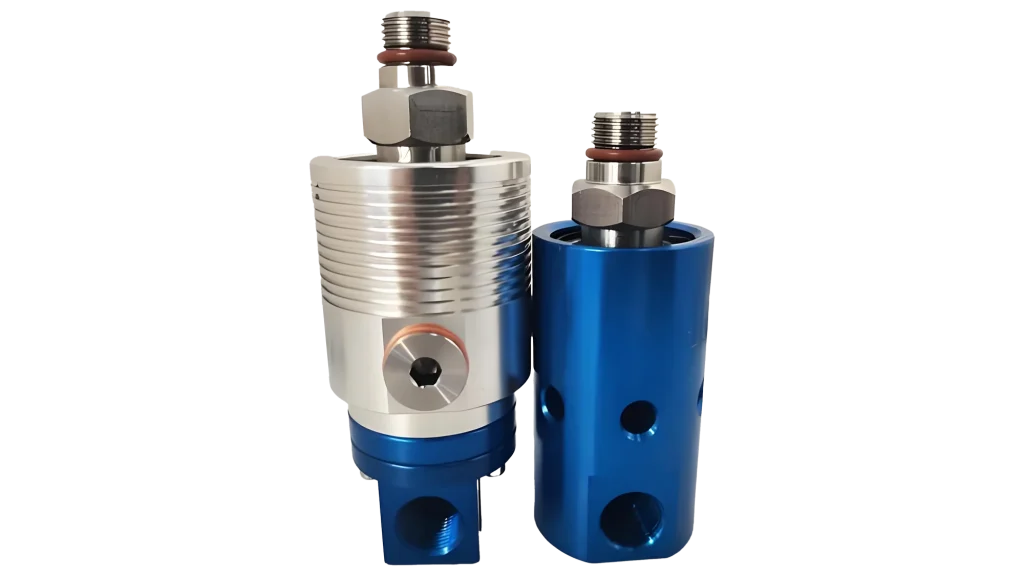

1109-041-188 swivel union

1109-041-188 rotary joint is a single channel, bearing supported, with “Pop Off ™” The cooling liquid or micro lubrication (MQL) rotary joint of dry operation protection technology adopts silicon carbide/silicon carbide mechanical seal and anodized aluminum shell, suitable for high-speed, medium and high pressure working conditions. ‌‌

Structural features: Made of corrosion-resistant materials, specially designed to operate in limited conditions without damaging the joints, the sealed rolling bearings do not require lubrication for life, and the balanced sealing load and wear are reduced to the limit, reducing torque. The sealing material has self-lubricating properties, and the spring component is located on the outside of the fluid channel, which can reduce pressure loss and avoid particle retention in the medium. Overall, it improves the quality of the fluid and is suitable for water, hot oil, and steam applications. The stainless steel outer tube is corrosion-resistant, with a longer service life and complete and uniform flow design. The pressure loss is small, and two precision imported bearing supports ensure long-term fault free operation. The balanced mechanical seal design reduces the wear of the sealing surface caused by the sealing load, greatly extending the service life.
