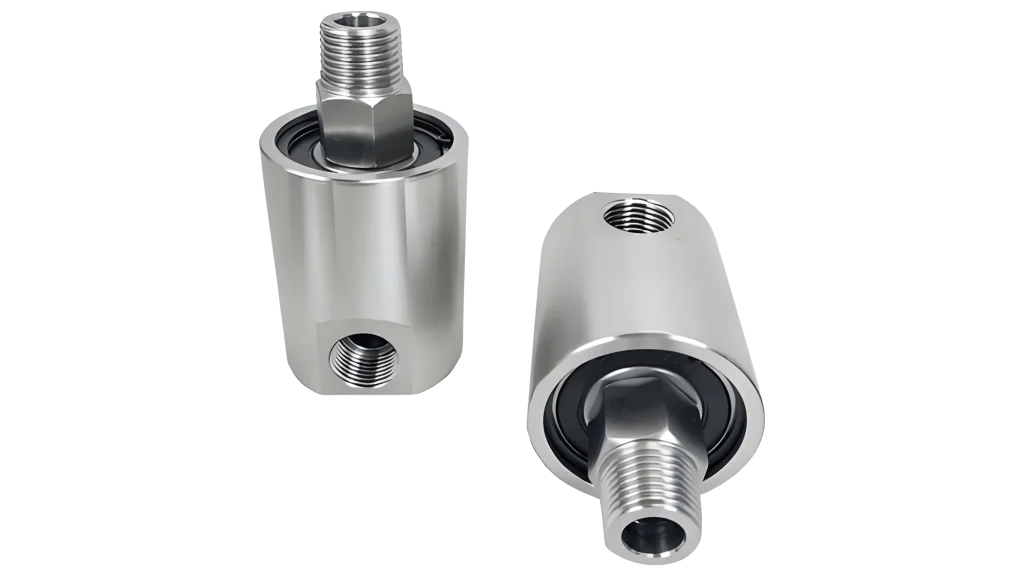

1109-024-212 swivel union

1109-024-212 is a single channel rotary joint designed specifically for machine tool coolant or micro lubrication (MQL/MMS) applications. This model belongs to the 1109 series and is known for its compact design, high reliability, and advanced sealing technology. It is widely used in industrial rotating equipment that requires high-precision fluid transmission

The sealing mating surface is selected according to customer needs
The external pipe has threads or quick change flange connection method, which has strong installation flexibility
The shell is equipped with oil injection nozzles for reasonable maintenance of bearings, extending their service life
The shell is equipped with observation holes to observe leakage and wear conditions for timely maintenance measures
The air type adopts aluminum or aluminum alloy and copper shell, which has the advantage of good heat dissipation performance under high-speed transmission,
Aluminum alloy shell, equipped with imported SKF and TIMKEN bearings, impregnated graphite rings, 304 stainless steel silicon carbide shaft, and wear-resistant fluorine rubber O-ring, suitable for high-speed rotating equipment, making it more wear-resistant and have a longer service life!
