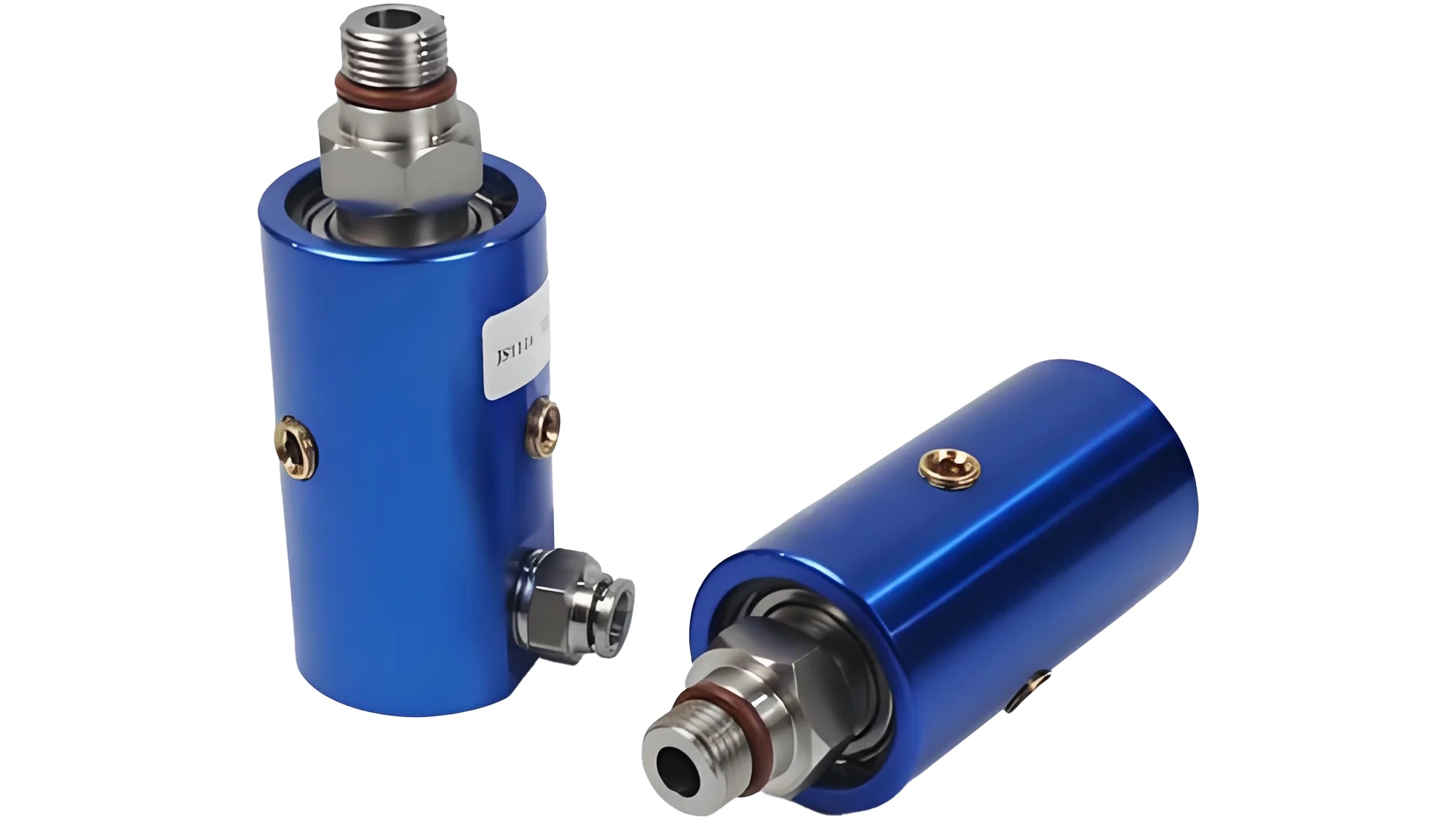

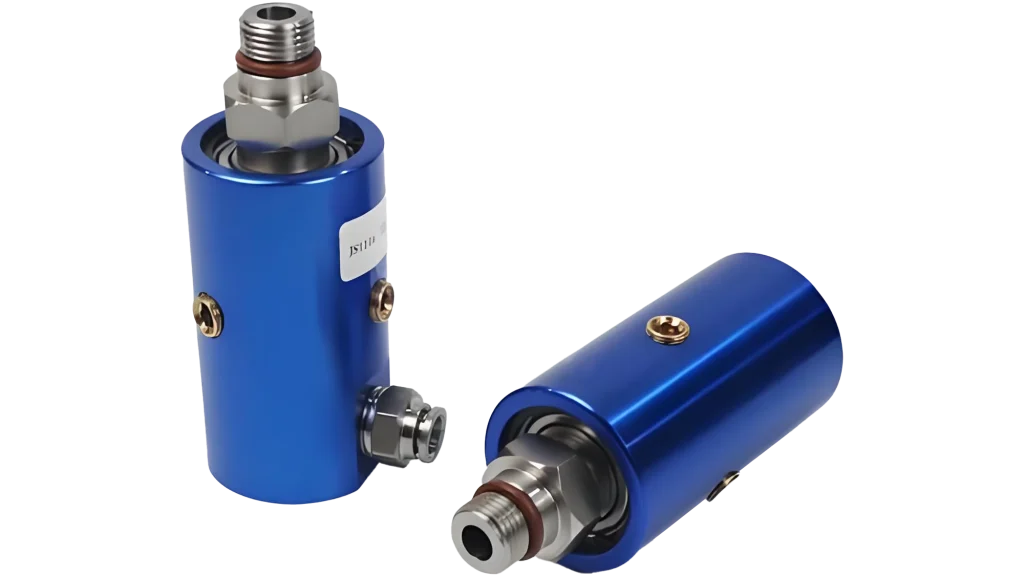

1101-265-343 rotary joint is a single channel, closed sealed, radially connected coolant rotary joint belonging to the 1101 series, suitable for coolant or micro lubrication (MQL) applications on high-speed machine tool spindles
Water based coolant: 1523 PSI 70 bar
MOL (oil mist): 145 PSI 10 bar
High flow rate: 21.6 GPM 82 l/min
High temperature: 71 ° C
Working parameters:
Medium: MQL, coolant
Rotor connection: 16×1.5 LH, 17.993 mm pilot
Supply connection: 3/8 “-19 PT
Coolant flow rate: 24.3 l/min
Coolant pressure: 103.4 bar
Coolant temperature: 71 ° C
MQL flow rate: 49.8 l/min
MQL pressure: 10 bar
MQL temperature: 71 ° C
Single channel for coolant or MQLClosed seal for automatic lines and similar applications
Full flow design, unobstructed passage, avoiding residual impurities
The threaded rotor supported by bearings is easy to install
Deep groove ball bearings operate smoothly
Maze structure and multiple large leakage ports to protect ball bearings
The balanced mechanical seal uses silicon carbide, which has a long service life, even under harsh operating conditions
Anodized aluminum parts for corrosion resistance
A rotary joint is a sealing device that connects stationary pipelines and rotating equipment, achieving leak free fluid transmission under 360 ° rotation. It allows fluid media to flow smoothly between fixed pipelines and rotating machines, and is a key component in industrial equipment
