Understanding the Functionality of Rotary Joint

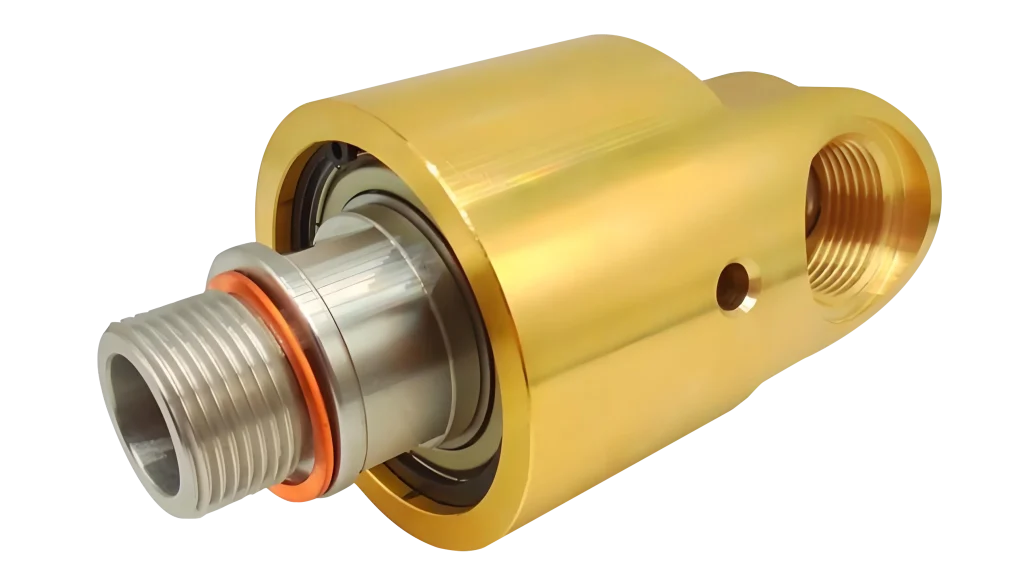

Have you ever wondered how complex industrial machines manage to transfer fluids without a single drop spilling, even while rotating at breakneck speeds? The secret lies in rotary joints. These vital components act as the secure bridge between stationary supply pipes and moving equipment parts, ensuring seamless, continuous operation. At the core of fluid transfer systems in rotating machinery, advanced mechanical seal technology allows these connections to safely contain liquids and gases under immense pressure and varying temperatures.

Demystifying Rotary Connections

Often referred to as rotary unions or swivel joints, these devices come in various builds tailored to specific engineering needs. When comparing rotary union vs swivel joint applications, it is helpful to note that rotary unions are typically engineered for continuous, high-speed rotation, whereas swivel joints excel in slower, articulating, or oscillating movements, such as in loading arms.

Understanding mono-flow vs dual-flow configuration differences is equally crucial during the specification process. Mono-flow designs allow fluid to enter and exit through a single, straightforward path. Conversely, dual-flow configurations permit the simultaneous supply and return of media through concentric pipes. For highly complex automated setups requiring the management of multiple independent fluid lines, engineers rely on a precision multi-passage hydraulic distributor design to keep different media strictly isolated while spinning.

Industrial Applications and Material Selection

Choosing the right rotary equipment depends heavily on the operating environment. For instance, selecting the right seal material for thermal oil—such as specialized graphite or fluoroelastomers—is critical to withstand extreme heat safely. On the other hand, transferring aggressive acids requires specifying corrosion resistant alloys for chemical processing to prevent rapid internal degradation.

You will find these rugged components powering a vast array of sectors. They are integral to the industrial applications of steam manifold systems used in textile and paper manufacturing, just as they are vital for the high-pressure water coolant transfer solutions that keep deep-hole CNC machining centers running efficiently.
