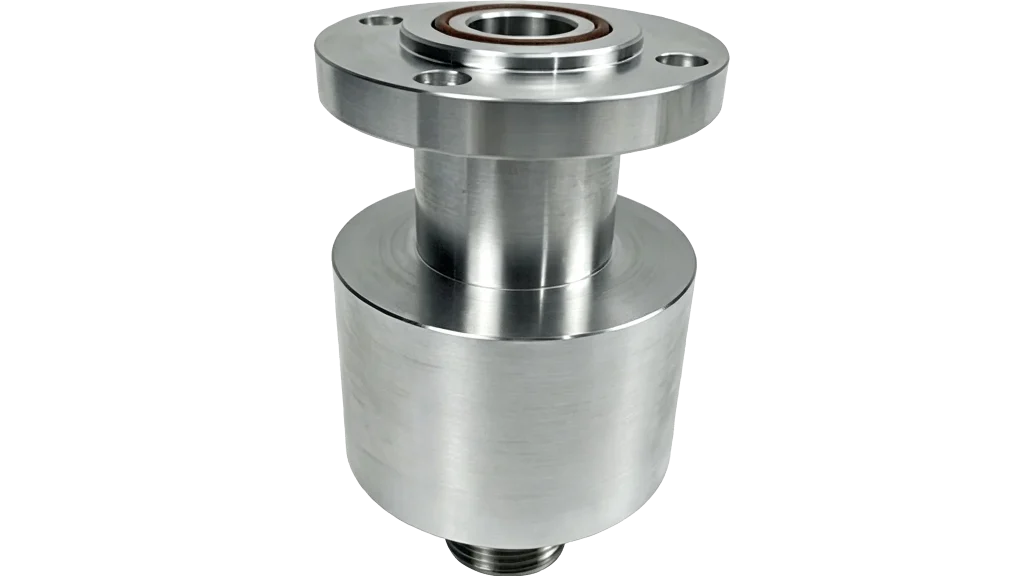

Pneumatic punch rotary joints

Pneumatic Rotary Joint is a sealed connection device specifically designed to transfer compressed air from a stationary air source system to a high-speed rotating punch drive shaft or clutch system. As a key component of the pneumatic friction clutch for punching machines, it solves the problems of entanglement, wear, and leakage of traditional hose connections during 360 degree continuous rotation, ensuring stable operation of the punching machine under high-frequency and high-speed working conditions

Brand: SD
Customized processing: Yes
Connection method: thread, flange
Pressure: ≤ 1.0MPa
Temperature: ≤ 180 ℃
Speed: ≤ 1500rpm
Media: gas, oil, hot water, high temperature, high pressure steam
Nominal diameter: supports customization (mm)
Place of Origin: China
Product: High speed punch rotary joint
Product features: Corrosion resistance, high strength
Material: stainless steel, brass, carbon steel
Item number: JSASF
Marketable location: Nationwide
Applicable industries: food, textile, electrical appliances, automobile manufacturing, conveying equipment, shipbuilding industry, home decoration and building materials
Two precision imported bearings support to ensure long-term trouble free operation;
Balanced mechanical seal design reduces the wear of the sealing surface caused by sealing load, greatly extending the service life;
Optimal sealing mating surface, selected according to customer needs;
The outer pipe has threaded or quick change flange connection, which provides strong installation flexibility;
The shell is equipped with an oil injection nozzle, which ensures proper maintenance of the bearings and extends their service life;
The product is made of 304F stainless steel material, which is acid and alkali resistant, sturdy and durable;
Precision machining with seamless fit, seamless use without welding is safer and more reassuring;
304 stainless steel, rust and corrosion resistant, non rusting, wear-resistant and non deformable, not afraid of outdoor sun and rain exposure;
Exquisite workmanship and quality assurance, with no burrs on the threads and smooth edges, excellent workmanship and quality assurance.
