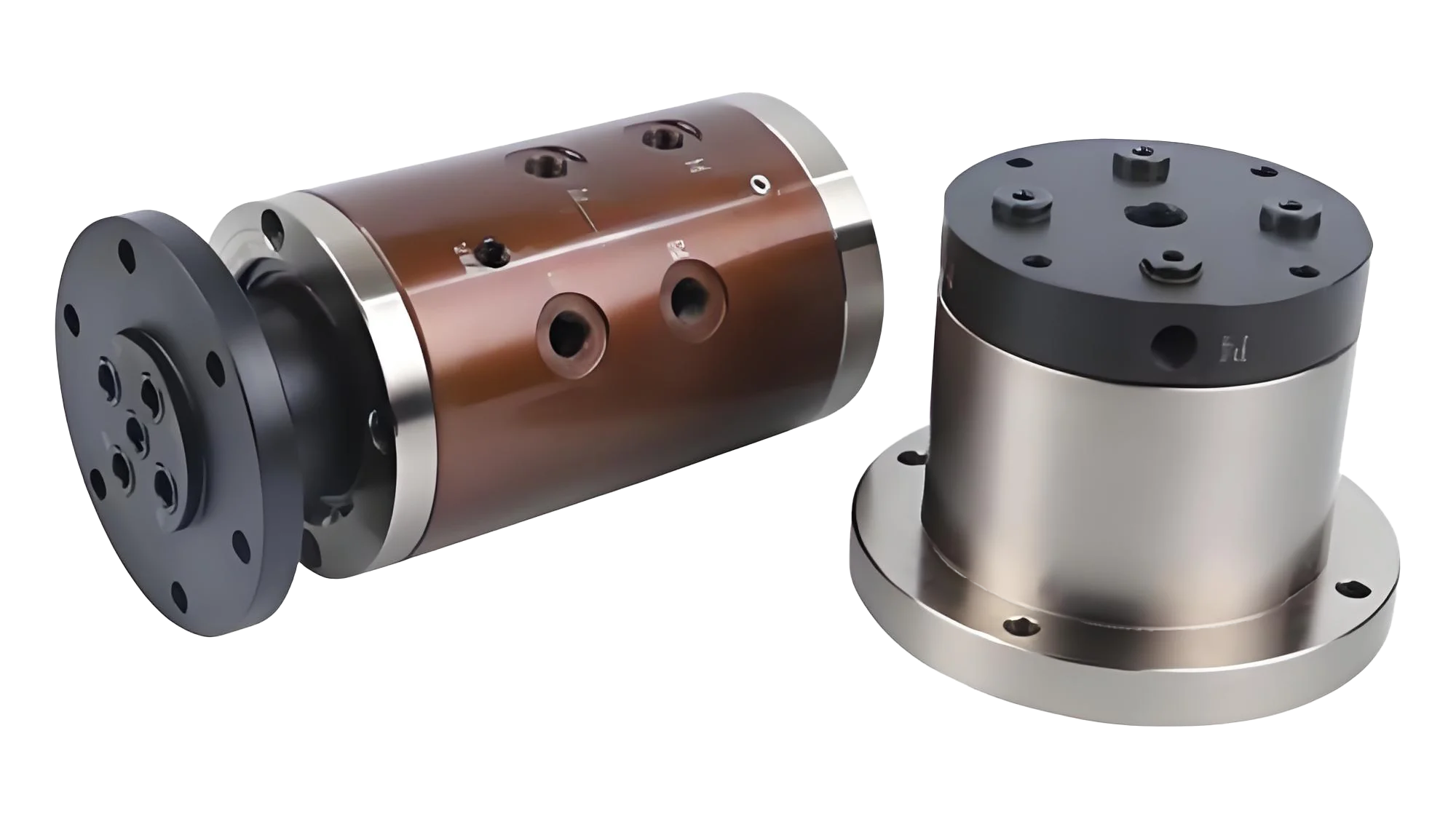

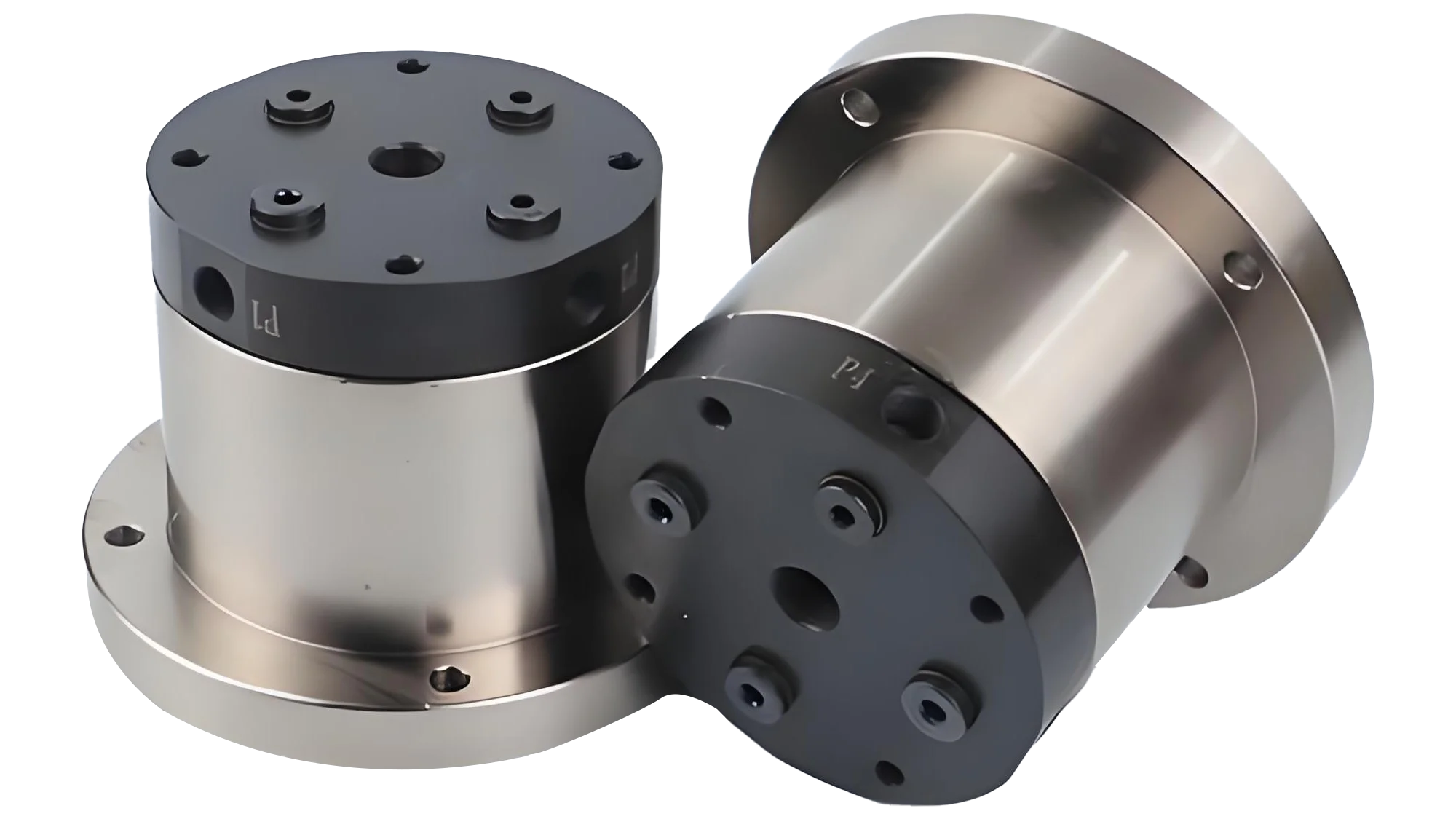

Three liquid one gas rotary joints

The “three liquid one gas” rotary joint belongs to a specific configuration form of multi-path fluid rotary connectors, usually referring to the integration of three independent liquid channels and one independent gas channel inside a compact joint housing. This design aims to solve the technical problem of transmitting multiple different media (such as cooling water, hydraulic oil, cutting fluid and other liquids, as well as compressed air and other gases) during the 360 degree infinite rotation process of rotating equipment.
Its core function is to safely and stably transport fluid media from fixed pipelines to rotating or swinging equipment components, achieving dynamic sealing connections. By designing independent internal pipelines, it ensures that each channel does not interfere with each other and has zero leakage, simplifying the system structure, avoiding hose entanglement, and improving the reliability and space utilization of equipment operation.

K series high-speed high voltage
Multi channel rotary joint
The K series rotary joint is
one
Specially designed for medium and high speeds
High voltage multi-channel equipment
one
Type of rotary joint, serving
Workstation, Volume Retrieval
Machines, wind turbines, centrifuges, and multi-channel high-voltage control
Equipment such as makers
Product Features:
one
Two wide and high-precision bearings support smooth operation, bearing
Lifetime maintenance free;
two
Gap labyrinth sealing structure, no contact wear of sealing rings,
Ensure long-term trouble free operation of the product;
three
Lower rotational torque;
four
Adopting a gap sealing structure, there is no frictional heat generation during high-speed operation
Birth;
five
Detachable liner structure design reduces maintenance costs by 45%;
six
The rotational torque is not affected by working pressure and temperature;
seven
The working range of the speed is wide, and it can reach up to at high speeds
3000RPM;
Machining center rotating worktable, hydraulic
