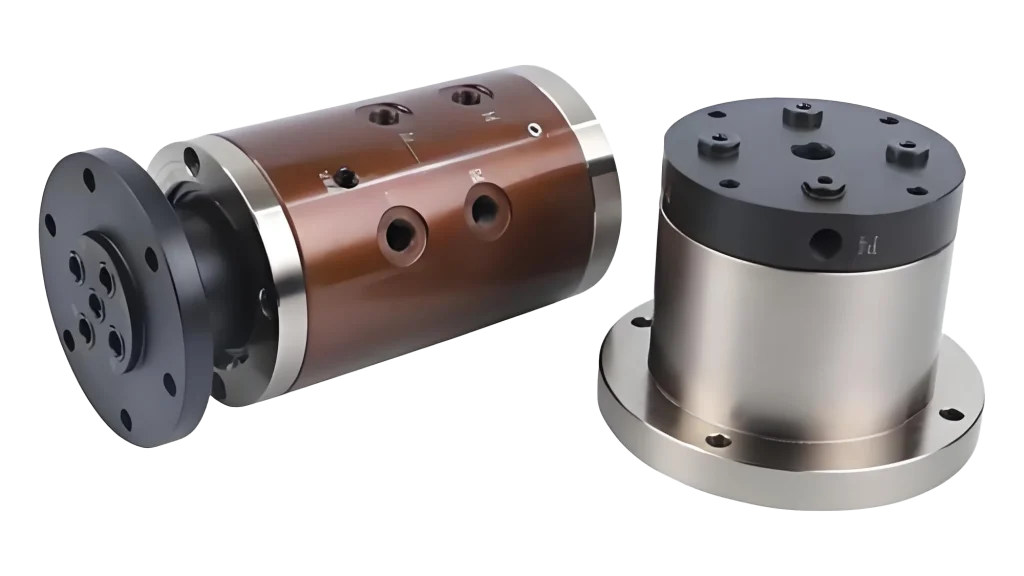

Gap labyrinth rotary joints

K series high-speed high voltage
Multi channel rotary joint
The K series rotary joint is
one
Specially designed for medium and high speeds
High voltage multi-channel equipment
one
Type of rotary joint, serving
Workstation, Volume Retrieval
Machines, wind turbines, centrifuges, and multi-channel high-voltage control
Equipment such as makers
Product Features:
one
Two wide and high-precision bearings support smooth operation, bearing

Gap labyrinth rotary joint is a fluid transmission device that adopts non-contact sealing principle. It forms flow resistance through carefully designed multi-stage tortuous micro gaps between the rotating and stationary parts, thereby achieving low leakage medium transportation under high-speed rotating conditions. ‌‌

Lifetime maintenance free;
two
Gap labyrinth sealing structure, no contact wear of sealing rings,
Ensure long-term trouble free operation of the product;
three
Lower rotational torque;
four
Adopting a gap sealing structure, there is no frictional heat generation during high-speed operation
Birth;
five
Detachable liner structure design reduces maintenance costs by 45%;
six
The rotational torque is not affected by working pressure and temperature;
seven
The working range of the speed is wide, and it can reach up to at high speeds
3000RPM;
Machining center rotating worktable, hydraulic
Technical parameters:
High speed: 3000 r/min
Temperature range:
–
thirty
～+80℃
High pressure: 21Mpa
Working medium: hydraulic oil and other fluid media
