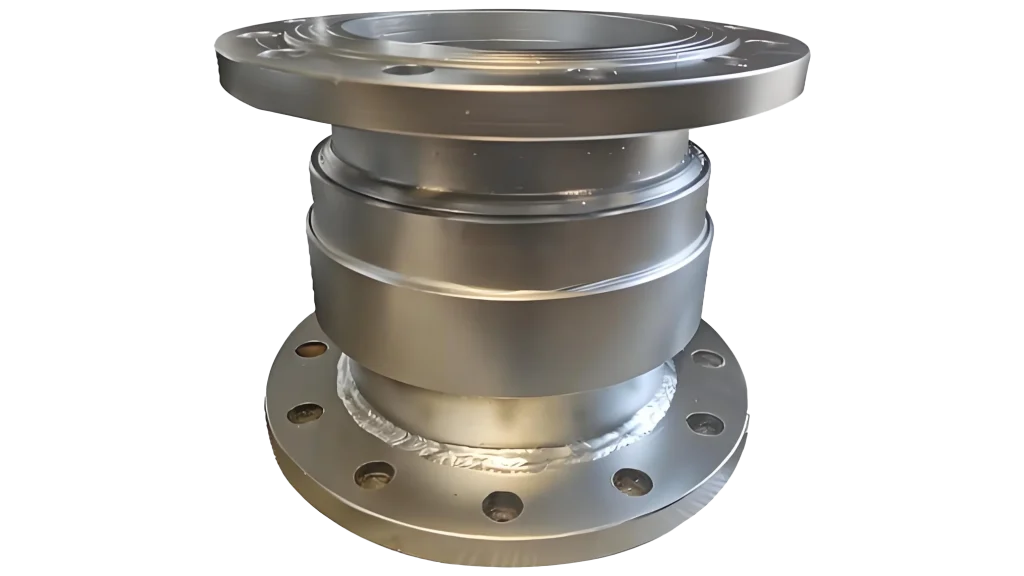

A flange type rotatable joint is a critical fluid dynamic sealing device used to transport fluid media (such as gas, liquid, oil, steam, etc.) from fixed pipelines to rotating or swinging equipment
A flange type rotatable joint is a critical fluid dynamic sealing device used to transport fluid media (such as gas, liquid, oil, steam, etc.) from fixed pipelines to rotating or swinging equipment. Its core function is to achieve stable transmission and sealed isolation of the medium while maintaining 360 ° continuous rotation
Product Introduction: Structural Features: It is used for the active connection of fluid media between steel pipelines to achieve reciprocating or low-speed rotational motion. It has high wear resistance, flexible rotation, strong support capacity, and is sealed with American Parker seals, which have good sealing performance. When conveying pressure fluids, rotating machines, etc., this type of rotary joint is used in situations where bending and shaking of the pipeline is required, or when performing three-dimensional movements of up, down, left, right, and front hand at 360 ℃. The reciprocating swing rotary joint is specifically used for the active connection of fluid media between steel pipelines. Its internal structure is directly supported by high-precision ball bearings, which can rotate back and forth or at low speed, with high wear resistance, flexible rotation, strong support ability, and imported seals with reliable sealing performance. Widely used in metallurgy, petrochemicals, shipbuilding, rubber, and papermaking
Structural features:
It is used for the active connection of fluid media between steel pipelines to achieve reciprocating or low-speed rotational motion. It has high wear resistance, flexible rotation, strong support capacity, and is sealed with American Parker seals, which have good sealing performance.
.
When conveying pressure fluids, rotating machines, etc., this type of rotary joint is used in situations where bending and shaking of the pipeline is required, or when performing three-dimensional movements of up, down, left, right, and front hand at 360 ℃. The reciprocating swing rotary joint is specifically used for the active connection of fluid media between steel pipelines. Its internal structure is directly supported by high-precision ball bearings, which can rotate back and forth or at low speed, with high wear resistance, flexible rotation, strong support ability, and imported seals with reliable sealing performance.
Widely used in various industries such as metallurgy, petrochemicals, shipbuilding, rubber, and papermaking for the dispersion of fluid media.
Usage conditions:
Pressure: 3MPA
Speed: 30RPM
Temperature: 220 degrees Celsius
Medium: steam, oil, water, hot air, etc;
The connection method and size can be manufactured according to user requirements
ZLXJ-007 type& ZLXJ-008 type flange rotary joint
ZLXJ-007 type
Maximum pressure: 1.2MPa
Maximum speed: 80rpm
Maximum temperature: 40 ℃</ span>
