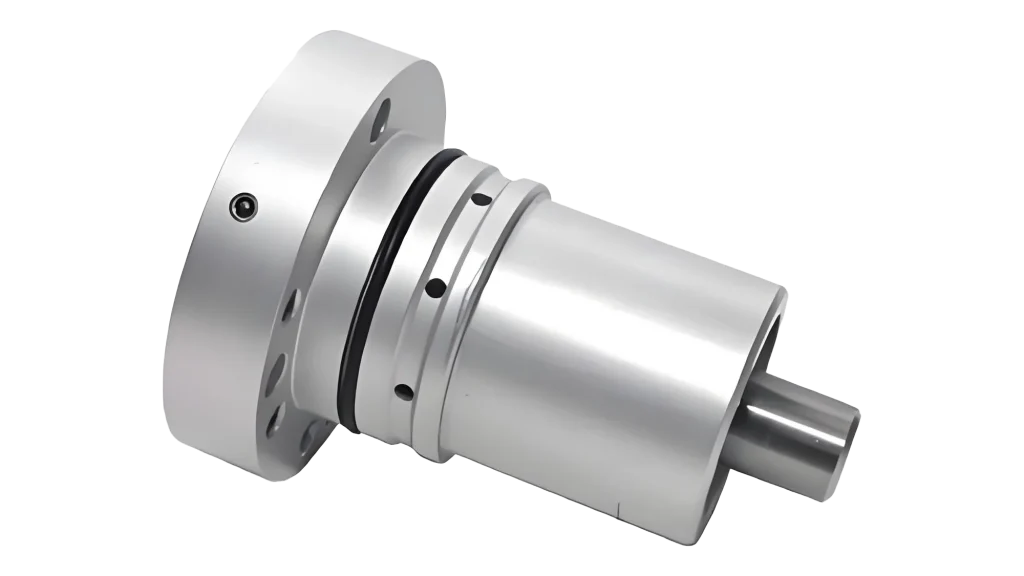

Flange connection SRJ01-2005

SRJ01-2005 belongs to single or double path high-speed rotary joints, designed specifically for spindle cooling systems in CNC machine tools and machining centers. Its core function is to transport cutting fluid, hydraulic oil, or air from a stationary pipeline to the interior of a high-speed rotating spindle, in order to achieve tool cooling, chip removal, or pneumatic clamping. Domestic substitute models usually have installation dimensions and performance parameters that are completely interchangeable with SKT original products, focusing on solving the problems of high cost and long delivery time of imported accessories

Sealing performance: Alternative products often use silicon carbide for silicon carbide or tungsten carbide sealing pairs, with a leakage rate of ≤ 0.01 mL/min, supporting dry rotation protection (automatic sealing surface closure), and compatible with water-based and oil-based cutting fluids.
Material and temperature resistance: The shell/rotor is mostly made of 304/316L stainless steel, with sealing components made of fluororubber or PFE. It can withstand temperatures ranging from -20 ℃ to 150 ℃ during continuous operation (up to 200 ℃ in a short period of time); High end alternatives such as Mo Sheng and Jin Huan can withstand higher temperatures (≥ 200 ℃) and require customization.
It can operate at high speed without any medium, thanks to the automatic closing sealing device;
Silicon carbide sealing: can work for a long time under harsh conditions;
Stainless steel rotors can prevent rust, corrosion, cold and heat.
