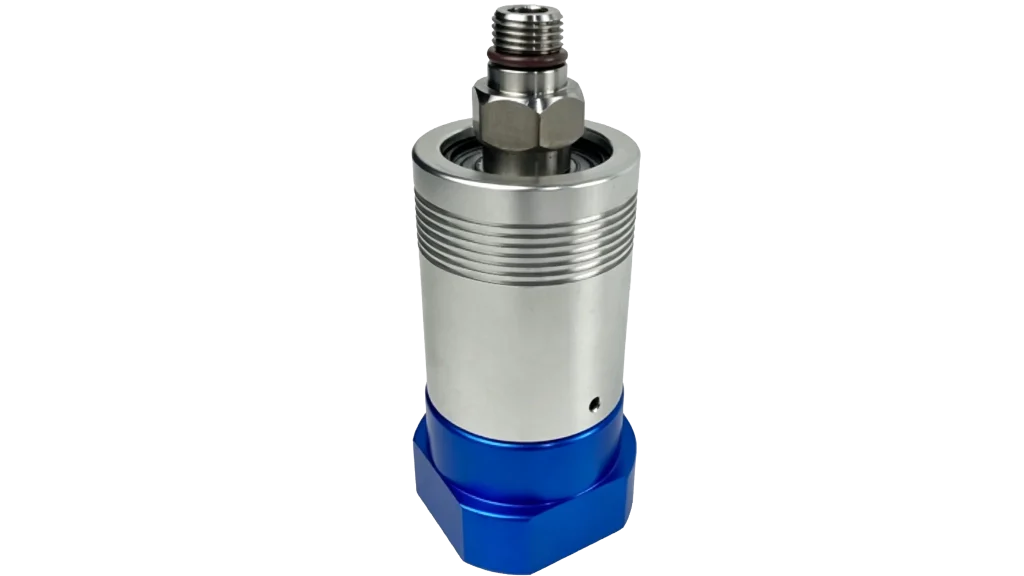

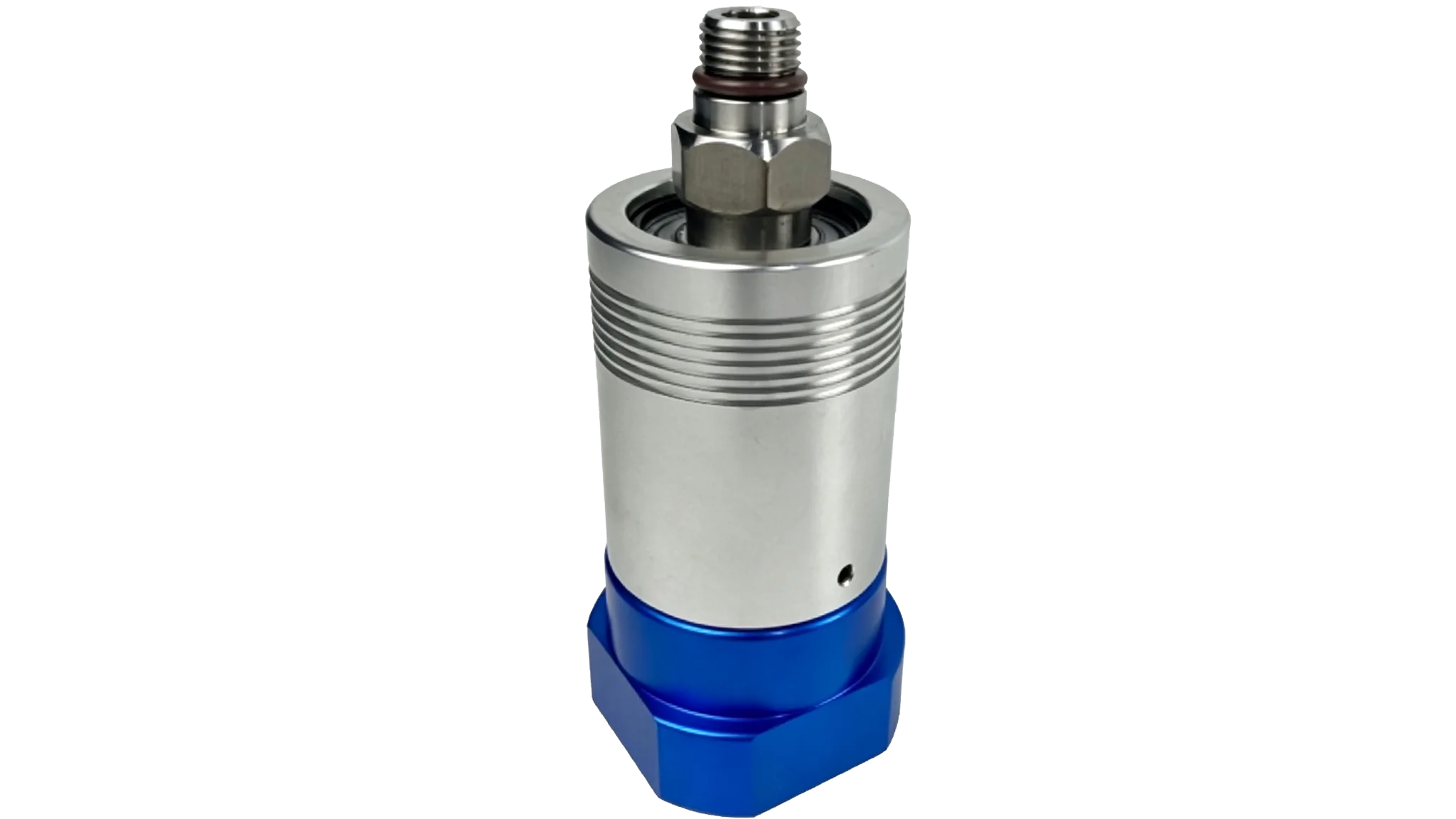

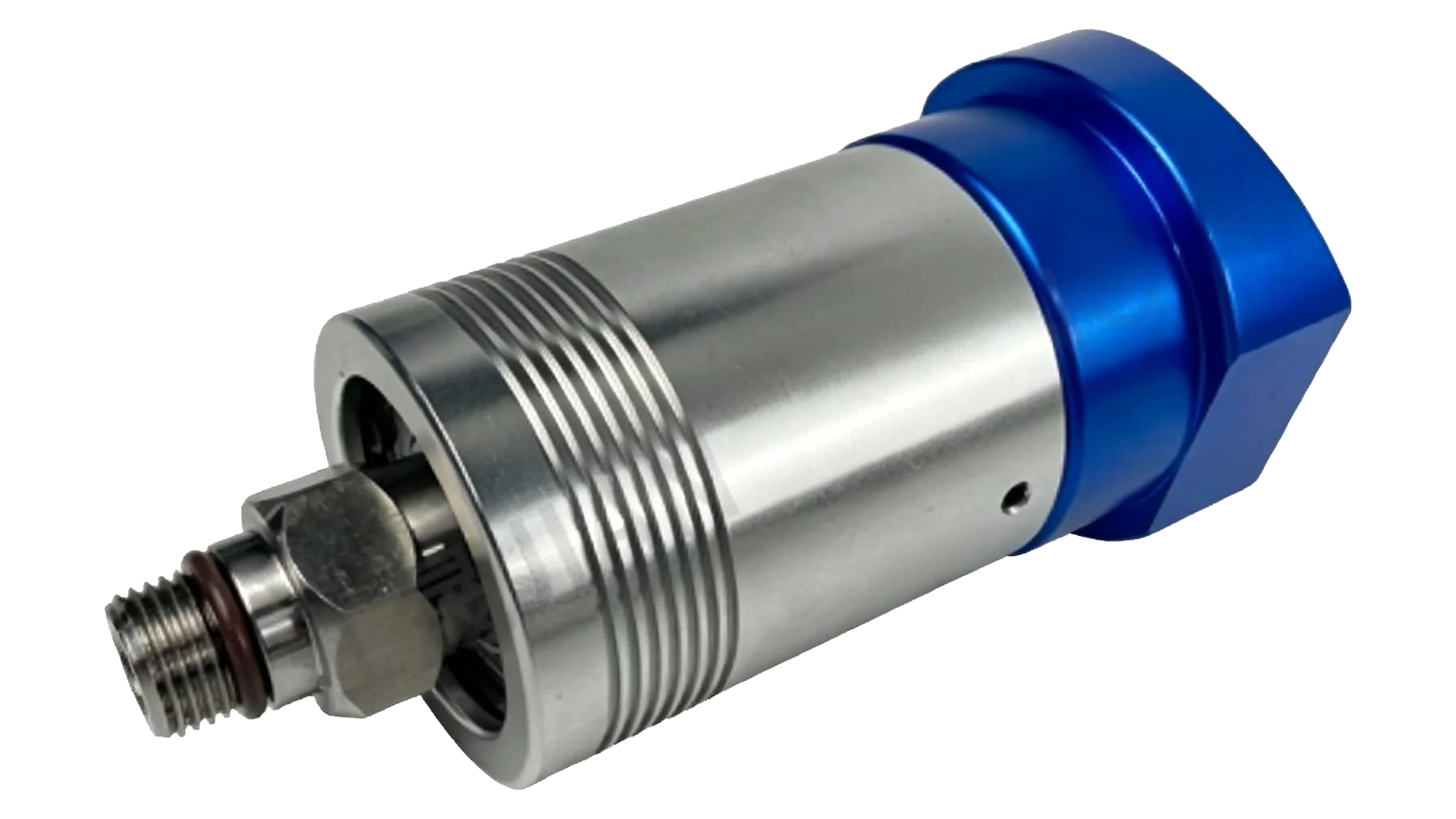

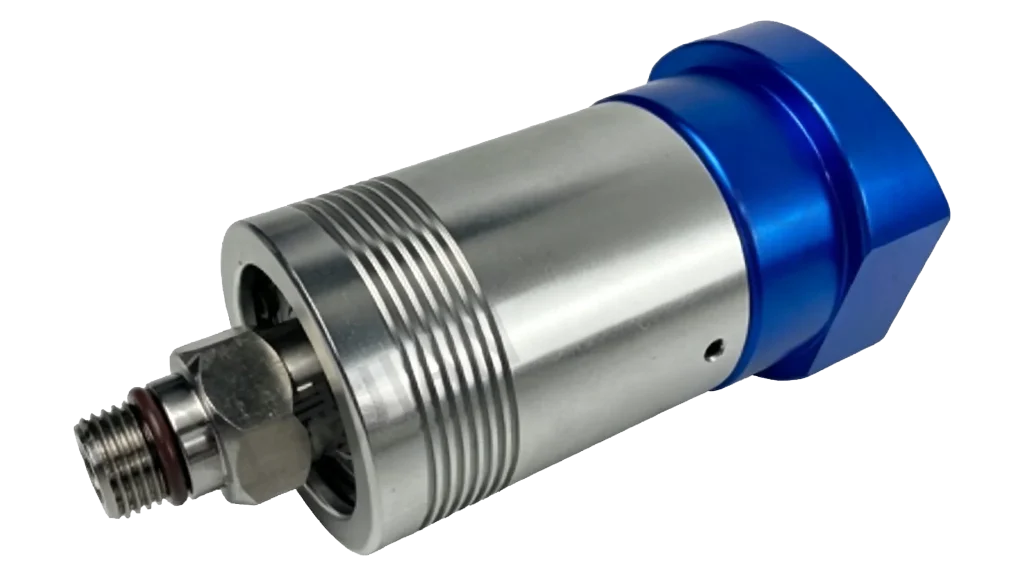

B10-1717-05L swivel unions

B10-1717-05L is a B-series high-speed, dry running rotary joint designed specifically for machine tool spindle coolant/air transmission. It supports automatic separation and wear prevention of the sealing surface when there is no flow. ‌‌

Deep hole gun drilling machine spindle center water outlet rotary joint
Doosan machining center fixture machining center, 50 special rotary joint
SD rotary joint is a rotating mechanical sealing device used to transport and remove heat transfer media for fixed pipelines and rotating drums. The heat transfer media used in rotary joints include steam, water, heat transfer oil, hydraulic oil, and coolant. Machining center fixture tooling
SD’s A-series rotary joint is a high-performance, high-precision rotary joint used for passing coolant, water, air, and hydraulic oil. A-series rotary joints are commonly used in the machine tool industry, such as automatic lines, deep hole drills (gun drills), main 50 special rotary joint machining centers, shafts, drilling machines, milling machines, rotary indexing workbenches, machine tools, CNC machining centers, grinders, presses, clutches, and so on. The A-series rotary joint is a product developed by SD Company based on decades of experience in mechanical seal design and application. Through in-depth research on sealing surface and load optimization, sealing wear characteristics, and application, it is designed for the machine tool industry.
This rotary joint can meet demanding working conditions

In the fast-paced world of industrial machining, operational efficiency relies heavily on the reliability of your machine components. At the heart of many high-performance manufacturing setups is the Roto B10-1717-05L high-speed rotary joint. Specifically engineered to handle demanding rotational speeds, this component is essential for maintaining seamless fluid transfer systems for CNC spindles. Let’s explore what makes the roto b10-1717-05l rotary joint a standout choice and how you can maximize its lifespan.

Key Features and Performance Metrics

When reviewing industrial rotary joint performance specifications, the B10-1717-05L model excels due to its engineered precision. One of its most significant advantages is a balanced seal design for low torque, which minimizes friction during intense operation. This specialized design ensures precision coolant delivery for machining centers without placing unnecessary strain on the spindle motor.

Furthermore, when comparing high-speed union flow rates and evaluating the pressure ratings for rotating hydraulic couplings, this rotary joint consistently delivers a stable, unrestricted flow. It handles rapid fluctuations in pressure with ease, ensuring that your machinery stays cool and lubricated during heavy-duty cutting cycles.

Material Durability and Seal Technology

The longevity of any rotary union heavily depends on its internal materials. Machinists often debate the merits of ceramic vs carbon seal rotary unions, but modern high-speed joints frequently utilize advanced compounds to get the best of both worlds. For instance, silicon carbide seal face durability offers exceptional resistance to wear, corrosion, and thermal shock. This ruggedness is absolutely critical when pumping abrasive coolants or running prolonged high-RPM cycles.

Installation and Proactive Maintenance

Proper setup is non-negotiable for longevity. Following a stringent high rpm rotary union installation guide is your first line of defense for reducing vibration in high-speed rotary applications—a leading cause of premature wear and tear.

If you want to know how to maintain high-speed mechanical seals effectively, keep these actionable tips in mind:

• Monitor Fluid Quality: Ensure your coolant is properly filtered. Micro-debris can easily scratch sensitive seal faces.
• Act on Early Warning Signs: Do not delay replacing rotary joint bearings and seals if you notice unusual noise, vibration, or a drop in fluid pressure.
• Alignment Checks: Always verify that the spindle and the joint are perfectly aligned during installation to prevent uneven wear.

Overcoming Common Operational Hurdles

Even premium components can encounter occasional issues. A common question operators ask is why do rotary joints overheat at high speeds? The culprit is usually inadequate fluid lubrication, excessive seal friction due to dry running, or mechanical misalignment.

When it comes to fixing coolant leaks in rotary joints, start by checking the seal integrity and the housing O-rings. If the leak persists, a complete rebuild kit might be necessary. Finally, troubleshooting high-speed spindle union failure requires a systematic approach: check the machine for excessive spindle runout, verify that your operating pressures match the manufacturer’s limits, and ensure the union isn’t bearing unintended external side loads.

A well-maintained Roto B10-1717-05L is a powerhouse for modern machining. By understanding its advanced materials, adhering to proper installation techniques, and performing proactive maintenance, you can protect your spindle and keep your production lines running flawlessly.
