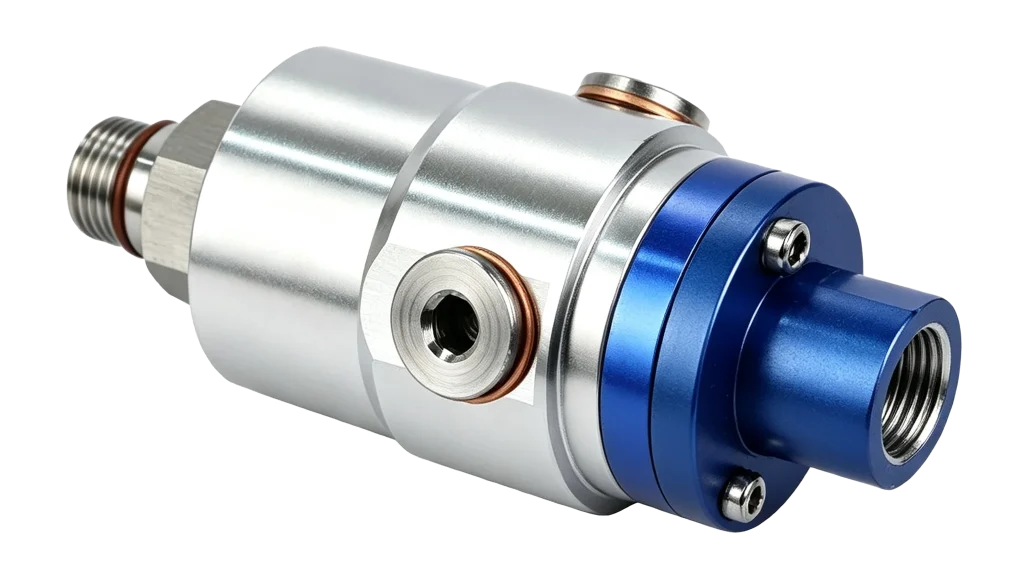

902-111-165 swivel union

902-111-165 is a 902 series “detachable” single channel rotary joint, designed specifically for coolant or micro lubrication (MQL) conditions. Its core features include support for pressure free infinite dry operation and full flow anti clogging design. ‌‌

Fluid handling systems rely on robust, highly engineered components to maintain efficiency and safety. If you work with heavy equipment, you already know that preventing hydraulic hose twisting is crucial for extending hose life and avoiding catastrophic system blowouts. This is exactly where the 902-111-165 swivel union shines. Built to handle intense mechanical stress, this specific component is a staple in fluid management, ensuring your machinery stays operational without unnecessary downtime.

Understanding High Pressure Hydraulic Rotating Joints

The processing process from raw materials to finished products is completed in one clamping, ensuring that the concentricity between the rotating shaft and the shell is within 0.005mm, effectively ensuring that the product’s runout during high-speed rotation (up to 30000 RPM) is strictly controlled; This product adopts a balanced sealing structure, and the sealing pair is made of wear-resistant tungsten carbide material. It is matched with imported high-precision bearings for more stable and vibration free operation.

At its core, a swivel joint allows for seamless fluid transfer between stationary and moving parts. When exploring fluid control solutions, professionals often debate the ideal applications for a rotary joint vs swivel union. While rotary joints handle high-speed, continuous 360-degree rotation, swivel unions like the 902-111-165 are specifically designed for oscillating movements and lower rotational speeds. They rely on advanced dynamic sealing technology to prevent leaks under extreme mechanical stress, making them ideal high pressure hydraulic rotating joints for demanding industrial environments.

Essential Installation and Specification Tips

Properly installing fluid power connectors is vital for long-term system integrity. A poor connection can lead to leaks, pressure drops, and severe safety hazards. Before securing your union fittings, keep these actionable tips in mind:

• Verify Measurements: Accurately measuring industrial port sizes with a caliper ensures a tight, leak-free seal before you begin installation.
• Check Threads: Always confirm NPT thread compatibility or other specific thread standards (like JIC or BSPP) before threading the union onto your hoses or equipment.
• Assess Pressure: Never exceed the recommended hydraulic system pressure ratings. Operating outside these engineered limits risks immediate seal blowouts.

• Maintenance, Servicing, and Troubleshooting

  Proactive heavy machinery hydraulic maintenance keeps your operation running smoothly. Even the most durable components require periodic attention. When servicing heavy duty swivel joints, you must be vigilant about spotting mechanical issues early.

  If your system experiences unexpected pressure drops or starts weeping fluid at the connection point, you might be facing an impending breakdown. Start troubleshooting swivel union failure by checking for signs of worn swivel bearings. Look out for grinding noises, excessive play in the joint, or highly stiff movement.

  If the bearings are intact but the unit continues to leak, you will need to know how to replace hydraulic swivel seals. Carefully disassemble the unit, extract the damaged O-rings or backup rings, thoroughly clean the housing, and generously lubricate the new seals before reassembly to avoid pinching them.

  Sourcing and Upgrading Your Setup

  Eventually, every mechanical part reaches the end of its operational lifespan. When looking for a replacement 902-111-165 swivel union, you have a few strategic options. Some operators prefer exact OEM replacements for guaranteed fitment, while others look into compatible hydraulic fitting alternatives that offer upgraded casing materials or enhanced corrosion resistance. Today, many industries are even transitioning toward maintenance-free rotating fluid couplings to reduce long-term labor costs and eliminate the need for routine joint lubrication.

  Maintaining the integrity of your fluid handling system starts with understanding your components. By choosing the right swivel hardware, practicing proper installation techniques, and performing regular, proactive maintenance, you can maximize operational efficiency and keep your equipment running reliably for years to come.
