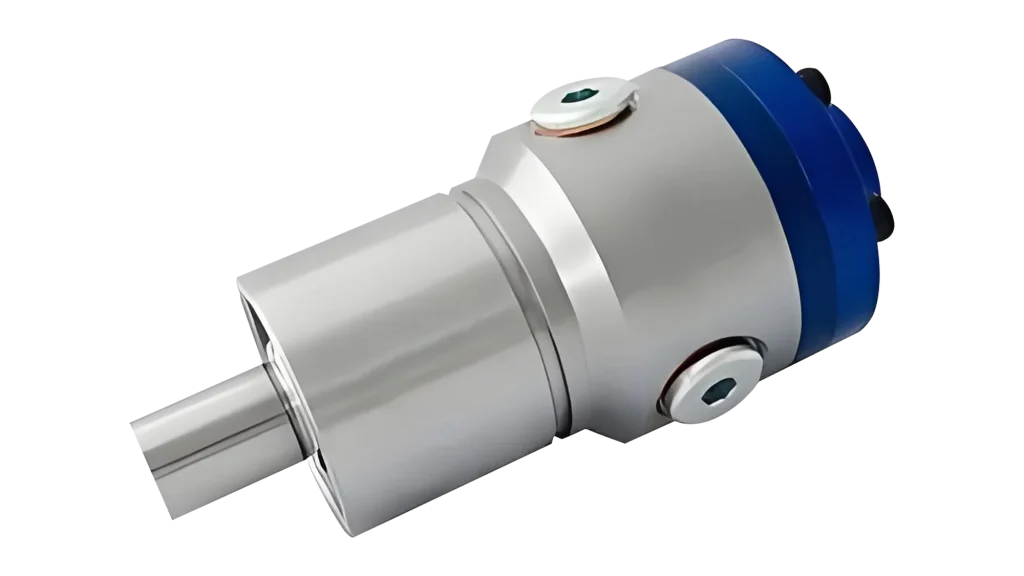

304 high-speed rotary joints

Stainless steel 304 high-speed and high-pressure rotary union is a key industrial sealing device used for continuous and sealed transmission of fluid media (such as water, hydraulic oil, steam, gas, etc.) between fixed pipelines and rotating components. This equipment uses 304 austenitic stainless steel as the main structural material, which has excellent corrosion resistance, high strength, and good processing performance. It is designed specifically to meet the dynamic sealing requirements under high-speed, high-pressure, and complex working conditions. Its core function is to solve the problem of medium leakage in rotating equipment during 360 ° unrestricted rotation, and it is widely used in fields such as steel metallurgy, hydraulic systems, paper machinery, chemical equipment, and food processing.

Place of Origin: China
Customized processing: Yes
Nominal diameter: supports customization
Whether to import: No
Connection method: flange thread
Material: Stainless steel
Scope of application: Rotating joints for mechanical engineering
Speed: 12000r/min
Temperature range: -30~+80 ℃
Pressure: 8.0MPA
Working medium: hydraulic oil, water, coolant
Non standard customized products are for personal customization. Once produced, returns and exchanges are not supported. Please carefully review or communicate with customer service before placing an order.
If there are special requirements, they can be customized. The delivery time will increase by 3-15 days and the cost will increase by 5% -50%. Most of our basic accessories are standardized, modular, and non-standard customized, which can greatly reduce costs and delivery time.
Closed sealing, automatic line or similar applications;
Full flow design, no debris or burr blockage;
Bearing support and threaded rotor, easy to install;
Deep groove radial ball bearings operate smoothly.
