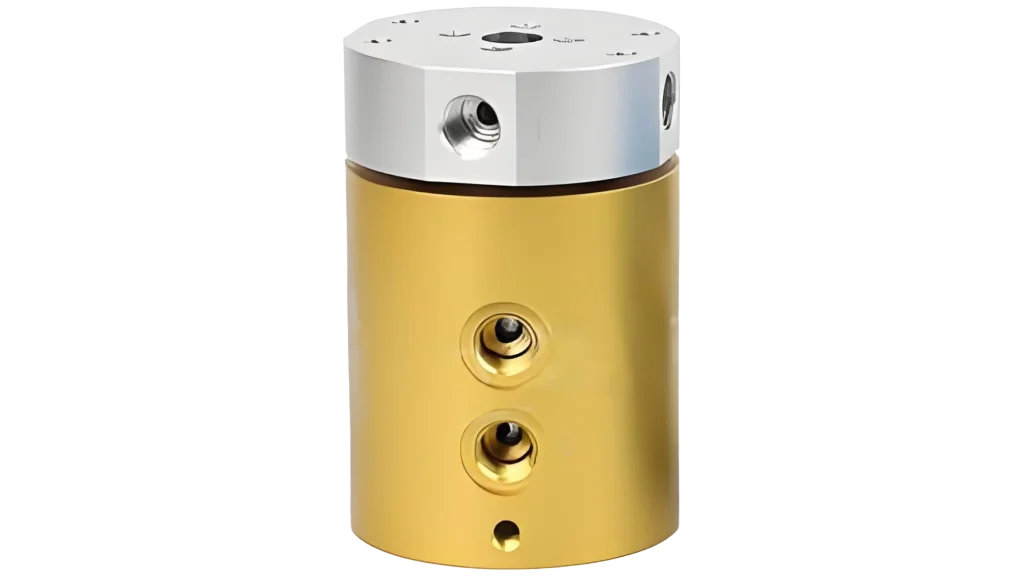

3-In-3-Out Pneumatic Rotary Joint is a precision mechanical sealing device specifically designed to solve the problem of multi-path gas transmission between rotating components and fixed gas sources
3-In-3-Out Pneumatic Rotary Joint is a precision mechanical sealing device specifically designed to solve the problem of multi-path gas transmission between rotating components and fixed gas sources. This device allows unrestricted and continuous multi-channel airflow transport of media between stationary pipelines and rotating components, and is widely used in automation equipment that requires simultaneous control of multiple pneumatic actions.
Function: Two pneumatic rotary joints can simultaneously transmit media such as compressed air, vacuum hydrogen, nitrogen, and chemical mixtures during 360 degree rotation
Gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages and other media are transported separately without interfering with each other
Features: The product adopts a whole system design, fully imported high-precision bearing support, dynamic rotation zero leakage seal, ultra long service life, ultra-low torque,
The rotational torque is stable and not affected by changes in supply pressure and temperature during operation, and the rotational force is also not affected after long-term storage
Supporting threaded interfaces: M5 (4-6mm trachea), G1/8 (6-8mm trachea), G1/4 (8-10mm trachea), G3/8 (10-12mm trachea)
There are various threading methods such as G1/2 (12-14mm trachea), G3/4 (14-18mm trachea), G1 “(18-24mm trachea), etc
Supports hybrid power lines, signal lines, Ethernet, industrial buses, control lines, solenoid valves, induction lines, etc
The product is applied in various automation industries, food industry, paper industry, CNC machine tool industry, printing industry, semiconductor industry, military industry
Food industry, plastic molding and other equipment industries
A rotary joint is a sealing device that connects stationary pipelines and rotating equipment, achieving leak free fluid transmission under 360 ° rotation. It allows fluid media to flow smoothly between fixed pipelines and rotating machines, and is a key component in industrial equipment
