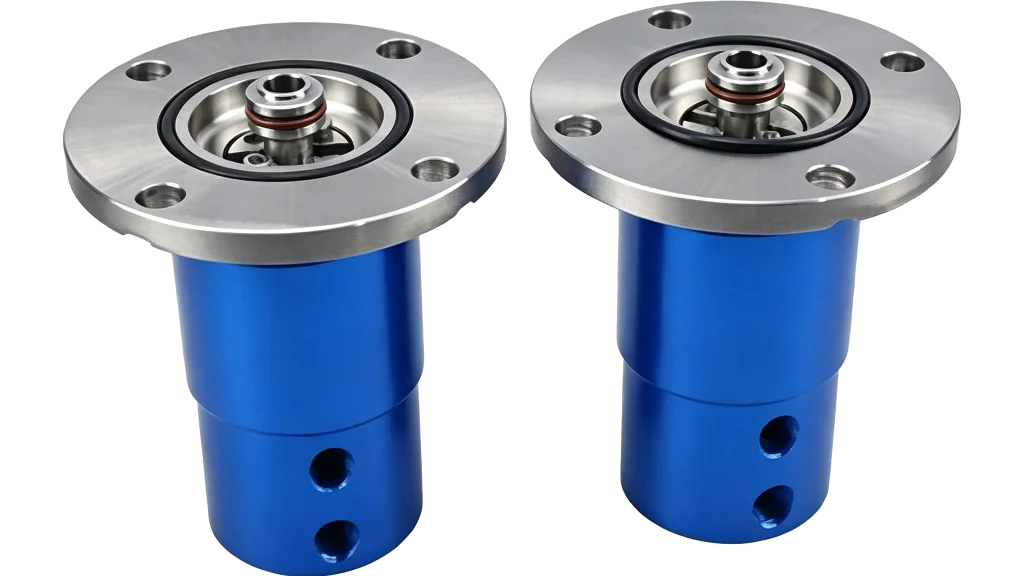

2620-042-940 swivel unions

Gas liquid dual channel high-speed rotary joint: two independent channels used for applications such as clamping and loosening
Each channel adopts a balanced mechanical seal, which can extend the service life and reduce torque even under high pressure
A closed sealing ring can continuously accommodate the medium
Double precision ball bearings, running smoothly
Maze system can protect ball bearings

Maintaining reliable fluid connections in rotating equipment requires precision-engineered components. The 2620-042-940 swivel union is a highly robust hydraulic swivel union designed to handle demanding industrial environments. Whether you are upgrading an existing system or performing routine repairs, understanding the nuances of this specific component is crucial for achieving peak performance and eliminating costly downtime.

Key Specifications and Applications

To truly appreciate its value, one must look at the NSN 2620-042-940 technical specifications. Built for rigorous environments, this unit is a common recommendation in almost any heavy-duty swivel joint application guide.

If you are conducting a rotary joint vs swivel union comparison, it helps to know their distinct advantages. While rotary joints are often preferred for continuous high-speed rotation, swivel unions like the 2620-042-940 excel in high-pressure, slow-rotation, or oscillating movements.

When selecting the right swivel union for hydraulics, operators must verify mechanical seal compatibility for industrial fluids. Using the correct seal materials guarantees safe operation, especially when dealing with abrasive hydraulic oils or harsh chemical mixtures. Engineers often ask: what are the benefits of balanced pressure seals? Simply put, they significantly reduce internal friction regardless of fluid pressure, lowering rotational resistance and dramatically extending the component’s service life.

Installation and Performance Optimization

Proper setup is non-negotiable. Following a standardized industrial rotary union installation guide ensures you do not inadvertently damage the unit during mounting. Keep these critical metrics in mind for optimal performance:

• Determining flow capacity of rotary unions: Always ensure your system’s flow rate matches the 2620-042-940’s internal bore size to prevent fluid turbulence and pressure drops.
• Maximum torque ratings for hydraulic swivels: Never exceed the specified rotational torque, as excessive force can severely damage the internal bearings and housing.
• Environmental factors affecting swivel joint lifespan: Extreme ambient temperatures, airborne debris, and corrosive atmospheres can degrade exterior components. Use protective boots or shields if operating in harsh conditions.

Consistent high-pressure fluid transfer system maintenance is the absolute best method for preventing premature wear in rotary connections. Routine inspections keep small issues from becoming catastrophic failures.

Troubleshooting and Repairs

Even top-tier components occasionally require service. Knowing how to troubleshoot hydraulic swivel leaks saves significant maintenance time. Begin by inspecting the outer housing for hairline cracks and checking the integrity of the connection threads. If fluid is dripping directly from the weep hole, the internal seals have likely bypassed.

Here are the basic steps for replacing swivel union internal seals:

1. Depressurize and completely drain the fluid lines.
2. Carefully disassemble the housing, taking note of the exact orientation of the worn seals.
3. Clean all internal surfaces, ensuring there is no scoring on the rotating shaft.
4. Install the fresh seals using a compatible assembly lubricant to prevent tearing.
5. Reassemble the unit and run a low-pressure test before returning it to full service.

If the internal shaft is damaged beyond repair, consulting a cross reference for industrial swivel part numbers will help you source an exact drop-in replacement rapidly.

The 2620-042-940 swivel union is a powerhouse component that keeps complex machinery moving smoothly. By adhering to strict installation guidelines and prioritizing proactive maintenance, you can

maximize the lifespan of your hydraulic systems and keep your fluid transfer processes efficient.

Gas liquid dual channel high-speed rotary joint: two independent channels used for applications such as clamping and loosening
Each channel adopts a balanced mechanical seal, which can extend the service life and reduce torque even under high pressure
A closed sealing ring can continuously accommodate the medium
Double precision ball bearings, running smoothly
Maze system can protect ball bearings
