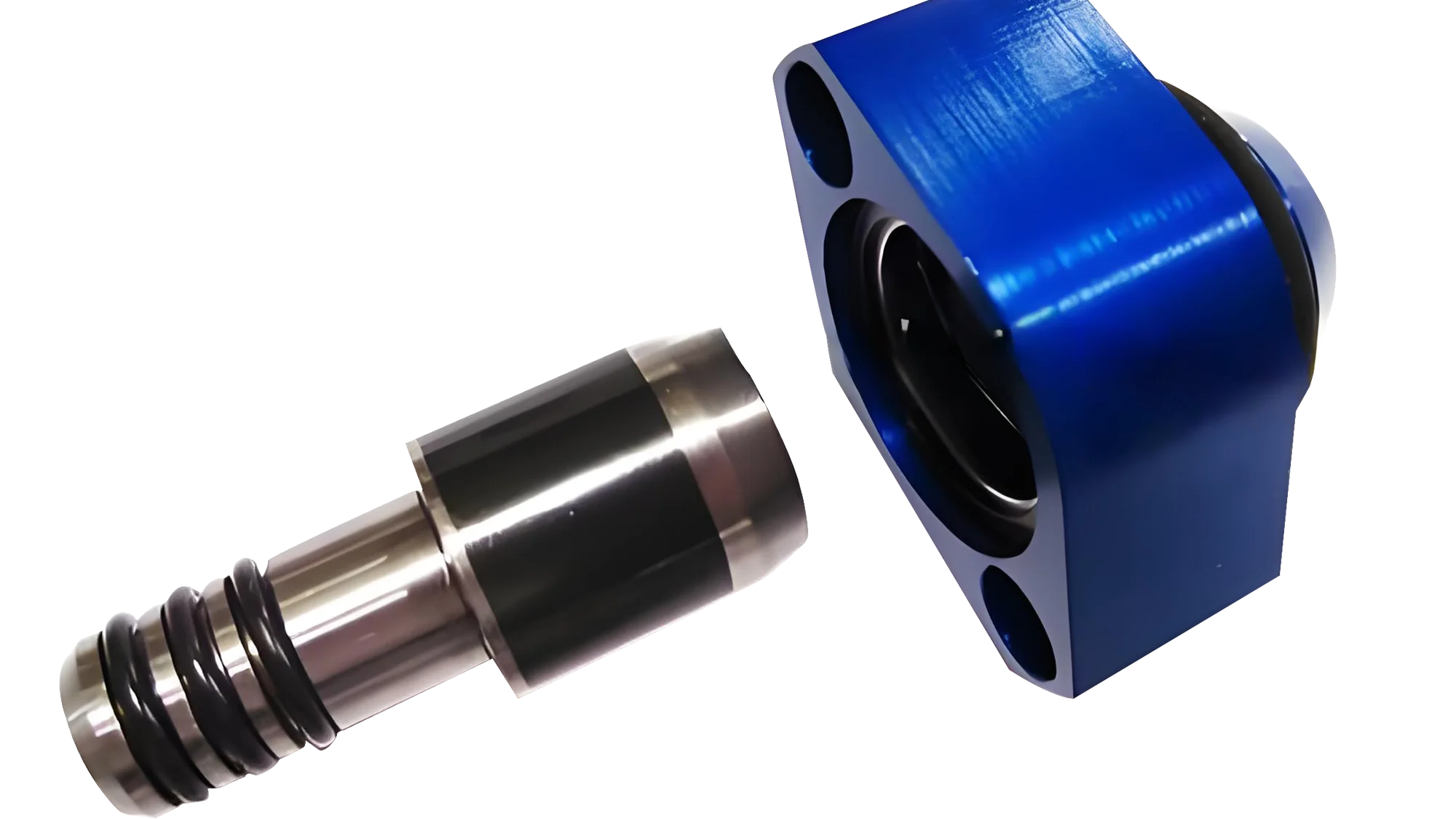

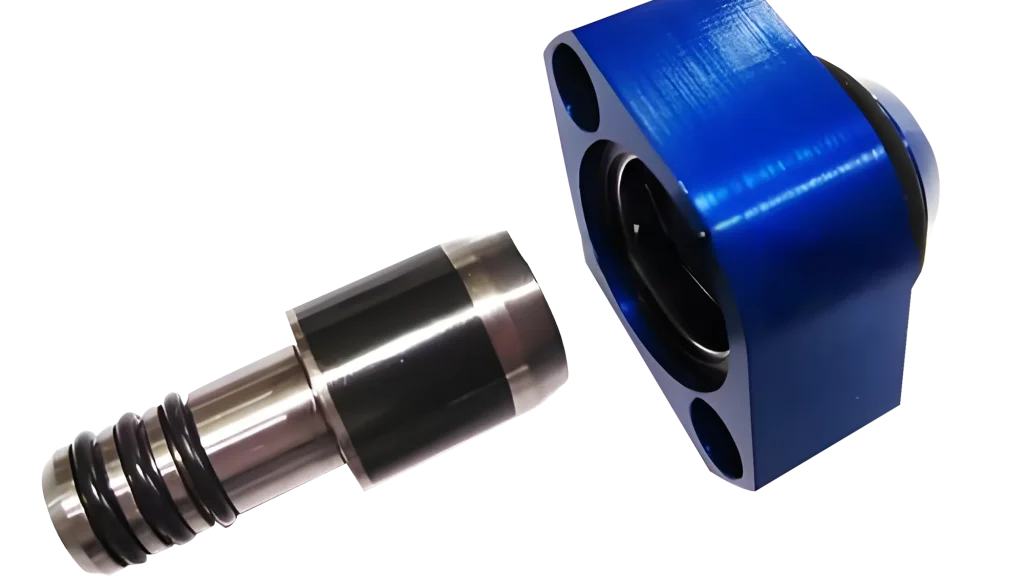

1121-269-851 rotary joints

1121-269-851 rotary joint is a high-speed rotary joint designed specifically for high-precision and high-speed machining environments. This equipment is mainly used in CNC machine tools, machining centers, and automated production lines, responsible for stably conveying media such as coolant, compressed air, or hydraulic oil from fixed pipelines to the high-speed rotating spindle or tool interior

Non standard customized products are for personal customization. Once produced, returns and exchanges are not supported. Please carefully review or communicate with customer service before placing an order.
If there are special requirements, they can be customized. The delivery time will increase by 3-15 days and the cost will increase by 5% -50%. Most of our basic accessories are standardized, modular, and non-standard customized, which can greatly reduce costs and delivery time.
Speed: 12000r/min
Temperature range: -30~+80 ℃
Pressure: 3.0MPA
Working medium: hydraulic oil, water, coolant
It can operate at high speed without any medium, thanks to the automatic closing sealing device;
Silicon carbide seal: can work for a long time under harsh conditions
Stainless steel rotors can prevent rust, corrosion, cold and heat
