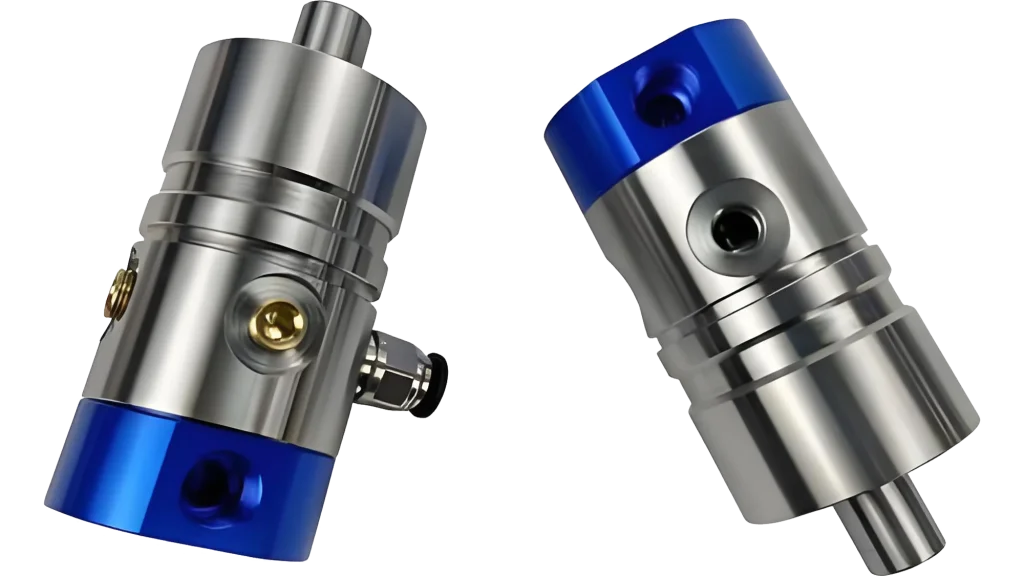

1111-002-105 high-speed rotary joints

1111-002-105 rotary joint is a high-speed single channel rotary joint designed specifically for high-precision machine tool machining. This model belongs to the Deublin 1109/111 series and adopts a Bore Mounted design. It is mainly used for conveying water-based coolant or micro lubrication (MQL) media. Its core advantage lies in its “Pop Off” function, which allows unrestricted dry operation without medium pressure, effectively preventing leakage problems during tool replacement

Place of Origin: China
Model: SD 1111-002-105
Customized processing: Yes
Whether to import: No
Scope of application: Machine tool processing
Connection form: Thread
Material: Stainless steel
Pressure: 8.0MPA
Temperature: 80 ℃
Media: hydraulic oil, water, coolant
Oil mist: 10 bar
Non standard customized products are for personal customization. Once produced, returns and exchanges are not supported. Please carefully review or communicate with customer service before placing an order.
If there are special requirements, they can be customized. The delivery time will increase by 3-15 days and the cost will increase by 5% -50%. Most of our basic accessories are standardized, modular, and non-standard customized, which can greatly reduce costs and delivery time.
High speed spindle center water outlet rotary joint: a fluid medium conveying product developed using a “detachable seal” structure, deep hole machining, and automation control applications. Its function is to transfer fluid (gas or liquid) medium from a relatively stationary pipeline to rotating components. The processing process from raw materials to finished products is completed in one clamping, ensuring that the concentricity between the rotating shaft and the shell is within 0.005mm, effectively ensuring that the product’s runout during high-speed rotation (up to 30000 RPM) is strictly controlled; This product adopts a balanced sealing structure, and the sealing pair is made of wear-resistant tungsten carbide material. It is matched with imported high-precision bearings for more stable and vibration free operation.
