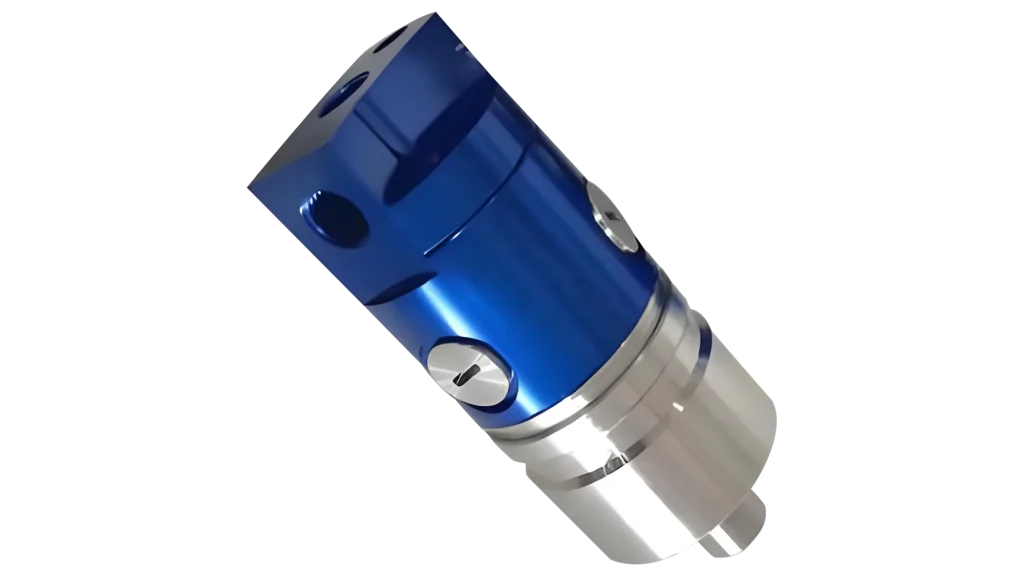

1109-842-730 swivel unions

The 1109-842-730 rotary joint is a high-performance high-speed rotary joint, belonging to the hole installation type center outlet joint in the 1109 series. This product is designed to achieve stable transmission of fluid media (such as coolant, air, etc.) under high-speed rotation conditions, and is widely used in precision machining, CNC machine tools, and automation equipment.

Model: SD1109-842-730
Place of Origin: China
Material: Stainless steel
Customized processing: Yes
Whether to import: No
Installation form: flange thread
Material: Stainless steel
Temperature resistance: 71 ℃
Voltage resistance: 14MPA
Scope of application: Rotating joints for mechanical engineering
Non standard customized products are for personal customization. Once produced, returns and exchanges are not supported. Please carefully review or communicate with customer service before placing an order.
If there are special requirements, they can be customized. The delivery time will increase by 3-15 days and the cost will increase by 5% -50%. Most of our basic accessories are standardized, modular, and non-standard customized, which can greatly reduce costs and delivery time.
Working parameters:
Medium: water-based coolant
High speed 20000min-120000rpm
This joint adopts a bearing structure and features Dublin’s proprietary “disengagement” design. Its unique elastic diaphragm allows it to “disengage” the sealing surface when there is no cooling pressure, and then return to the closed state after pressure is restored.
Performance characteristics:
Single channel, coolant or MQL;
Detaching M technology can achieve unrestricted dry operation without mass pressure;
Full flow design, no debris or burr blockage;
Bearing support and threaded rotor, easy to install;
Double ABEC7 (ISOP4 grade) angular contact ball bearings;
Adopting labyrinth seal and large leakage port to protect ball bearings;
Balanced mechanical seal, made of silicon carbide material, can extend its service life even under harsh working conditions;
Anti corrosion anodized aluminum shell.
