1005-000-049 swivel unions

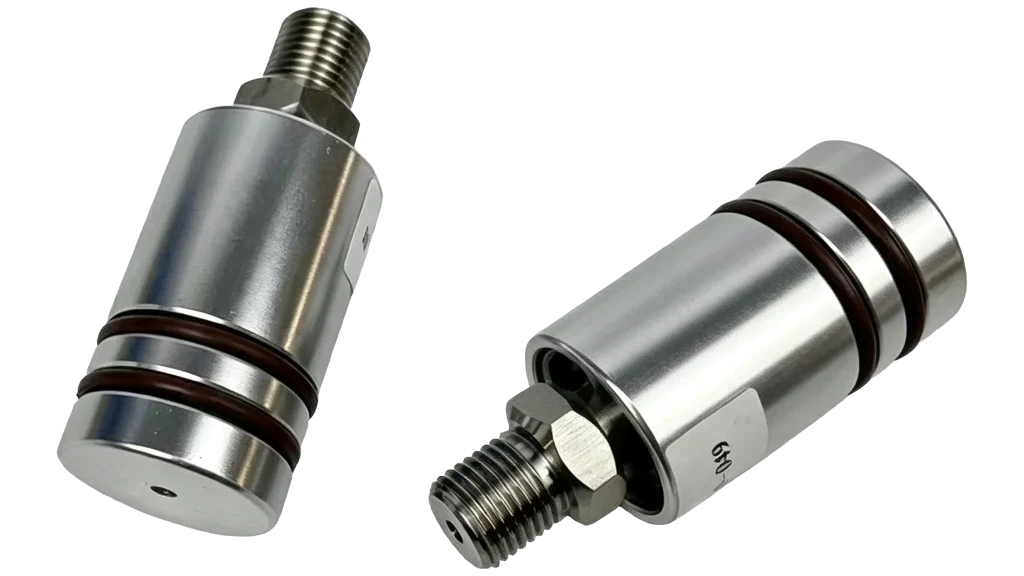

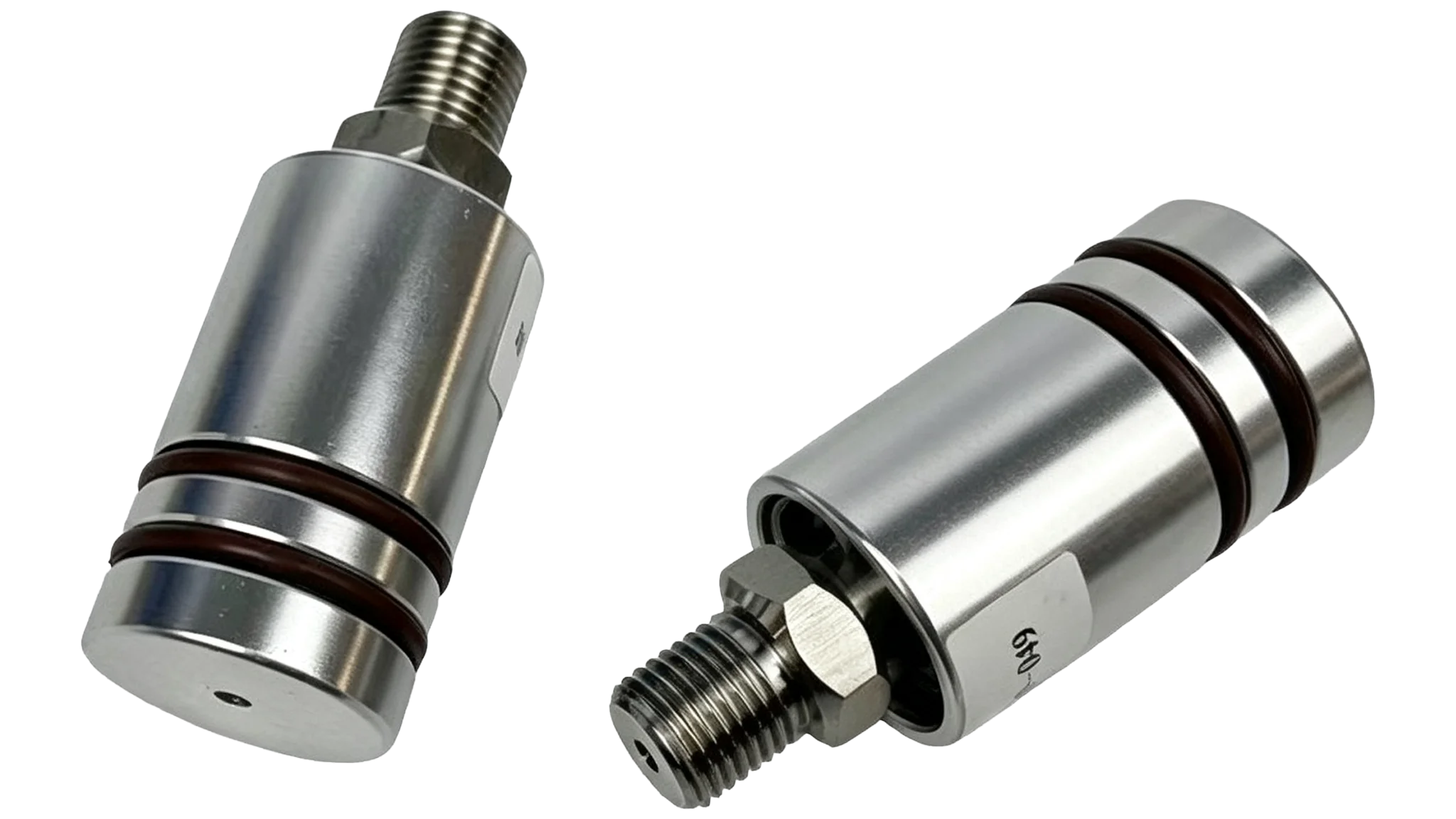

1005-000-049 rotary joint is a shaft mounted multi-path rotary joint designed specifically for air and hydraulic oil media. It adopts a 1/4 “BSP right-hand threaded interface and is suitable for heavy machinery hydraulic systems installed in narrow spaces. ‌‌

The core advantage of the 1005-000-049 rotary joint is to solve the problem of fluid transmission in confined spaces. It usually contains independent flow channels inside, allowing hydraulic oil and air to pass through the rotating interface simultaneously or independently, preventing medium mixing. Commonly found in the rotating parts of engineering machinery turntables, it delivers pressure oil/gas from fixed pump stations to rotating actuators (such as motors and oil cylinders) while withstanding the impact and vibration during equipment operation. ‌‌

When it comes to maintaining seamless fluid transfer in high-demand industrial environments, the 1005-000-049 rotary joint stands out as a true engineering marvel. Whether you are managing cooling water, steam, or thermal oil, relying on top-tier rotary joint suppliers ensures your production equipment runs smoothly without costly interruptions. Let’s dive into the core features, maintenance strategies, and operational guidelines for this essential industrial component.

Core Specifications and Design Features

To maximize manufacturing efficiency, facility managers must understand their equipment’s exact capabilities. The impressive high speed coolant union specifications of the 1005-000-049 model make it ideal for demanding, continuous-duty tasks. When evaluating your facility’s setup, comparing single flow and dual flow designs is a crucial first step. Single flow models handle straightforward media transfer into a machine, while dual flow designs excel as part of complex machinery roller cooling system components, allowing media to enter and exit through the exact same joint.

This specific joint boasts a corrosion resistant industrial union housing, extending its operational lifespan significantly, even in harsh, moisture-heavy environments. Furthermore, equipment operators must strictly observe the specific pressure ratings for heavy duty unions and respect the maximum operating temperature for precision joints to prevent catastrophic seal blowouts. Thanks to advanced balanced mechanical seal technology, the 1005-000-049 minimizes internal friction and adapts dynamically to sudden fluid pressure fluctuations.

Proactive Installation and Maintenance

A successful, leak-free deployment always starts with closely following a precise industrial rotary union installation guide. Proper alignment during setup is the most effective method for preventing premature bearing wear in unions and maintaining optimal torque in rotating connections. If the joint is installed with undue stress on the hoses or housing, mechanical failure will happen rapidly.

To keep your fluid transfer system running perfectly, incorporate these best practices for hydraulic swivel maintenance:

• Routine Inspections: Regularly check your connections for excess vibrations or unusual grinding noises. This is critical for identifying signs of rotary union failure early on.
• Address Leaks Immediately: When troubleshooting leaking fluid transfer joints, always inspect the internal seal faces for scoring, microscopic cracks, or abrasive debris build-up.
• Execute Proper Part Swaps: Knowing exactly how to replace industrial swivel seals saves hours of unplanned downtime. Specifically, mastering a carbon graphite seal ring replacement ensures a tight, highly durable seal without accidentally damaging the surrounding metal rotor.

Maximizing the Lifespan of Your Swivel Joints

Even the most robust mechanical equipment requires active, preventative care. If you notice a drop in fluid pressure or unexpected thermal spikes, act fast. Replacing internal bearings and O-rings before they completely disintegrate will protect your overall machinery investment. Always source your replacement components, as well as your next 1005-000-049 rotary joint, from vetted manufacturers who provide comprehensive warranties and dedicated technical support.

Ultimately, optimizing your industrial fluid transfer systems does not have to be a headache. By understanding mechanical limits, leveraging modern sealing technologies, and sticking to a rigorous maintenance schedule, you can keep your factory machinery running at peak performance for years to come.
