machining center rotary joints
High pressure rotary joint for CNC machining center, rated speed 3000r/min, 21MPa, suitable for hydraulic oil, working temp -20℃~+80℃. Precision rotary union for spindle hydraulic transmission, leak-proof, stable for high-speed machine tool operation.
- mediumHydraulic oil/compressed air
- Operating Temperature-20--+80℃
- work pressure21MPa
- maximum speed3000r/min
machining center rotary joints
Overview
The machining center rotating joint (also called rotary union) is a precision fluid transmission component installed on the spindle of CNC machining centers. It realizes continuous delivery of hydraulic oil from the stationary pipeline to the rotating spindle without hose twisting, which is essential for spindle hydraulic power and clamping control.
Product Features
1. 2-4 independent channels, static pressure independent bearing design;
2. The shell is made of hard aluminum alloy, which is lightweight and has good heat dissipation;
3. The rotating core shaft is treated with alloy steel and hardened;

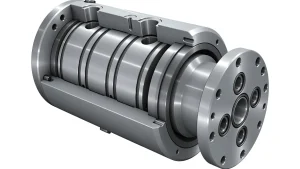

4. Maze type gap sealing structure, suitable for high-speed and high-pressure working conditions;
5. Unique drainage hole design to prevent leakage to the external environment;
2. The shell is made of hard aluminum alloy, which is lightweight and has good heat dissipation;
3. The rotating core shaft is treated with alloy steel and hardened;
4. Maze type gap sealing structure, suitable for high-speed and high-pressure working conditions;
5. Unique drainage hole design to prevent leakage to the external environment;
| Parameter | Specification |
|---|---|
| Rotational Speed | 3000 r/min |
| Working Pressure | 21 MPa |
| Operating Temperature | −20 ℃ ~ +80 ℃ |
| Working Medium | Hydraulic Oil |
