BT50 specialized rotary joint
BT50 special rotary joint for machine tool spindle. High-speed rotary union delivers coolant through BT50 spindle. Stable sealing, long service life, suitable for CNC lathe and machining center through-coolant spindle.
- mediumCoolant, water, air, hydraulic oil
- work pressure10MPA
- maximum speed15000r/min
BT50 specialized rotary joint
Product Introduction

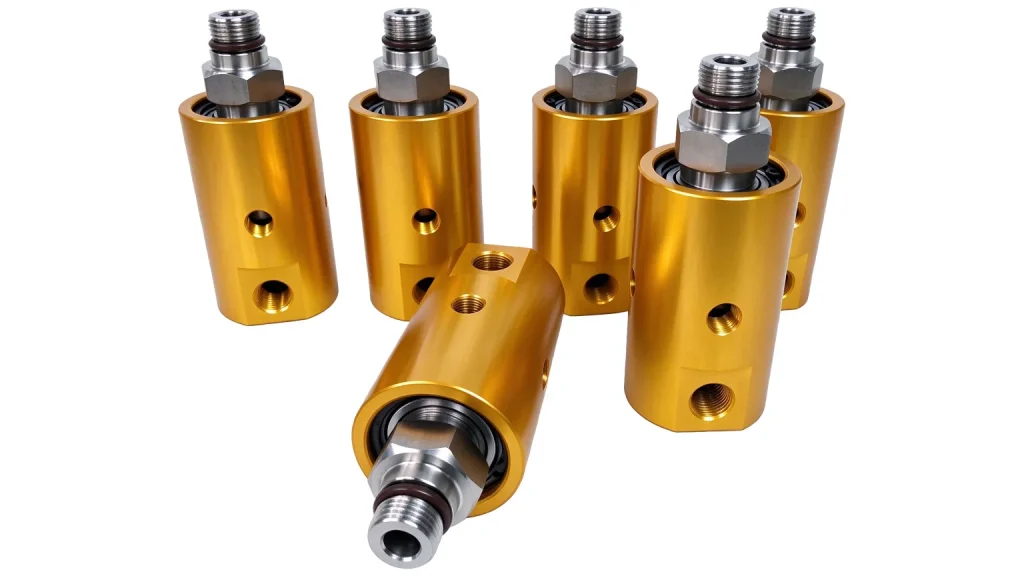

BT50 specialized rotary joint is a dedicated rotary union designed for BT50 spindle of CNC machining centers and CNC lathes. It is installed at the rear end of BT50 spindle to realize 360° continuous rotation while transferring cutting coolant, oil or compressed air into the through-hole spindle, supporting internal coolant supply for deep hole drilling, high-speed milling and hard cutting.
The main body adopts lightweight high-strength aluminum alloy with precision machined matching surfaces. The built-in high-performance wear-resistant sealing assembly ensures stable sealing under high-speed rotation, effectively reducing leakage. It is precisely matched with BT50 spindle interface, easy to install and replace without complex modification to the machine tool.
Deep hole gun drilling machine spindle center water outlet rotary joint
Water outlet Doosan machining center Doosan machining center machining center fixture machining center, 50 special rotary joint
SD rotary joint is a rotating mechanical sealing device used to transport and remove heat transfer media for fixed pipelines and rotating drums. The heat transfer media used in rotary joints include steam, water, heat transfer oil, hydraulic oil, and coolant. Machining center fixture tooling
SD’s A-series rotary joint is a high-performance, high-precision rotary joint used for passing coolant, water, air, and hydraulic oil. A-series rotary joints are commonly used in the machine tool industry, such as automatic lines, deep hole drills (gun drills), main 50 special rotary joint machining centers, shafts, drilling machines, milling machines, rotary indexing workbenches, machine tools, CNC machining centers, grinders, presses, clutches, and so on. The A-series rotary joint is a product developed by SD Company based on decades of experience in mechanical seal design and application. Through in-depth research on sealing surface and load optimization, sealing wear characteristics, and application, it is designed for the machine tool industry.
This rotary joint can meet demanding working conditions
Water outlet Doosan machining center Doosan machining center machining center fixture machining center, 50 special rotary joint
SD rotary joint is a rotating mechanical sealing device used to transport and remove heat transfer media for fixed pipelines and rotating drums. The heat transfer media used in rotary joints include steam, water, heat transfer oil, hydraulic oil, and coolant. Machining center fixture tooling
SD’s A-series rotary joint is a high-performance, high-precision rotary joint used for passing coolant, water, air, and hydraulic oil. A-series rotary joints are commonly used in the machine tool industry, such as automatic lines, deep hole drills (gun drills), main 50 special rotary joint machining centers, shafts, drilling machines, milling machines, rotary indexing workbenches, machine tools, CNC machining centers, grinders, presses, clutches, and so on. The A-series rotary joint is a product developed by SD Company based on decades of experience in mechanical seal design and application. Through in-depth research on sealing surface and load optimization, sealing wear characteristics, and application, it is designed for the machine tool industry.
This rotary joint can meet demanding working conditions
Product features:
- BT50 Spindle Special Matching: Custom interface structure, directly compatible with BT50 through-coolant spindle of machining centers.
- High-speed & Low-leakage Performance: Specially optimized dynamic seal, stable operation under high rotating speed, minimal coolant leakage.
- Wide Applicable Medium: Can deliver cutting fluid, cooling oil and compressed air, meets multiple machine tool processing demands.
- Compact & Durable Structure: Lightweight alloy housing, low friction torque, long service life, convenient for daily maintenance.
- Easy Installation: Simple assembly at spindle tail, quick replacement, reduces machine downtime.
Technical Parameters:
|
Technical Item
|
Specification
|
|---|---|
|
Maximum Rotation Speed
|
Within 15000 r/min
|
|
Maximum Working Pressure
|
10 MPa
|
|
Applicable Media
|
Coolant, water, compressed air, hydraulic oil
|
|
Applicable Equipment
|
Doosan CNC machining center & machine tools with BT50 spindle
|
|
Service Life
|
Stable long-term operation, service life up to several years
|
|
Working Performance
|
Reliable operation for various working conditions, no leakage, high-speed stable rotation
|
