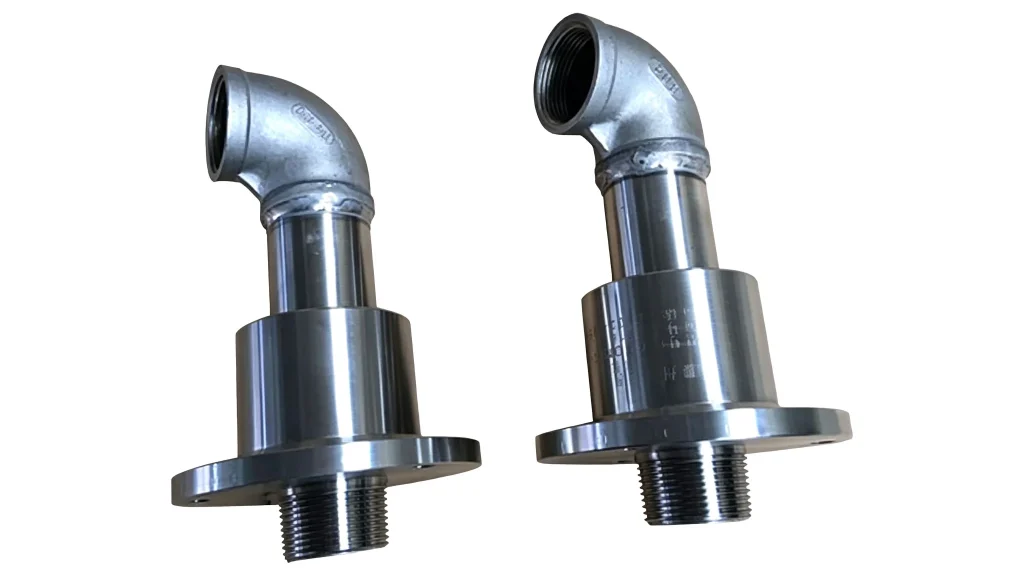

High pressure car washing machine rotary joint
The high-pressure car washing machine rotary joint is simply a connecting piece that allows the high-pressure water pipe to rotate freely 360 °. Its core function is to prevent the water pipe from getting tangled or knotted, making it more flexible during car washing
- Operating Temperature100℃
- work pressure20MPA
- maximum speed100r/min
High pressure car washing machine rotary joint
High pressure car washing machine rotary joint, High pressure car washing machine rotary joints, High pressure car washing machine rotary union, High pressure car washing machine rotary unions, High pressure car washing machine swivel union, High pressure car washing machine swivel unions, High pressure car washing machine swivel joint, High pressure car washing machine swivel joints
Product Overview
The high pressure car washing machine rotary joint is a critical rotating seal component that transfers high-pressure water or cleaning fluid from a stationary supply line into a continuously rotating spray arm or wash boom. In automatic car wash systems, every rotating nozzle assembly depends on a rotary joint that can withstand extreme pressure, constant motion, and chemically aggressive detergents without leaking or seizing.
With more than a decade of manufacturing experience in rotary joint and hydraulic slip ring technology, our engineering team designs each high pressure car washing machine rotary joint around three core principles: zero external leakage, low and stable torque, and long maintenance-free service life under daily wash cycles.
Key Features & Engineering Advantages
Leak-Free Sealing System
Balanced mechanical seals with tungsten carbide or silicon carbide faces maintain a tight seal at pressures up to 250 bar, even under pressure pulsation from piston pumps.
Corrosion-Resistant Construction
SS304/SS316 stainless steel housings resist detergents, wax, and reclaimed water, extending service life in harsh car wash environments.
Low Breakaway Torque
Precision bearing arrangements reduce rotational resistance, allowing spray arms to spin smoothly at low flow without motor overload.
High-Speed Capability
Dynamic balancing supports rotation speeds up to 300 rpm, matching the demands of modern touchless and tunnel car wash machines.
Easy Maintenance
Replaceable seal kits and cartridge designs minimize downtime; most units can be serviced on site in under 30 minutes.
Custom Configurations
Thread, flange, bore size, and multi-channel options are engineered to order for OEM car wash equipment builders.
Technical Parameters
Standard specifications of our high pressure car washing machine rotary joint series. Custom pressure ratings, port sizes, and materials are available on request.
| Parameter | Specification |
|---|---|
| Model Series | RJ-CW100 / RJ-CW200 / RJ-CW300 |
| Max Working Pressure | 100 – 250 bar (1450 – 3625 psi) |
| Max Rotation Speed | 300 rpm |
| Flow Rate | Up to 120 L/min |
| Working Media | Water, detergent solution, wax, reclaimed water |
| Temperature Range | -20°C to +120°C |
| Port / Thread Size | G1/4″, G3/8″, G1/2″, G3/4″, G1″ (NPT optional) |
| Connection Type | Threaded, flanged, or quick-coupling |
| Number of Channels | 1 – 4 passages |
| Housing Material | Stainless steel SS304 / SS316, carbon steel (nickel-plated) |
| Seal Material | Tungsten carbide, silicon carbide, PTFE, Viton®-grade FKM |
| Bearing Type | Dual deep-groove ball bearings / needle bearings |
| Breakaway Torque | ≤ 1.5 N·m |
| Service Life | ≥ 1,000,000 rotation cycles (typical) |
| Mounting Orientation | Any position (horizontal / vertical) |
| Certification | ISO 9001 manufacturing, CE compliant |
Industry Applications
Every high pressure car washing machine rotary joint we produce is validated on test benches simulating real wash-bay conditions. Proven application scenarios include:
- Touchless / touch-free car wash systems — rotating high-pressure spray arms and oscillating booms
- Tunnel and conveyor car wash machines — top and side rotating nozzle assemblies
- Gantry / rollover car wash equipment — wheel and underbody wash rotating lances
- Self-service wash bays — swivel hose connections and ceiling booms
- Truck and bus wash systems — large-bore rotary joints for high-flow rotating brushes and spray rings
- Underbody chassis wash systems — in-ground rotating nozzle platforms
Application Solutions
For Car Wash Equipment OEMs
We co-develop the rotary joint with your mechanical design team, matching port positions, envelope dimensions, and torque requirements to your spray arm geometry — reducing prototype cycles and field failures.
For Car Wash Operators & Maintenance Teams
Direct-replacement high pressure car washing machine rotary joint units with interchangeable mounting dimensions for most mainstream wash systems. Seal repair kits and exploded diagrams are supplied with every order, cutting mean repair time to minutes.
For Harsh & Reclaimed Water Environments
Optional upgraded seal packages and full SS316 construction handle recycled water with suspended solids and high-mineral content, where standard joints fail prematurely.
