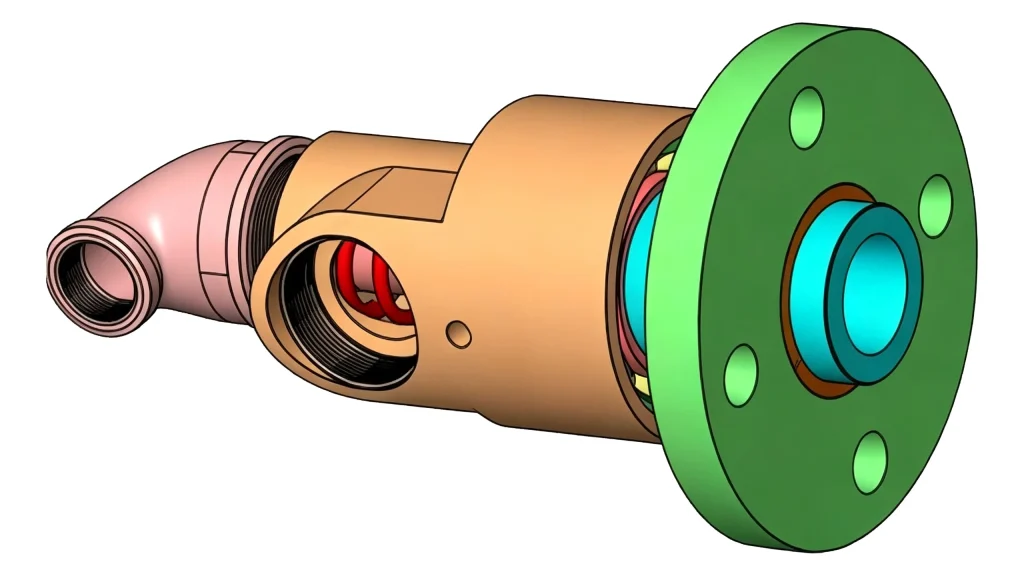

High precision rotary joint

Precision rotary joints are the core components that connect “motion” and “stillness” in industrial automation. Through high-precision mechanical structures and double sealing technology, they ensure stable and reliable medium transmission under high pressure and high speed, directly affecting equipment efficiency and safety.

Core advantage: High precision support, achieving “synchronous rotation and transmission without lag”
The core selling point of high-precision rotary joints is the “efficient transmission of fluids (gas/liquid), synchronous rotation and transmission without lagging” mentioned in the title, which can be broken down into three key advantages, each of which hits the industrial production mark
The core demand of production.
1. High precision concentric design, smooth rotation without jamming
The core highlight of high-precision rotary joints is “precise concentricity” – the internal rotating shaft and seal are precision machined, and the concentricity error can be controlled at the micrometer level, so there will be no deviation or shaking during rotation,
The frictional resistance is extremely low.
Even with high-speed rotation (some models can adapt to speeds of thousands of revolutions per minute), it can maintain smooth operation without lagging or jamming, perfectly adapting to various industrial equipment that requires high-speed rotation, such as
High speed machine tools, printing machine drums, etc.
Moreover, precise concentric design can reduce wear between components, extend the service life of rotating joints, reduce equipment maintenance costs, avoid frequent joint replacement, and reduce downtime.
2. Efficient fluid transmission, gas-liquid adaptation without pressure
The internal flow channel of the high-precision rotary joint has been optimized and designed to be smooth and unobstructed, with minimal resistance during fluid (gas or liquid) transmission, enabling efficient delivery without “transmission lag” or “insufficient flow”
The problem Whether it is compressed air, steam and other gases, or cutting fluid, lubricating oil, ink and other liquids, they can be stably transmitted and flexibly adapted to different fluid pressures and flow rates according to equipment requirements, meeting the needs of different industries
The production demand For example, in machine tool machining, high-precision rotary joints can accurately and efficiently transfer cutting fluid to the rotating spindle, timely cool the tools and workpieces, and improve machining accuracy; In new energy wind turbines, stable transmission and lubrication can be achieved
Lubricating oil ensures the smooth operation of the rotating components of the fan.
3. Excellent sealing performance, leak proof and anti-seepage more reliable
For fluid transmission, “sealing” is of utmost importance, and high-precision rotary joints achieve the ultimate in sealing performance.
It uses high-quality sealing materials (such as graphite, polytetrafluoroethylene, etc.), combined with precise sealing structure design, to achieve all-round sealing and effectively prevent fluid leakage – whether it is gas under high pressure conditions,
Even highly corrosive liquids can achieve zero leakage and zero loss, saving material costs and protecting equipment and production environment, avoiding equipment failures caused by leakage.
More importantly, the wear rate of the seal is extremely low, and even with long-term high-frequency rotation, it can maintain good sealing performance without frequent replacement of the seal, further reducing maintenance costs.
