Split type high-speed spindle rotary joint

Split type high-speed spindle rotary joint, Split type high-speed spindle rotary joints, Split type high-speed spindle rotary union, Split type high-speed spindle rotary unions, Split type high-speed spindle swivel union, Split type high-speed spindle swivel unions

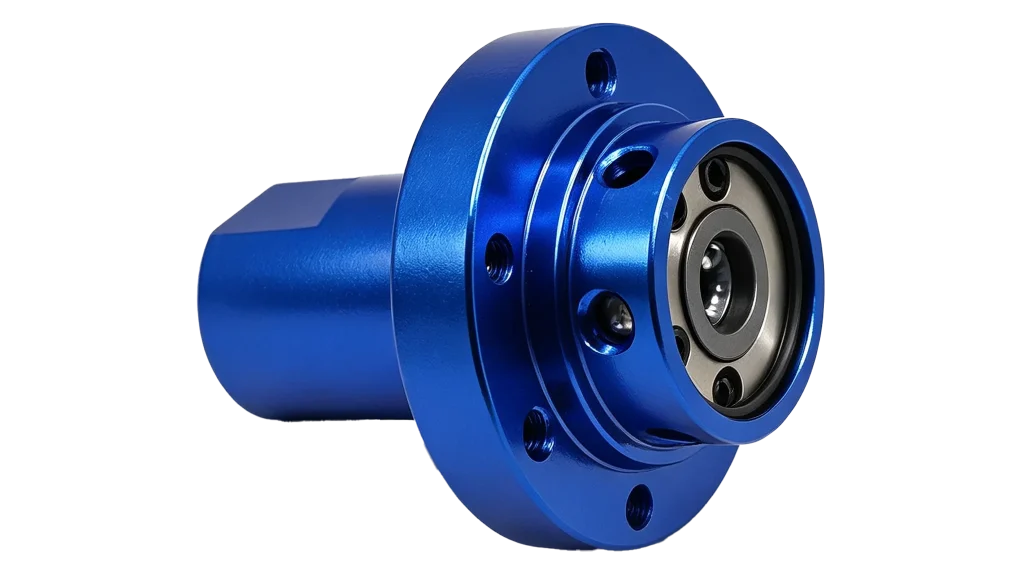

The split type high-speed spindle rotary joint is a fluid transmission sealing component designed specifically for ultra high speed machine tool spindles. It adopts a stator and rotor separation structure, which solves the dynamic balance and heat dissipation bottleneck of traditional integrated structures at high speeds. ‌‌

Structural Description
Single channel for coolant or MQL
Technology allows unlimited dry operation without medium pressure
Full flow design, unobstructed passage, avoiding residual impurities
The threaded rotor supported by bearings is easy to install
Double angle contact ball bearing
Maze structure and multiple large leakage ports to protect ball bearings
The balanced mechanical seal uses silicon carbide, which has a long service life, even under harsh operating conditions
Anodized aluminum shell for corrosion resistance
Product Description:
1. Detached sealing technology;
When there is pressure, it can be closed; when there is no pressure, it can be released for a short period of time; Dry operation”;
3. Bearing support and threaded rotor, easy to install;
4. Adopting labyrinth seal and large leakage port to protect ball bearings;
5. The shell is made of aluminum alloy, which has good heat dissipation effect at high speeds;
Speed: 15000r/min Pressure: 8.0MPA Medium: Hydraulic oil, cutting fluid
Intended use:
The rotating joints of the 902, 903, 1109, 1110, 1111, 1121, 1151, and 1129 series are designed to provide cooling lubricant to rotating tools. During periods of stillness, compressed air can usually be used
The tool fixing area for removing chips. Rotating joint design for operation at ambient temperature
Temperature and medium temperature range from 3 ° C to 3 ° C; C to high. 70° C。
Definition of media:
❑ Coolant‐ It is a lotion composed of water and oil-based additives
Cutting oil
❑MQL – Minor lubrication
For information on the working parameters and dimensions of rotary joints, please refer to
Catalog or model specific installation diagram.
The specified rotating joint design is used for non explosive environments and non flammable media.
