DN200 swivel unions

DN200 high-speed rotary joint is an industrial fluid sealing device with a nominal diameter of 200 millimeters. Its core function is to continuously and leak free transport of fixed pipeline media (such as thermal oil, water, air, etc.) to rotating equipment under high-speed conditions. ‌‌

Product Features:
Welding, flanges, threads; The internal structure of DN type rotary joint is directly supported by high-precision bearings, which can rotate back and forth or at low speed, with high wear resistance, flexible rotation, and strong support ability. The sealing element adopts imported sealing element, which is used for the movable joint of guiding fluid medium between steel pipelines. The internal part is directly supported by ball bearings, with good rotation performance, strong support force, and good wear resistance. The reciprocating swing rotary joint has a long service life and is made of special rubber material, which is not only reliable in sealing but also able to withstand high temperatures. It is widely used in industrial fields such as metallurgy, petrochemicals, ships, and papermaking.

A rotary joint is a device used to connect fixed pipelines and rotating equipment, allowing fluid to transfer between the rotating and fixed parts without leakage. In steel plant converters, rotary joints are particularly important because they can be used to cool steel ladles, ensuring the safety and efficiency of the production process.

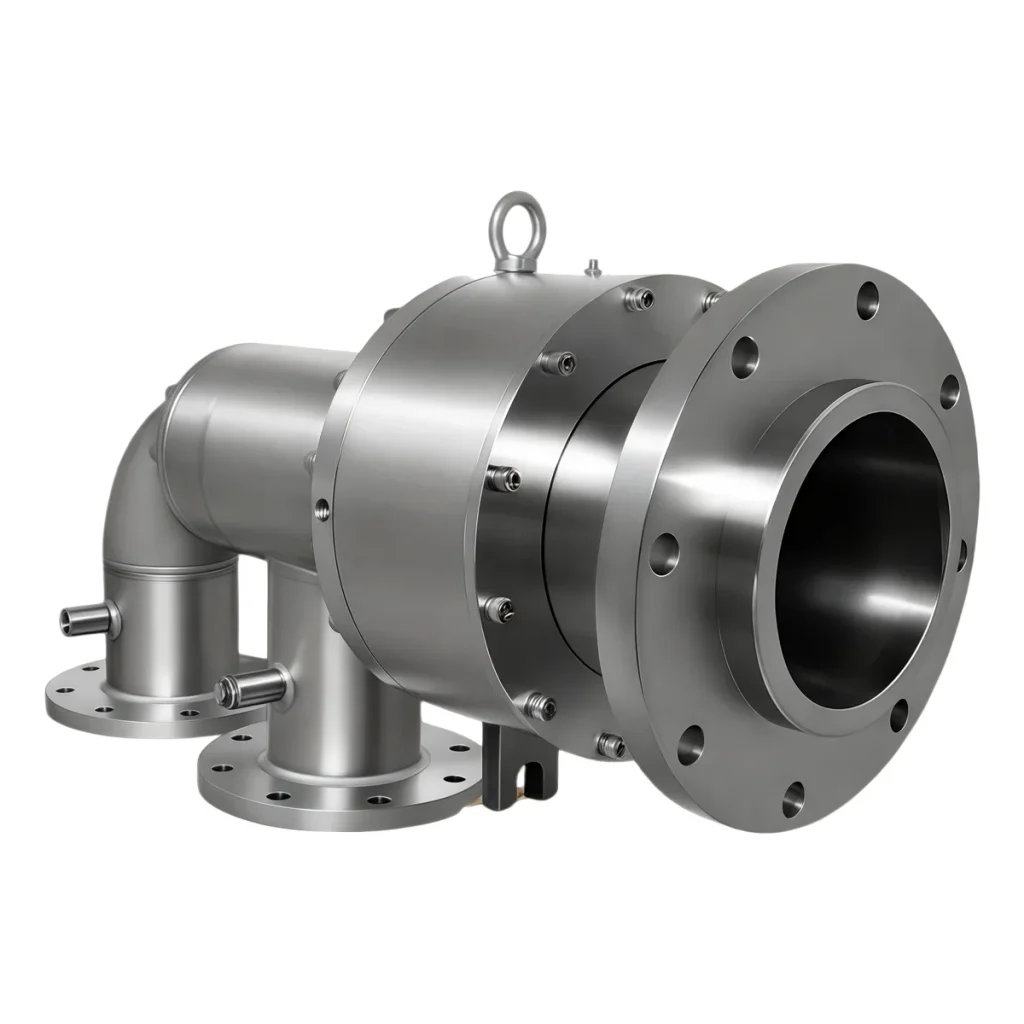

The following is an introduction to the DN200 rotary joint with dual channel one in one out cooling water dedicated rotary joint:
DN200 rotary joint: a key component of the converter cooling system in steel mills
In the process of steel production, the cooling system of the converter in the steel plant is crucial. It not only ensures the safety of the production process, but also improves production efficiency. The DN200 rotary joint, as a key component in the cooling system, provides an efficient and stable cooling solution for steel mills with its excellent performance and reliability.
Product Features:
Welding, flanges, threads; The internal structure of DN type rotary joint is directly supported by high-precision bearings, which can rotate back and forth or at low speed, with high wear resistance, flexible rotation, and strong support ability. The sealing element adopts imported sealing element, which is used for the movable joint of guiding fluid medium between steel pipelines. The internal part is directly supported by ball bearings, with good rotation performance, strong support force, and good wear resistance. The reciprocating swing rotary joint has a long service life and is made of special rubber material, which is not only reliable in sealing but also able to withstand high temperatures. It is widely used in industrial fields such as metallurgy, petrochemicals, ships, and papermaking.
1. Dual channel design: The DN200 rotary joint adopts a dual channel design, which realizes one in one out cooling water circulation, ensuring efficient flow and heat exchange of cooling water.
2. High pressure resistance performance: The joint can withstand high-pressure cooling water, ensuring stable operation in high-pressure environments.
3. Corrosion resistant materials: Made of corrosion-resistant materials that are suitable for high temperatures and corrosive gases in the steel plant environment.
4. Superior sealing performance: Advanced sealing technology is adopted to ensure no leakage during the operation of the rotary joint and maintain a clean working environment.
5. Easy maintenance: The design takes into account the convenience of maintenance, making regular inspections and maintenance simple and fast.
6. Customized services: Provide customized rotary joint solutions according to the specific needs of customers to meet special requirements under different production conditions.
Working Principle:
The DN200 rotary joint, with its dual channel design, allows cooling water to enter from one end, pass through the cooling system of the ladle, and then be discharged from the other end. This design not only improves cooling efficiency, but also reduces energy consumption.
Application Scenario:
Cooling of Steel Ladles in Steel Plant Converter
Equipment cooling in high-temperature environments
In situations where continuous rotation and fixed pipeline connections are required
Installation and maintenance:
When installing the DN200 rotary joint, it is necessary to ensure that it is correctly connected to the pipeline system and follow the manufacturer’s instructions. Regular inspection and maintenance are key to ensuring the long-term stable operation of rotary joints.
Summary:
The DN200 rotary joint has become an indispensable part of the converter cooling system in steel mills due to its high efficiency, stability, and reliability. It not only improves production efficiency but also ensures operational safety, making it an important auxiliary equipment in modern steel production.
