Through hole hydraulic rotary joint
- 工作温度100℃
- 工作压力35MPa
- 最高速度100转/分钟
Through hole hydraulic rotary joint

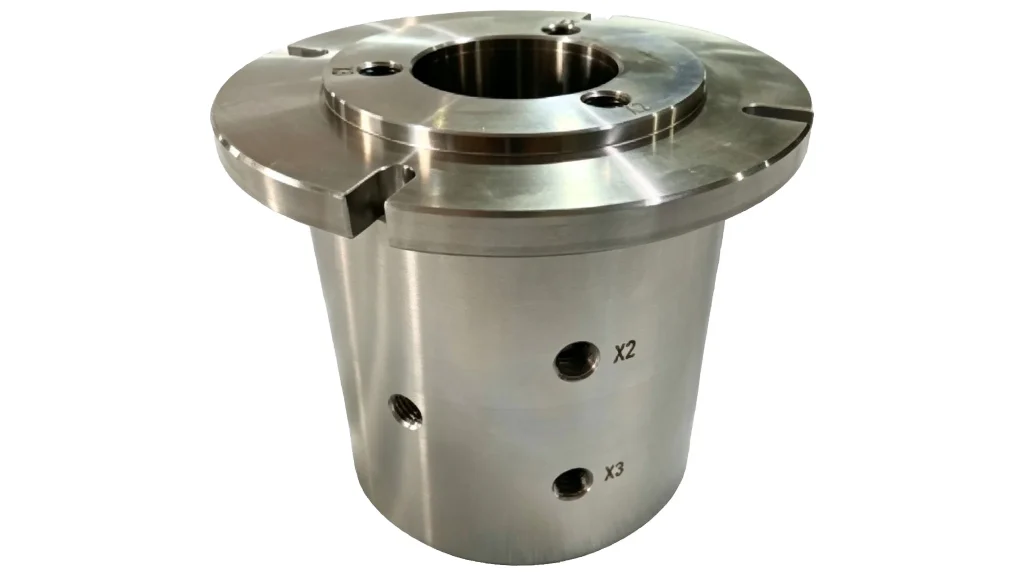

Through hole hydraulic rotary joint, center through-hole design, 360 ° continuous rotation, multiple path options, stainless steel material, high-pressure sealing without leakage, can transport hydraulic oil, cooling water, compressed air, suitable for machine tool fixtures, rotary workbenches, and automated turntables, supporting non-standard customization

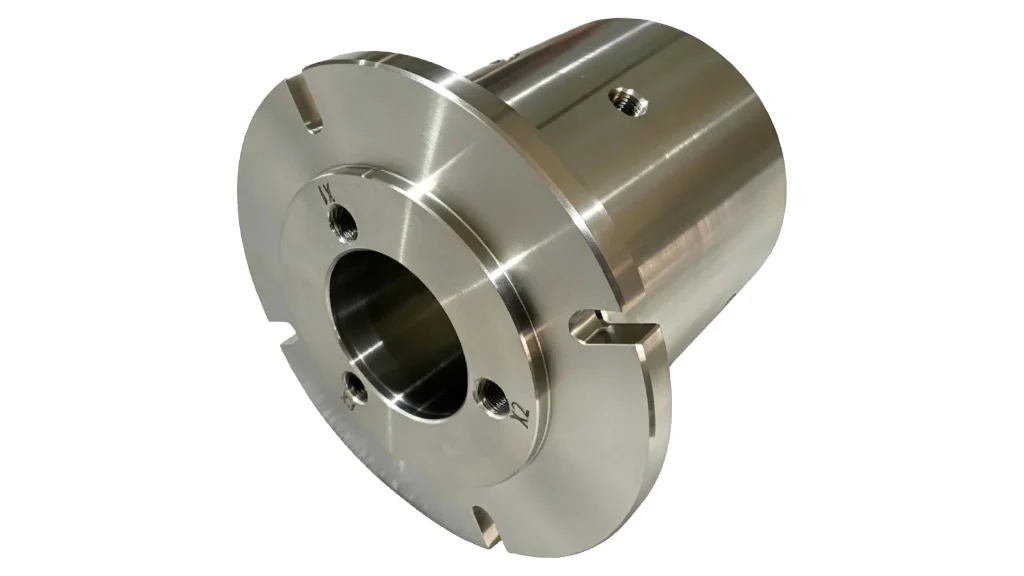

The through‑hole hydraulic rotary joint (also called hollow shaft rotary union) adopts a central through‑bore structure. It allows shafts, cables, pipelines to pass directly through the center while realizing 360° unlimited relative rotation between stationary and rotating parts. It is widely used to transmit hydraulic oil, cooling water, compressed air and other media, solves the problem of hose twisting and winding during equipment rotation. Stainless steel housing and high‑performance sealing components ensure stable operation under high pressure. Custom passages, bore diameters and flange interfaces are available for machine tools, rotary tables, automation fixtures and indexing equipment.
Main Features:
- Central through‑hole design：Hollow central bore for passing drive shaft, electric cable or air tube, compact installation space.
- 360° continuous rotation：Unlimited rotation angle, no hose torsion, avoid pipeline breakage.
- Multi‑passage optional：2/3/4/6+ oil/gas passages, can transmit multiple media at the same time.
- High‑precision sealing system：Wear‑resistant seal pairs, low leakage, long service life, low rotating torque.
- Stainless steel housing：Anti‑rust, corrosion resistant, suitable for humid and coolant environment.
- Flange mounting：Standard flange connection, easy installation and alignment.
- 可自定义：Bore size, port thread, number of passages, pressure rating can be customized.
项目 Standard Range 产品名称 Through hole hydraulic rotary joint Number of passages 2 / 3 / 4 / 6 passages (customizable) Central through hole diameter Φ20~Φ100 mm (custom bore available) Rated working pressure 0~20 MPa Max rotating speed 0~300 rpm Working temperature -20℃ ～ +120℃ -20℃ ～ +120℃
Transfer media Hydraulic oil, cooling water, compressed air Housing material 304/316 Stainless steel 密封材料 Carbon graphite + silicon carbide / PTFE Connection type Flange mounting, thread port (G/NPT) 应用 CNC rotary table, hydraulic fixture, automation index table
